Commissioning and Trial Run
‑63‑

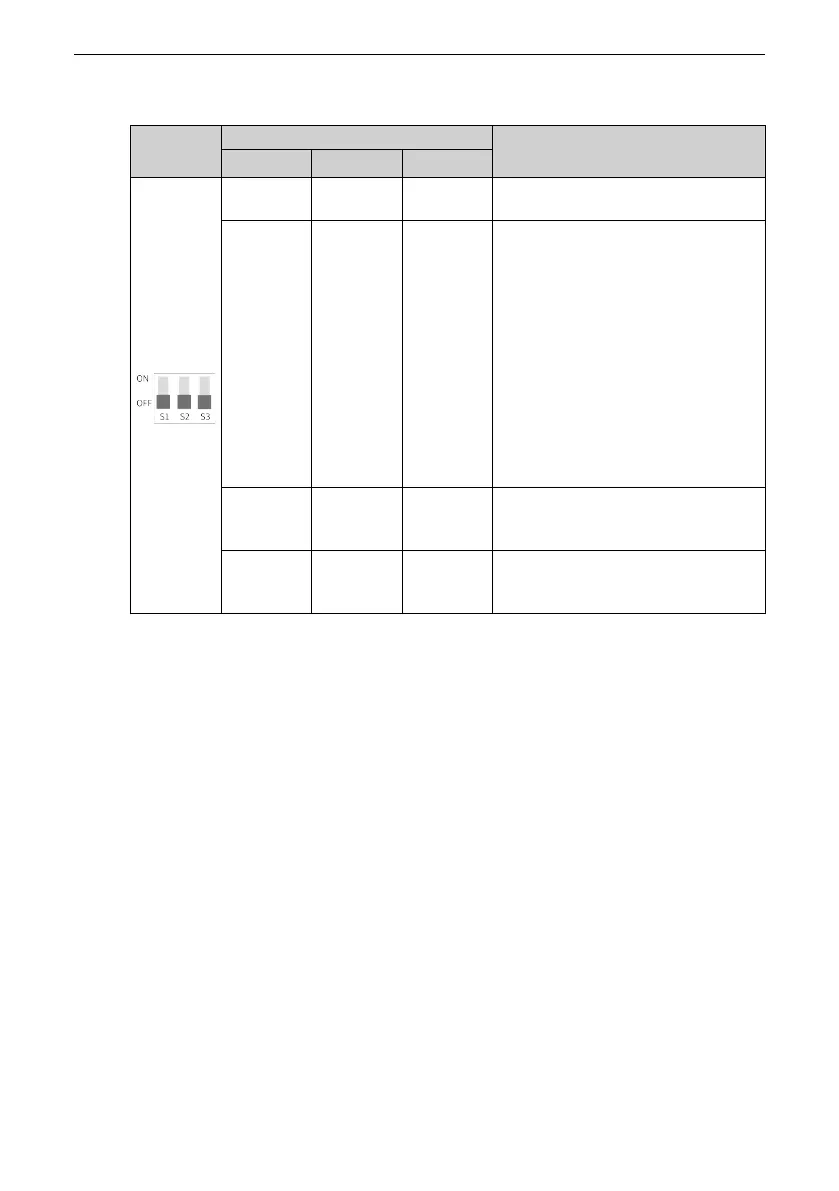

Table 2–3 Descriptions of DIP switches S1 to S3
DIP Switch
Diagram
DIP Switch Status
Function
S1 S2 S3
OFF OFF OFF
Voltage mode with the range of 0 VDC
to 10 VDC for AI2
ON OFF OFF
Temperature mode for AI2
Set the temperature sensor type
through F9‑75.
0: No temperature sensor (AI used for
analog input)
1: PT100, supporting the temperature
range of ‑25°C to +200°C
2: PT1000, supporting the
temperature range of ‑25°C to +200°C
3: KTY84‑130, supporting the
temperature range of ‑40°C to +260°C
4: PTC130, supporting the
temperature range of ‑20°C to +180°C
OFF ON OFF
Current mode for AI2; current range:
0 mA to 20 mA; input impedance: 500
Ω
OFF ON ON
Current mode for AI2; current range:
0 mA to 40 mA; input impedance: 250
Ω
S1, S2, and S3 are DIP switches used in combination. For details, see "
Table 2–3
"
on page
63
.
