Connections
En-16
Using Speakers Without Crossover Network
Connecting speakers without crossover network
provide a fine, three-dimensional sound field that
extends bass and treble performance to the fullest
extent. When speakers without crossover network are
used, the AV controller is able to drive up to a 5.1
speaker system in the main room.
Connect the front (low frequency) jacks and the
speaker’s Woofer (low) terminals, and surround back
(high frequency) jacks and the speaker’s Tweeter
(high) terminals as shown below.
You must enable “Digital Crossover” in “Speakers
Type(Front)” ( page 63) and make the settings of
Digital Processing Crossover Network
( page 66).
See your multichannel power amplifier’s instruction
manual for more information on connecting speakers.
Note
You need to make the setting before connecting the
speakers.
Important:
Speakers without crossover network are speakers with
no built-in crossover network.
With speakers without crossover network, be careful
NOT to connect tweeters and woofers the wrong way
around, as this may damage your speakers.
With speakers without crossover network, be careful
NOT to set “Speakers Type(Front)” to “Bi-Amp” as this
may damage your speakers. Make sure that this setting
is set to “Digital Crossover”.
Confirm that your speakers are without crossover
network by referring to your speaker manual.

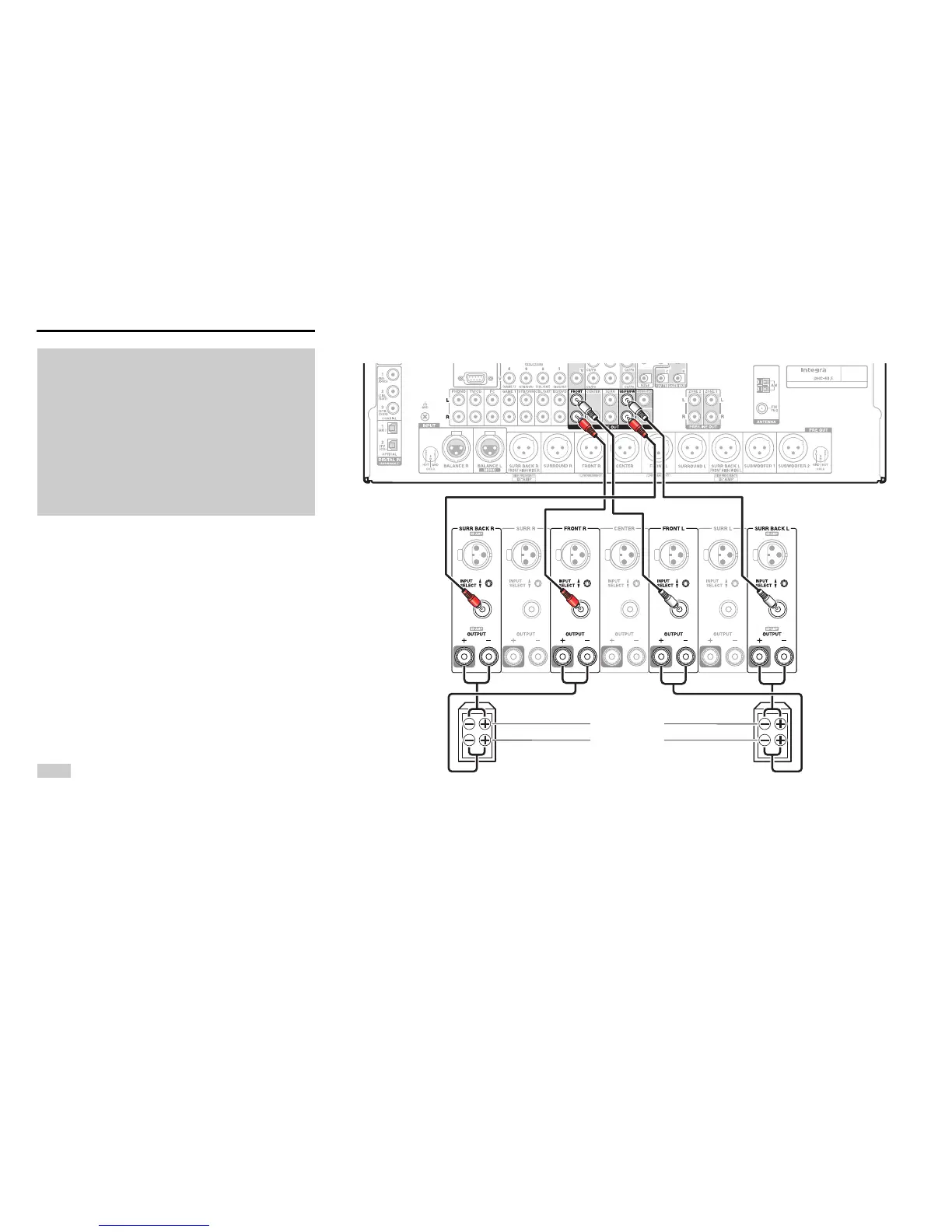

Connection via RCA Jacks
Tweeter (high)
Front right Front left
Woofer (low)
AV controller
Multichannel
power amplifier
