2.3 Operating panel

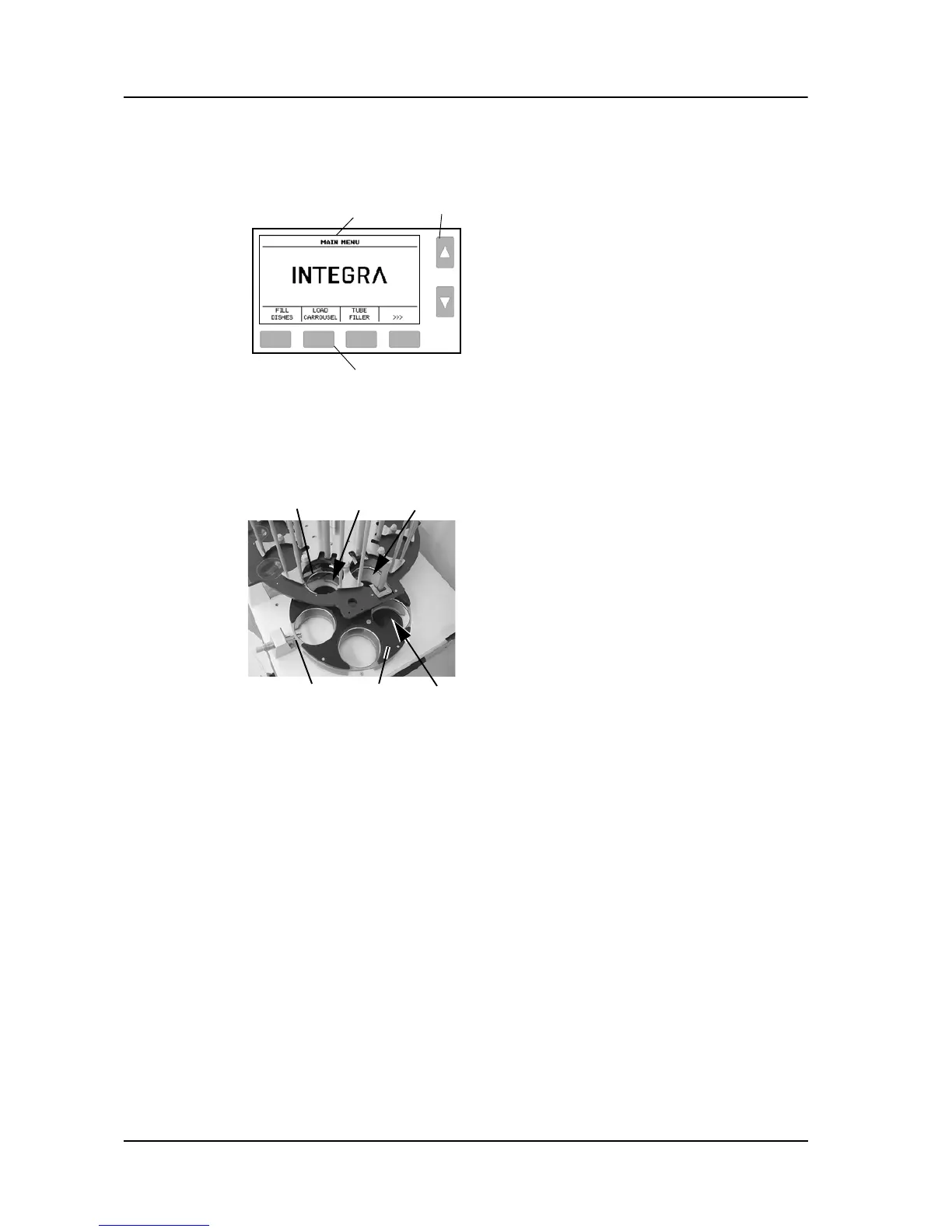

2.4 MEDIAJET in detail
12 Cooling plate (factory option)
This cooling plate, which is available as a factory option built into the base
unit, accelerates the solidification of the agar medium in the Petri dish.
13 Rotor
The rotor separates the dish lid from the bottom, and transports the dishes
from the feeder position via the filling position to the stacker position.
14 Filling nozzle
The filling nozzle is part of the tubing set and establishes contact between
the MEDIAJET and the media preparator (MEDIACLAVE). It is positioned
correctly in the device by the filling nozzle holder.
6 Graphic user surface
7 Arrow keys
8 Function keys for operation of the
MEDIAJET
6
7
8
9 UV lamp
A UV lamp for decontamination of the
filling chamber is built in and switches off
automatically when the safety cover is
open.
10 Feeder position
At this position, the Petri dishes are
transferred from the carousel into the rotor
by the feeder piston.
11 Stacker position
At this position, the stacker piston transfers
the filled Petri dishes from the rotor back
into the carousel.
