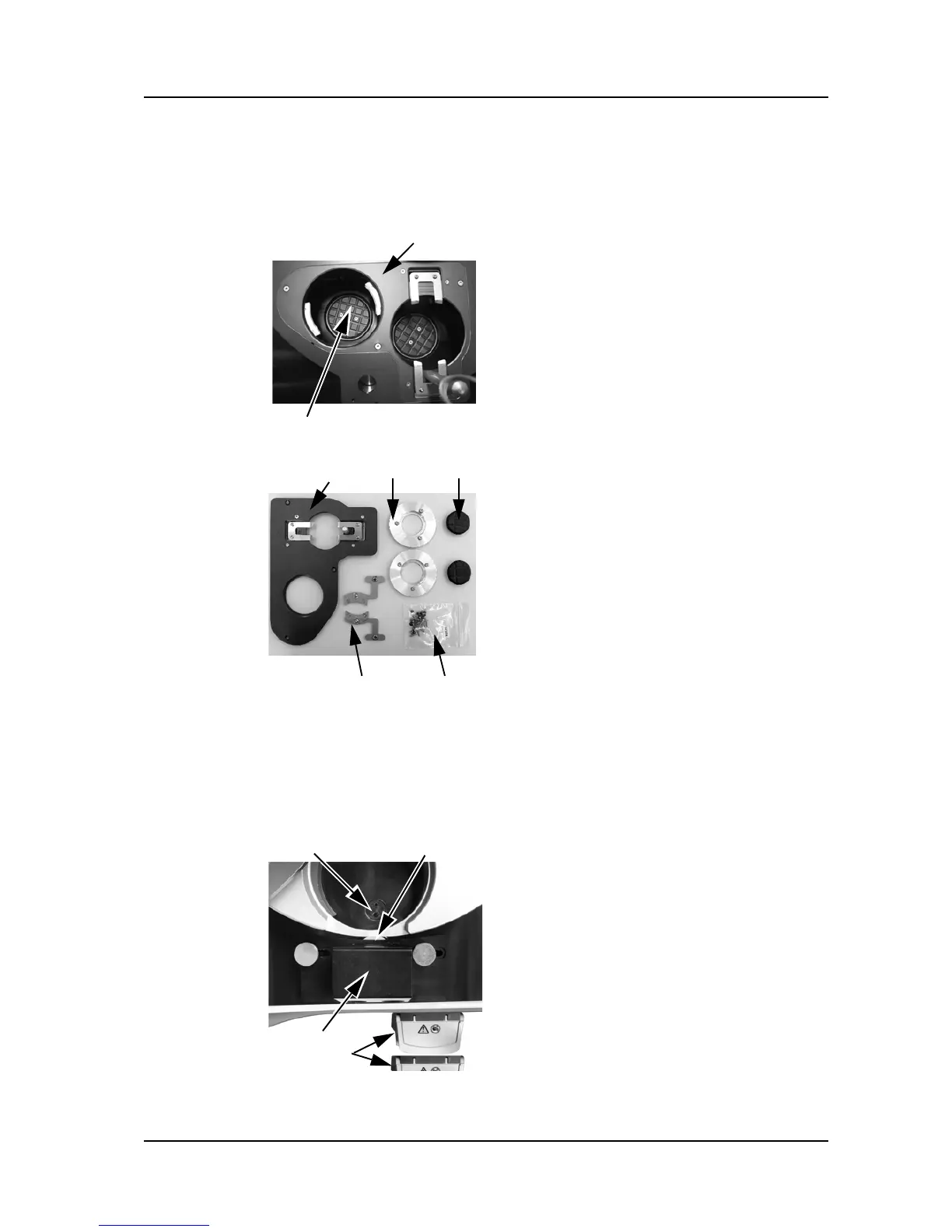

2.5 MEDIAJET vario in detail
MEDIAJET vario can be adapted to different diameters of Petri dishes, using a
conversion set.
The following parts of the conversion set can be exchanged:
The carousel, rotor and filling nozzle must also fit to the Petri dish size.
Description of MEDIAJET vario with biplate option:
The biplate option is used for filling Petri dishes with two compartments.
The following parts are specific for the biplate option.
The different parts of the conversion set are
already installed on the device.
15 Adaptation insert for Petri dishes of the
desired diameter.
16 Head plates for feeder and stacker piston
and flanges, laid underneath.
17 Adaptation insert with petri dish
guide pin.
18 Flanges for feeder and stacker.
19 Head plates for feeder and stacker
piston.
20 Extension gripper lever (applies
to conversion set for
 35 and 60
mm Petri dishes only).
21 Set of spare screws and O-rings.
22 Alignment sensor at filling
position.
23 Drive wheel for rotating the Petri
dishes.
24 Filling nozzle holder with
integrated drive wheel.
25 Double pump head.
The Safety cover has a reflector,
needed for the alignment sensor.
15
16
17 18 19
20 21
22 23
24
25
