97
Using Local Management
CHAPTER 5
Local Management

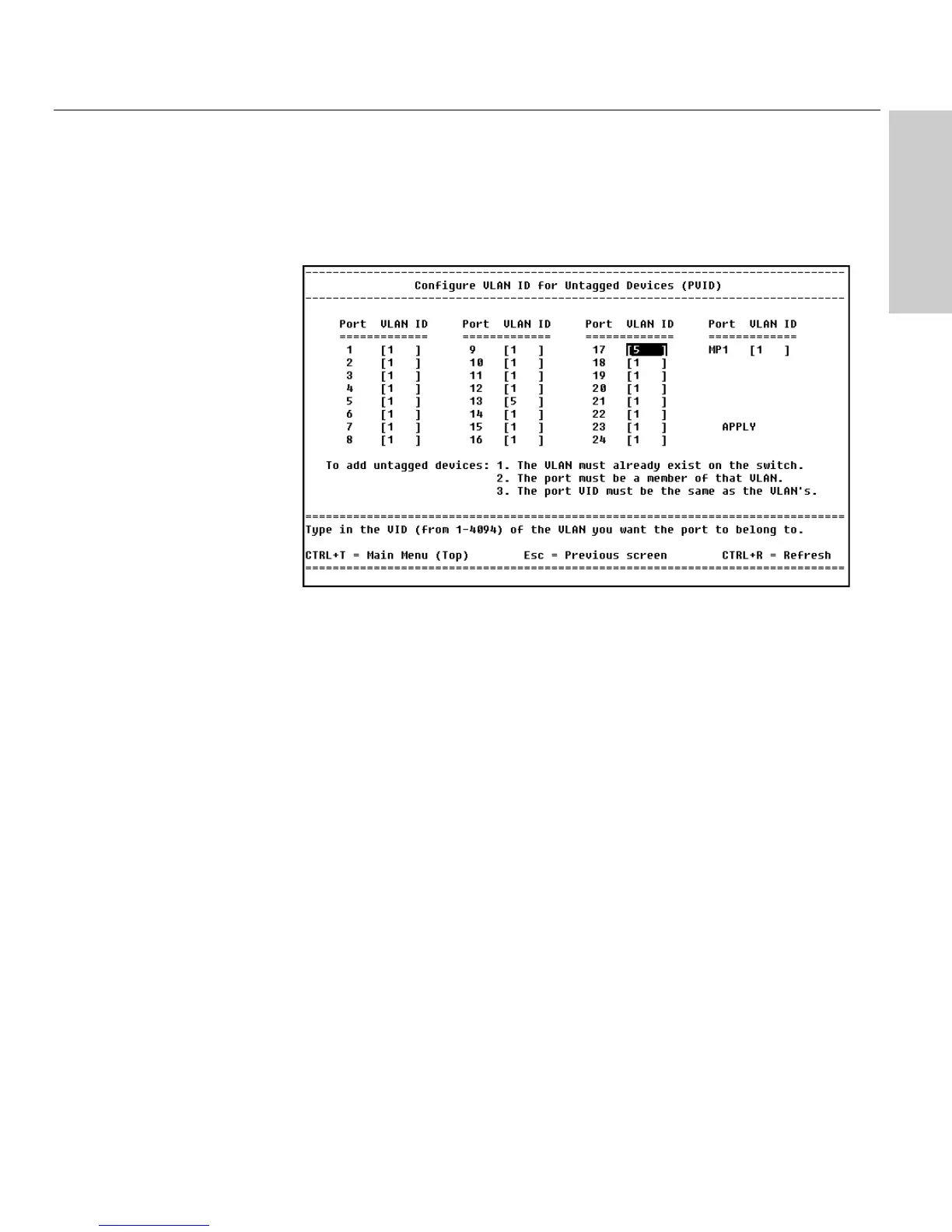

Configure PVID for Untagged/Priority
Traffic
Description
Use this screen to set up the switch to manage incoming packets that do
not contain IEEE 802.1Q VLAN tags or priority-tagged traffic (packets with
a VID of zero). This applies to ingress traffic; it does not apply to outbound
traffic.
Untagged traffic is ordinarily assigned to VLAN 1 (the DEFAULT_VLAN),
which includes all ports on the switch. However, if you want to send
untagged traffic on a port other than the default VLAN, you can assign a
different PVID.
For example, if you set a port’s PVID to 5, all untagged traffic on the port
is assigned to VID 5.
PVID: Sets the PVID for untagged devices. This is used for incoming
traffic from an untagged device.
APPLY: Applies changes on this page.
LOCATION
Main Menu
Configure VLAN
Configure PVID for...
