Local Management
Port Traffic Statistics
Description

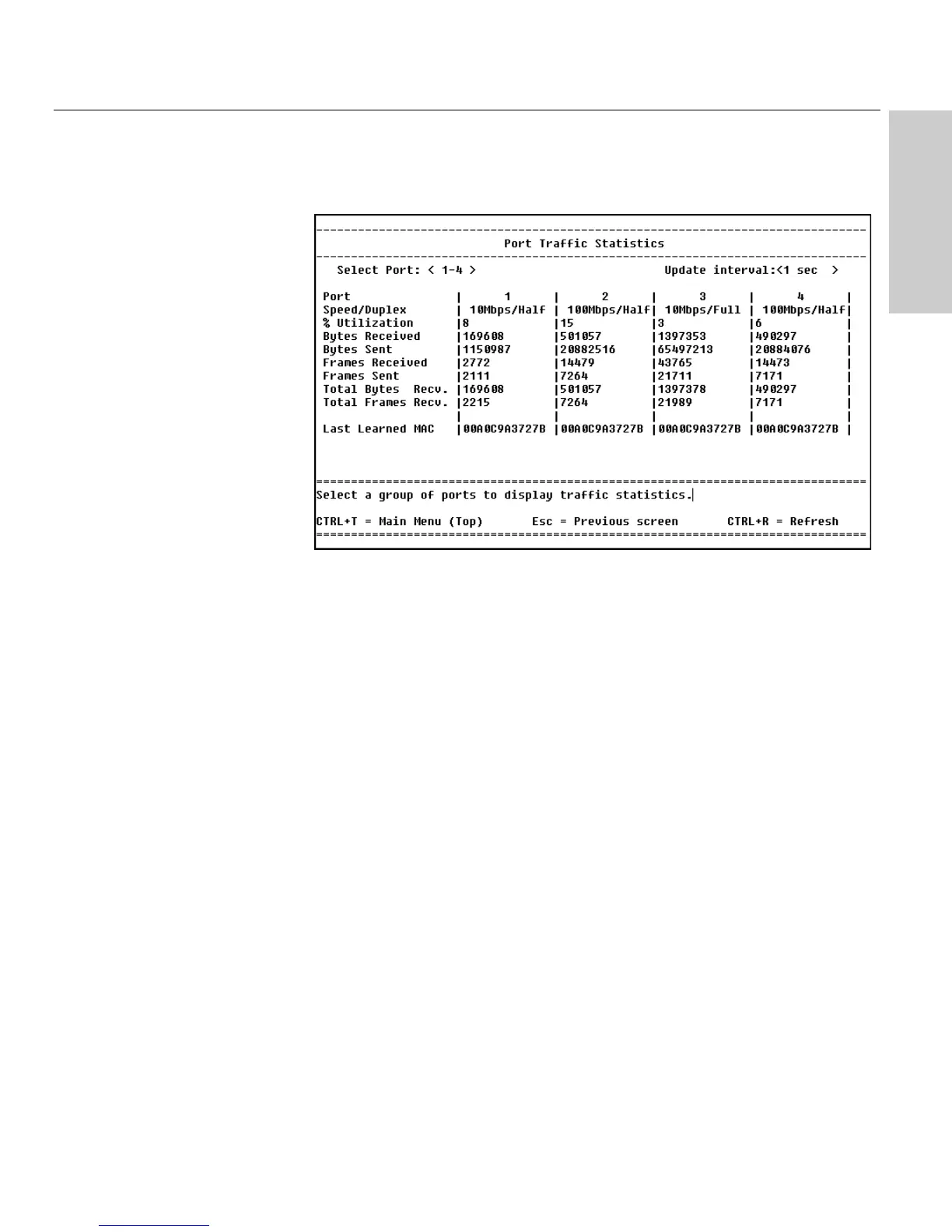

Select Port: Selects the range of ports to view. Statistics are displayed four
ports at a time. Press the z to toggle between port numbers and the
optional module. The example shows ports 1-4 on a 24-port switch.
Update interval: Press the z to select the time period between
updates. For example, an Update interval of 5 sec means Local
Management collects and displays information from the switch every five
seconds.
Speed/Duplex: The current connection status of the port.
% Utilization: The percentage of Ethernet bandwidth (10 Mbps,100 Mbps,
or 1000 Mbps) used by the device attached to that port.
Bytes Received: The number of bytes (octets) contained in error-free
frames. This includes octets in unicast, broadcast, or multicast frames and
packets whose destination address is mapped to the receiving port. It also
includes octets in packets dropped because of full buffers, spanning tree,
disabled ports, no link, or empty distribution list.
Bytes Sent: The number of error-free bytes (octets) sent over this port.
