Using Local Management
CHAPTER 5
Local Management

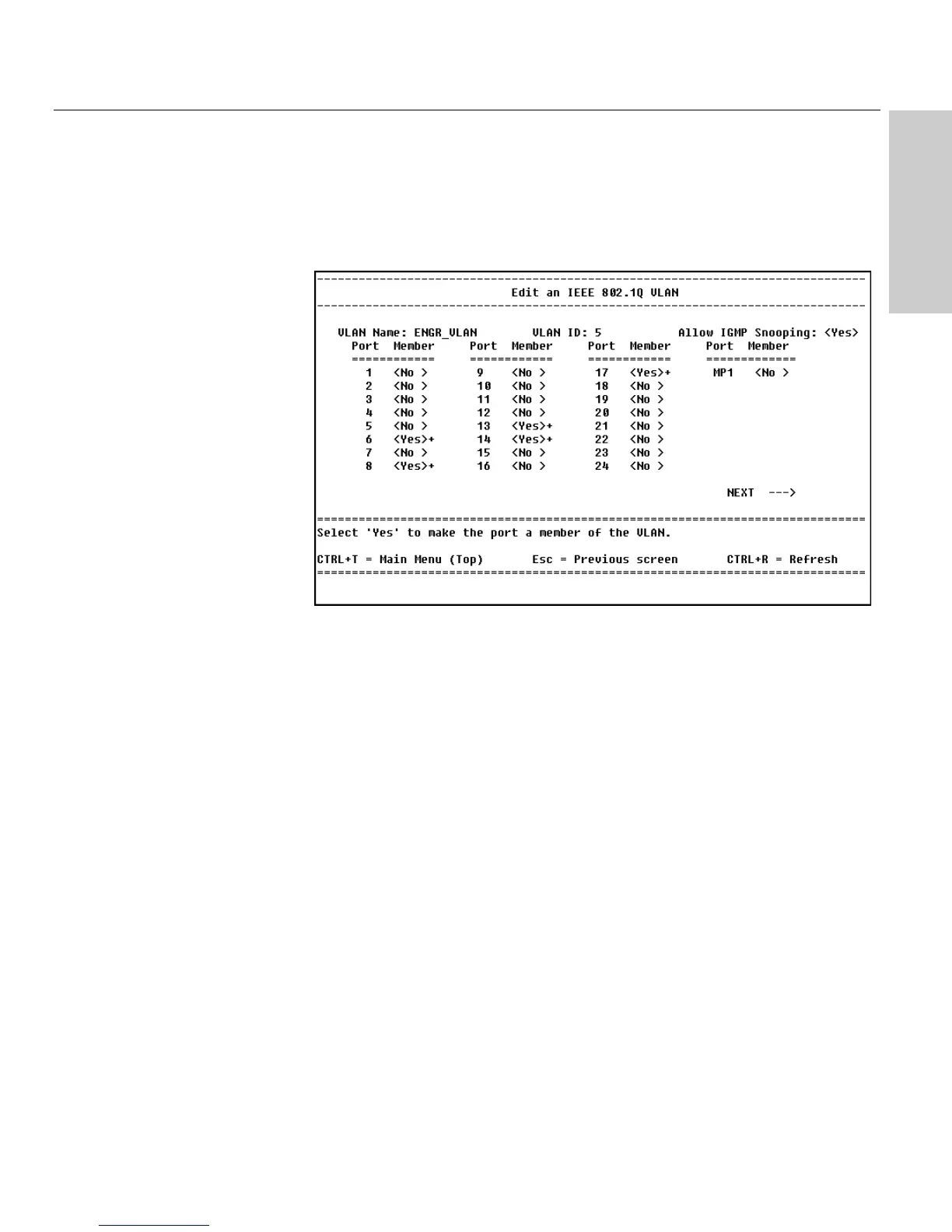

Edit an IEEE 802.1Q VLAN
Description
VLAN Name: Name of the VLAN you are editing or deleting.
VLAN ID: Assign a unique ID number to the VLAN. This number is used to
identify all packets belonging to that VLAN. Type a number from 2 to 4094.
Allow IGMP Snooping: Press the z to determine if the switch will
perform IGMP snooping on this VLAN. Up to 12 IGMP snooping sessions
are allowed.
Member: Determines which ports are part of the VLAN being created. Press
the z to toggle the field for the following options:
<Yes> The port is a member of the VLAN.
<No > The port is not a member of the VLAN.
– The port is part of an aggregated link.
NEXT: Accesses the Edit an IEEE 802.1Q VLAN (Configure Port Tagging)
screen.
LOCATION
Main Menu
Configure VLAN
Edit IEEE 802.1Q VLAN
NOTE
A ‘+’ next to the Member toggle
indicates that port is a member of
more than one VLAN.
