CHAPTER 5 Intel Express 460T Standalone Switch Users Guide

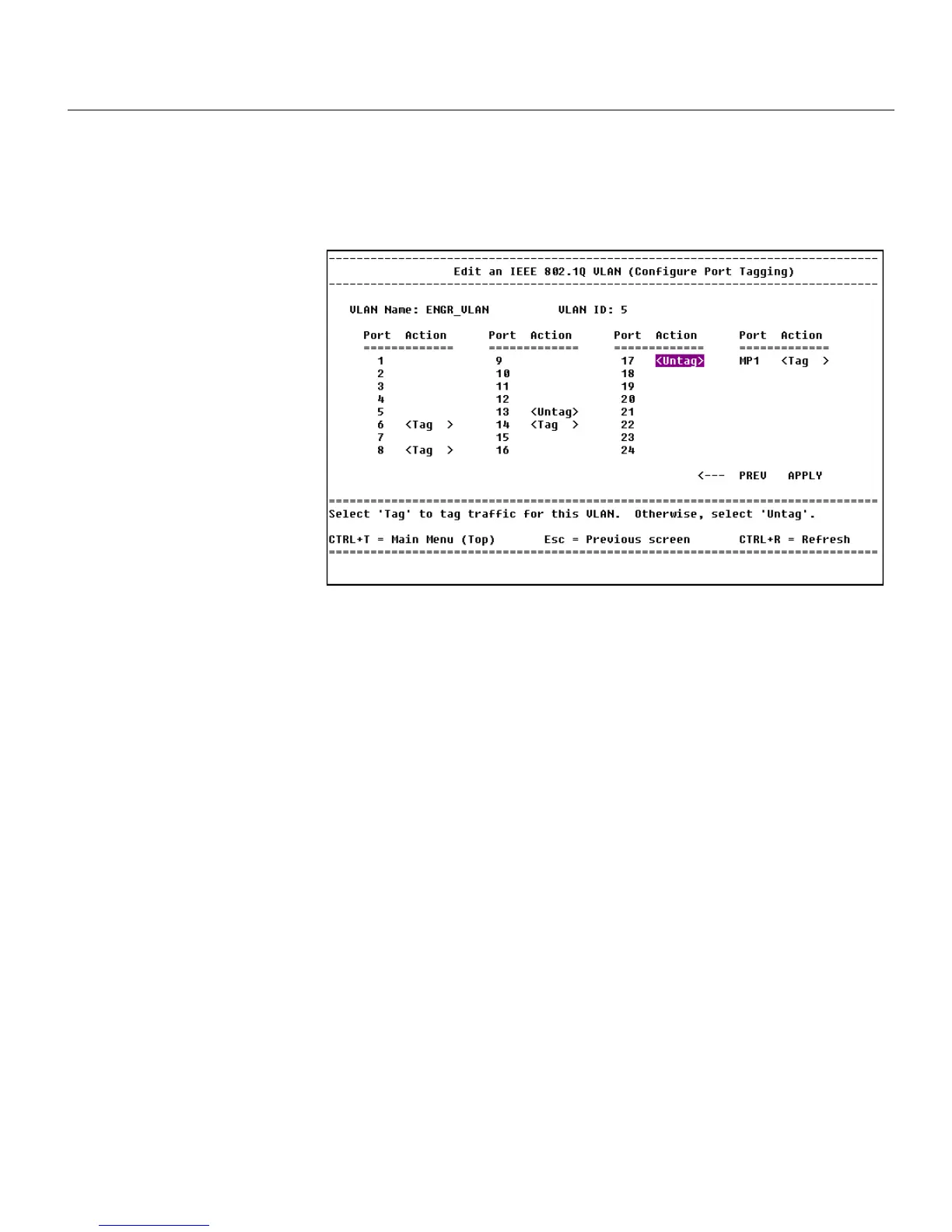

Edit an IEEE 802.1Q VLAN (Configure
Port Tagging)
Description
Use this screen to set up the switch to manage outgoing packets that do
not contain IEEE 802.1Q VLAN tags.
VLAN Name: Displays the name of the VLAN you are editing or deleting.
VLAN ID: Displays the ID number of the VLAN. This number identifies all
packets belonging to that VLAN.
Action: Determines whether outgoing traffic from that port is untagged by
the switch.
PREV: Returns you to the Edit an IEEE 802.1Q VLAN screen.
APPLY: Returns you to the Configure VLAN (IEEE 802.1Q) screen.
