CHAPTER 5 Intel Express 460T Standalone Switch Users Guide
Switch Overview
Description

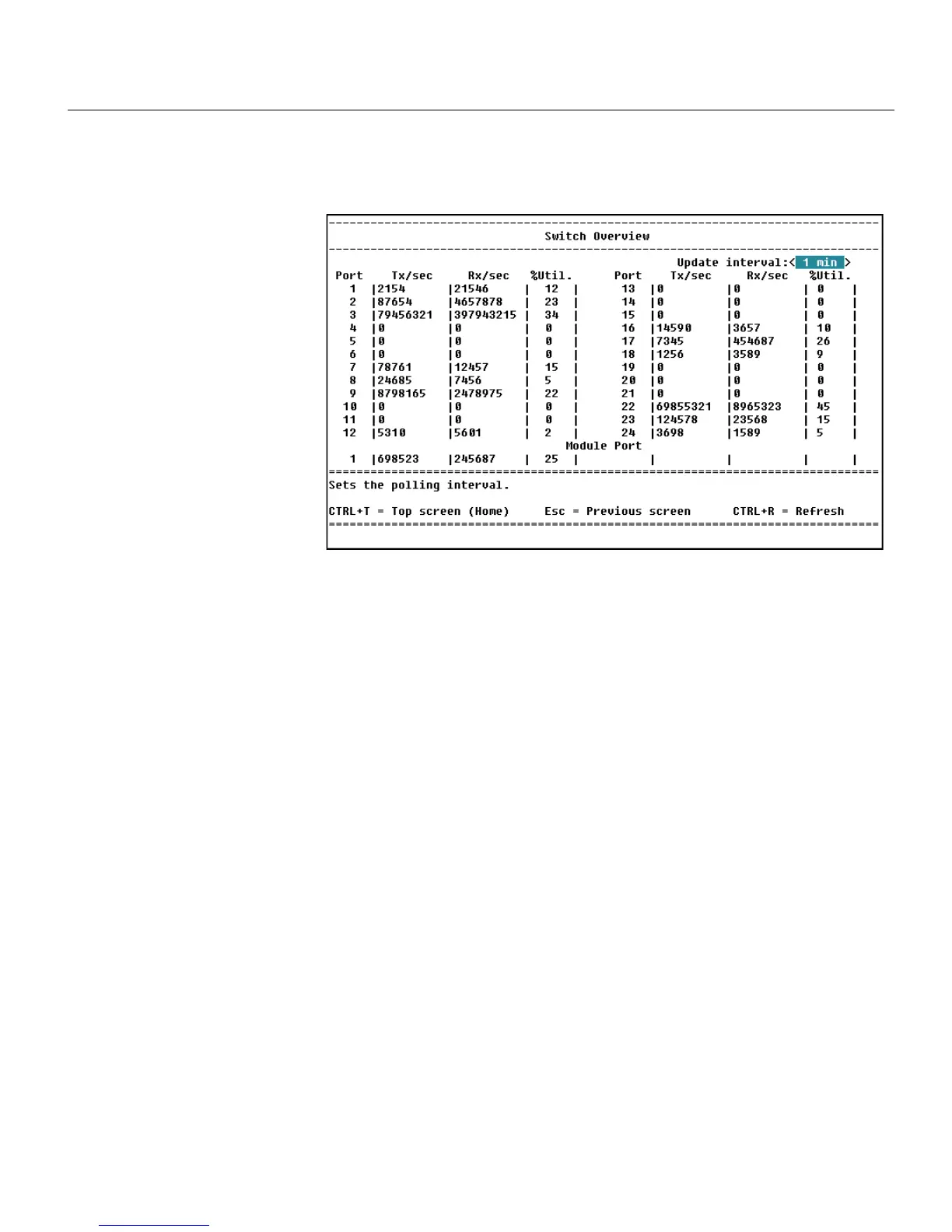

Use this screen to view activity on the switch. The screen displays the
traffic sent and received for each port on the switch, including any optional
modules, and the percent utilization for that port.
Update interval: Press the z to select the time period between
updates. For example, an Update interval of 5 sec means Local
Management collects and displays information from the switch every five
seconds.
Tx/sec or Rx/sec: The current rate of error-free frames that were transmitted
or received by the port.
% Utilization: The percentage of Ethernet bandwidth (10 Mbps,100 Mbps,
or 1000 Mbps) used by the device attached to that port.
LOCATION
Main Menu
Monitoring
Switch Overview
