4. Memory Support

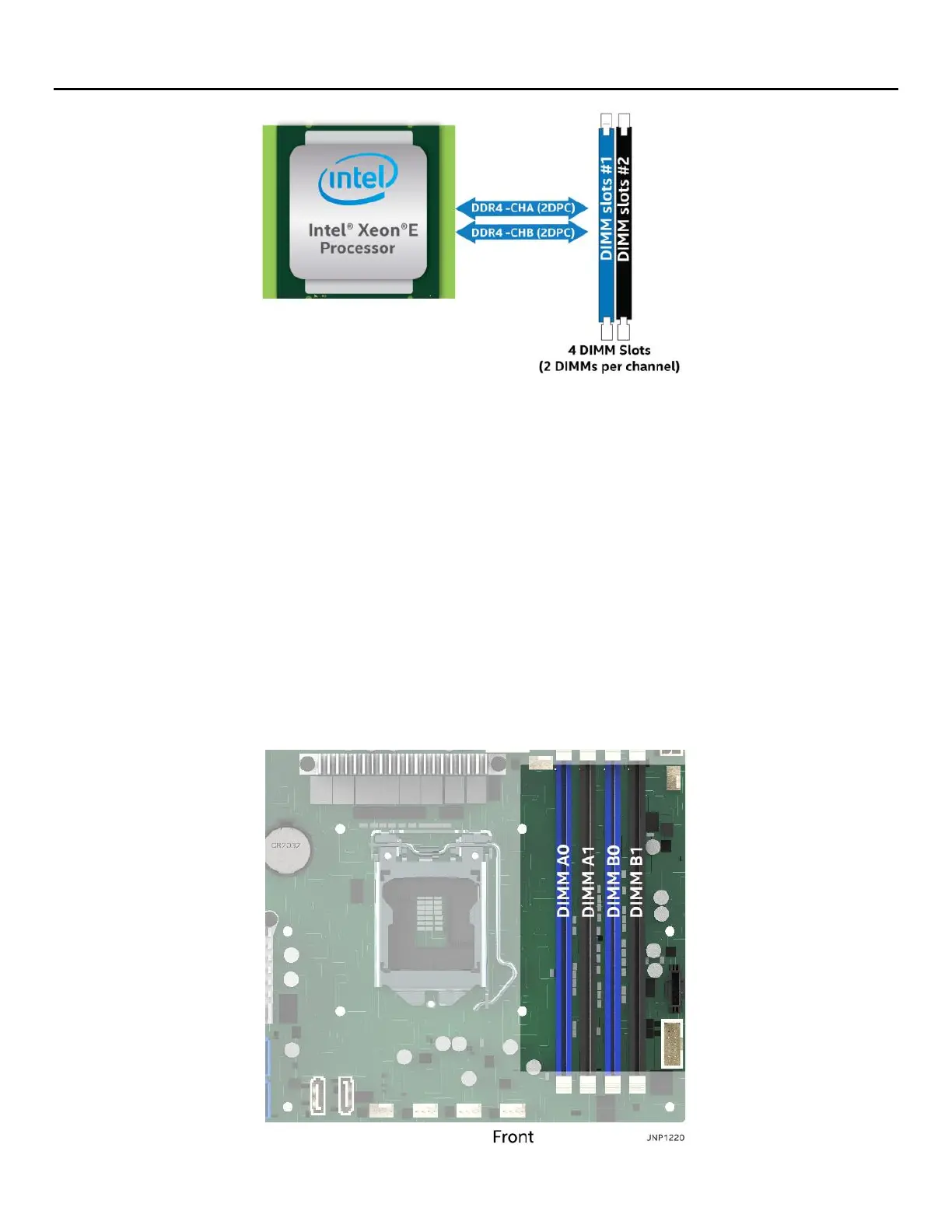

Figure 8. Memory subsystem architecture
The Intel® Xeon® E-2200 processor family includes an Integrated Memory Controller (IMC) capable of
supporting two memory channels that can accommodate up to two DIMM slots per channel. On the Intel®
Server Board M10JNP2SB, a total of four DIMM slots are provided as shown in Figure 9.
4.1 Supported Memory
The server board supports the following:
• Only DDR4 DIMMs are supported
• Only Error Correction Code (ECC) enabled UDIMMs are supported
• Total installed system memory of up to 128GB
• DIMM speeds of 2666/2400 MT/s
• DIMMs organized as Single Rank (SR) or Dual Rank (DR)
The following illustration shows the location of the DIMM slots on the server board.
Figure 9. DIMM slot identification
