Intel® Server Board M10JNP2SB User Guide
40

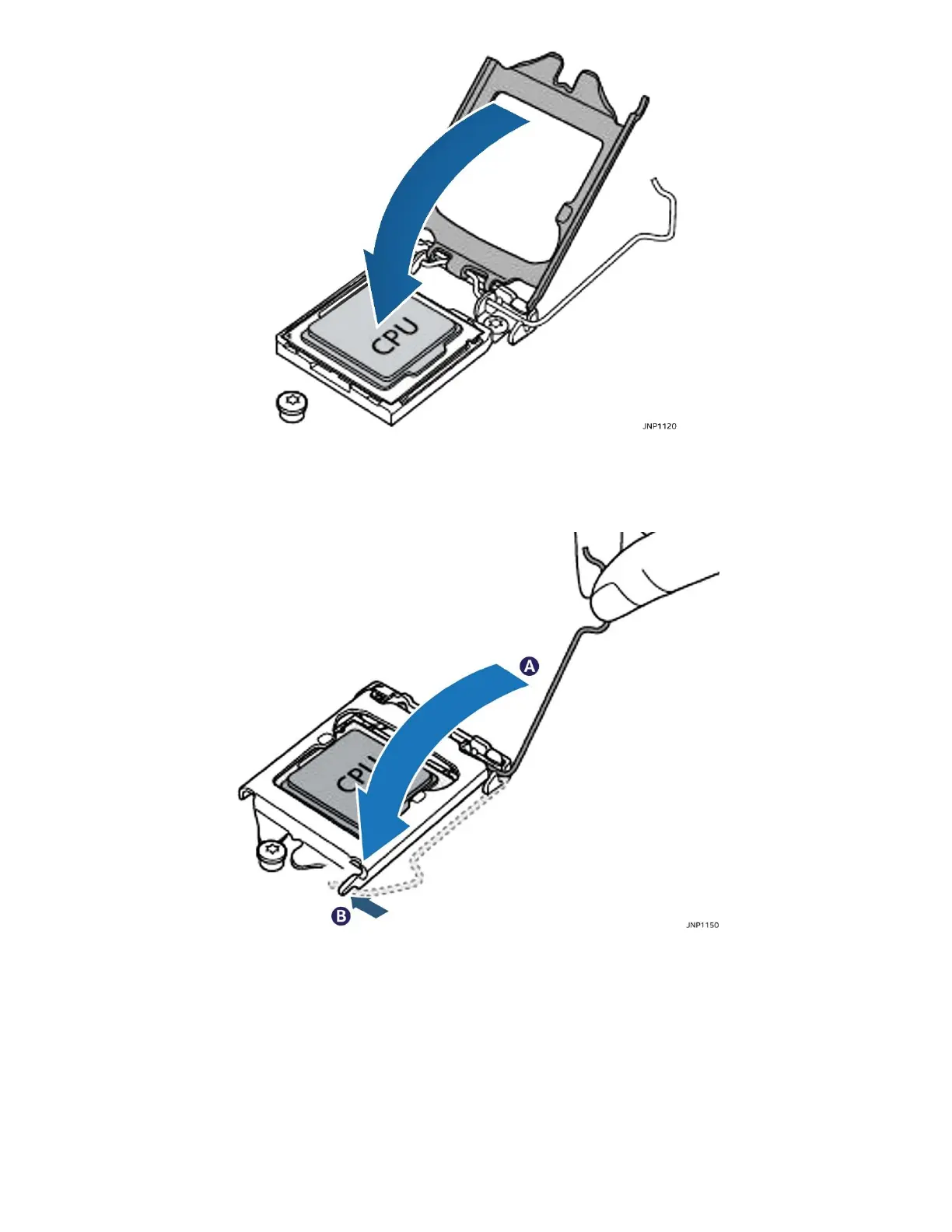

Figure 23. Closing the load plate
5. Carefully lower down the load plate over the processor.
Figure 24. Closing the socket lever
6. Lock down the load plate with the locking lever by lowering it down (see letter A) and sliding it under the
notch in the load plate (see letter B).
