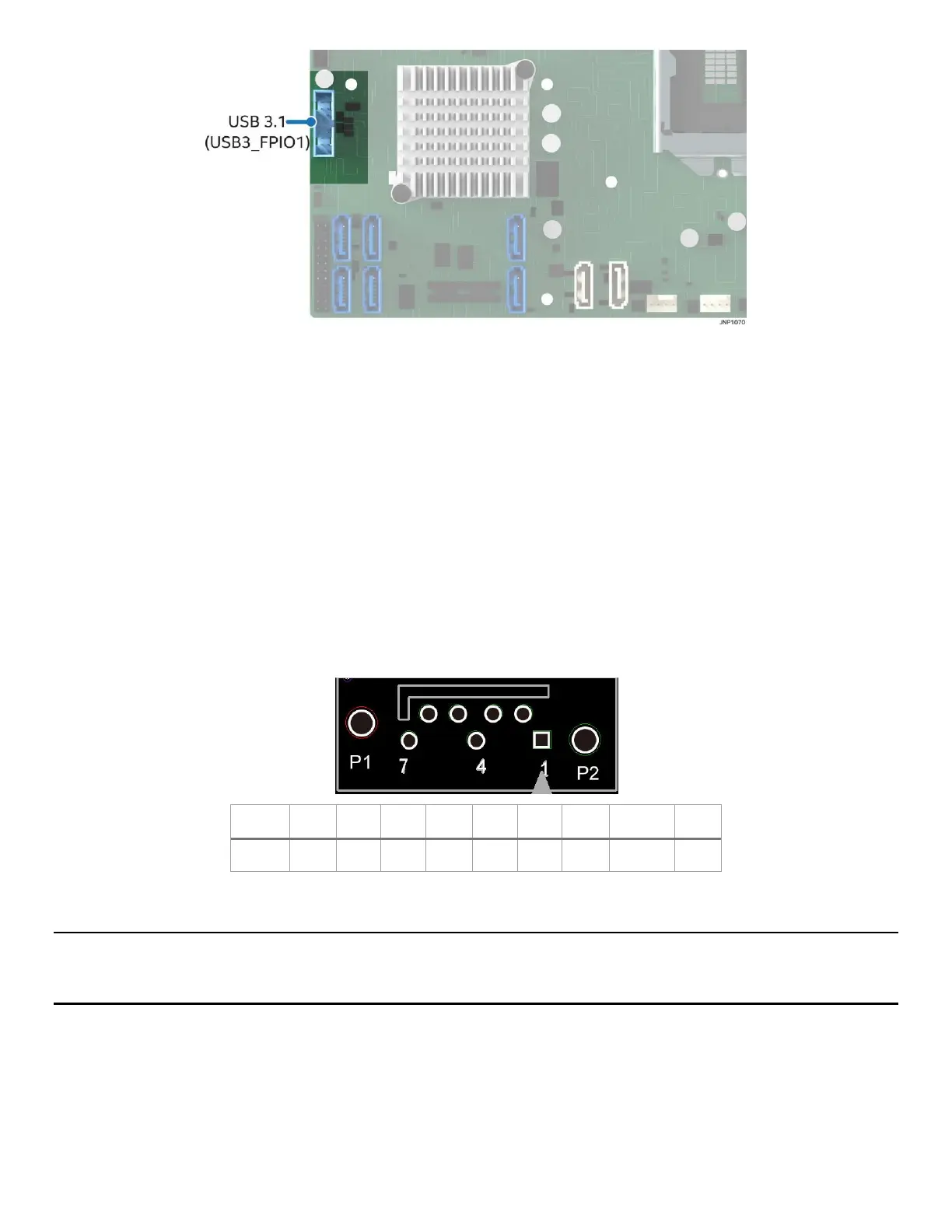

Figure 14. Front panel USB 3.0 connector
5.5 Onboard SATA Support
The server board includes an AHCI SATA controller embedded in the chipset, providing eight 6 Gb/sec SATA
ports with the following functionality:
• Two white single port 9-pin connectors labeled “SATADOM-1/SATA-0” and “SATADOM-2/SATA-1”,
providing support for SATA DOM (Disk on Module) storage devices.
• Six SATA ports on the server board labeled “SATA2-7”
5.5.1 SATADOM support
The 9-pin connectors labeled “SATA-0/SATADOM-1” and “SATA-1/SATADOM-2” support SATADOM devices
and provide two additional pins to power a connected device. Figure 15 shows the pinout for the connectors.
PIN
1
2
3
4
5
6
7
P1
P2
Signal
GND
TXP
TXN
GND
RXN
RXP
GND
VCC 5V
GND
Figure 15. SATADOM connector pinout
Note: The ports are located close to the front edge of the server board. Refer to the documentation of the
chassis where the server board will be installed for details on clearance at the front edge of the board to
determine the dimensions of the SATADOM devices that can be installed.
