Intel SC5300 - Chassis Front View SC5300 LX with Hot Swap Components; Figure 3. Intel Server Chassis SC5300 Base Front View

Chassis Description
Intel® Server Chassis SC5300 User Guide 3

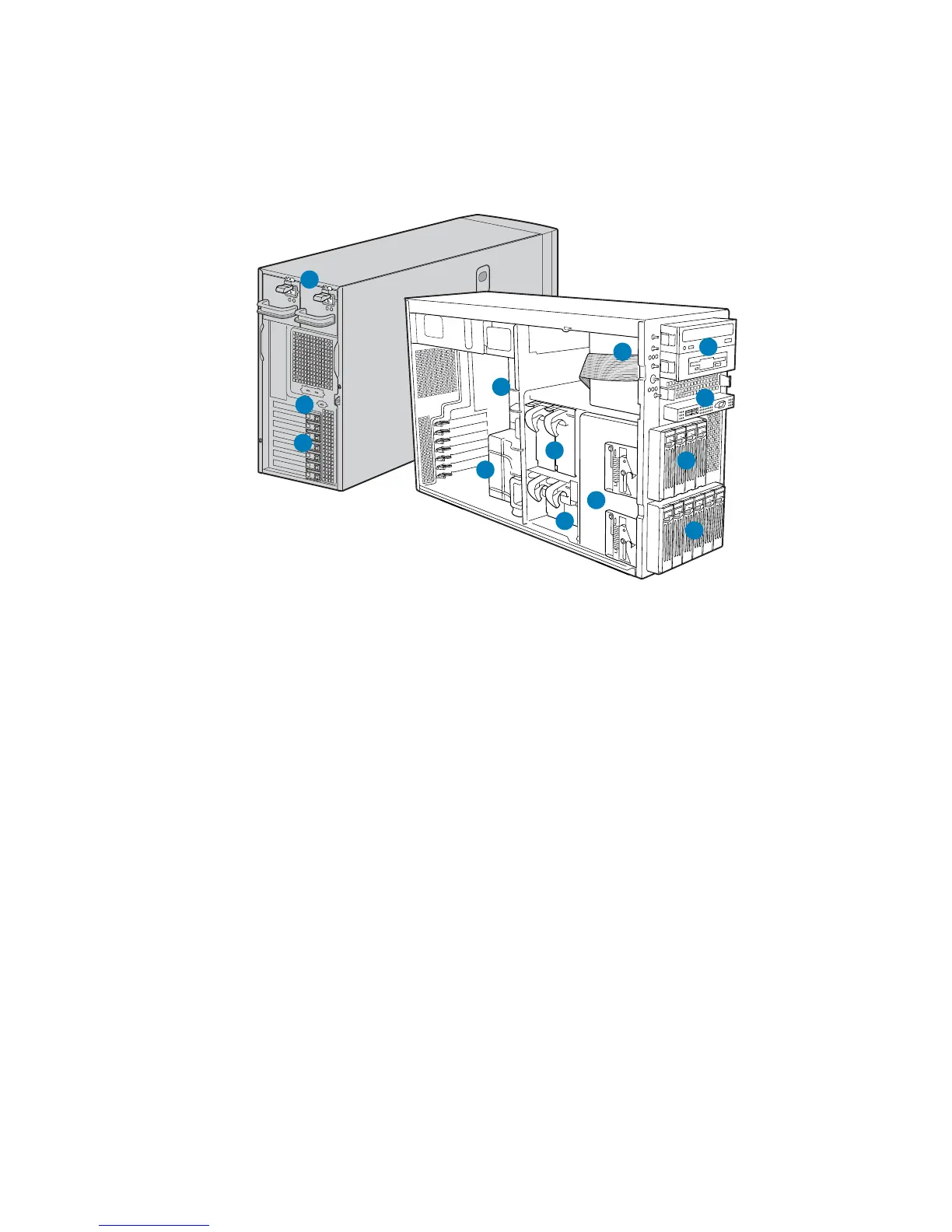

Chassis Front View SC5300 LX with Hot Swap Components
TP00557
A
B
M
C
D
E
F
G
H
I
J
K
L
A. Hot Swap Power Supply/Second Hot Swap Power Supply (accessory)
B. PCI Add-in Card Panel
C. Processor Air Duct
D. PCI Air Duct
E. Hot Swap Fans – Large (2)
F. Hot Swap Fans – Small (2)
G. Hard Drive Cage Release Mechanisms (2)
H. Front Panel Control Cable
I. 5.25-inch Device Bays (3)
J. Front Panel USB/Serial B
K. Hot Swap Drive Cage – 4-Drive (accessory)
L. Hot Swap Drive Cage – 6-Drive
M. Rear Serial-B Connector
Figure 3. Intel® Server Chassis SC5300 Base Front View
