Setting Up the Chassis
18 Intel® Server Chassis SC5300 User Guide
Install DVD or CD-ROM Drive.
1. Remove a filler panel/slide assembly from the upper device bay.
TP00535
Filler Panel
A
A

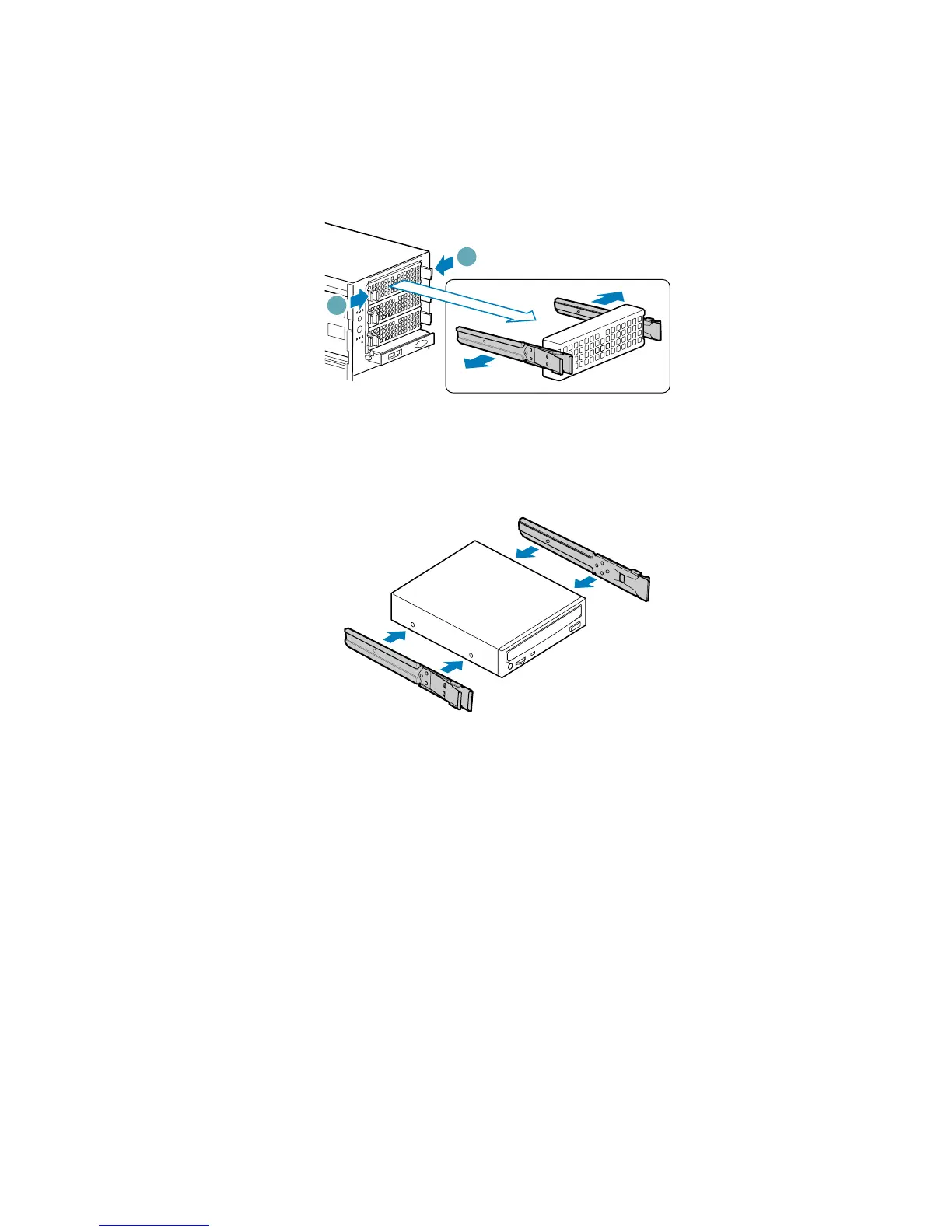

Figure 17. Removing Slide/Filler Panel Assembly from Upper Device Bay
2. Attach slides to the DVD or CD-ROM drive by pressing the slides firmly into the side dimples
on the DVD or CD-ROM drive.
TP00536
Figure 18. Installing a DVD or CD-ROM Drive
3. Insert the drive/slide assembly into the upper device bay until the slides lock into place.
4. Connect power and data cables.
