Setting Up the Chassis
22 Intel® Server Chassis SC5300 User Guide

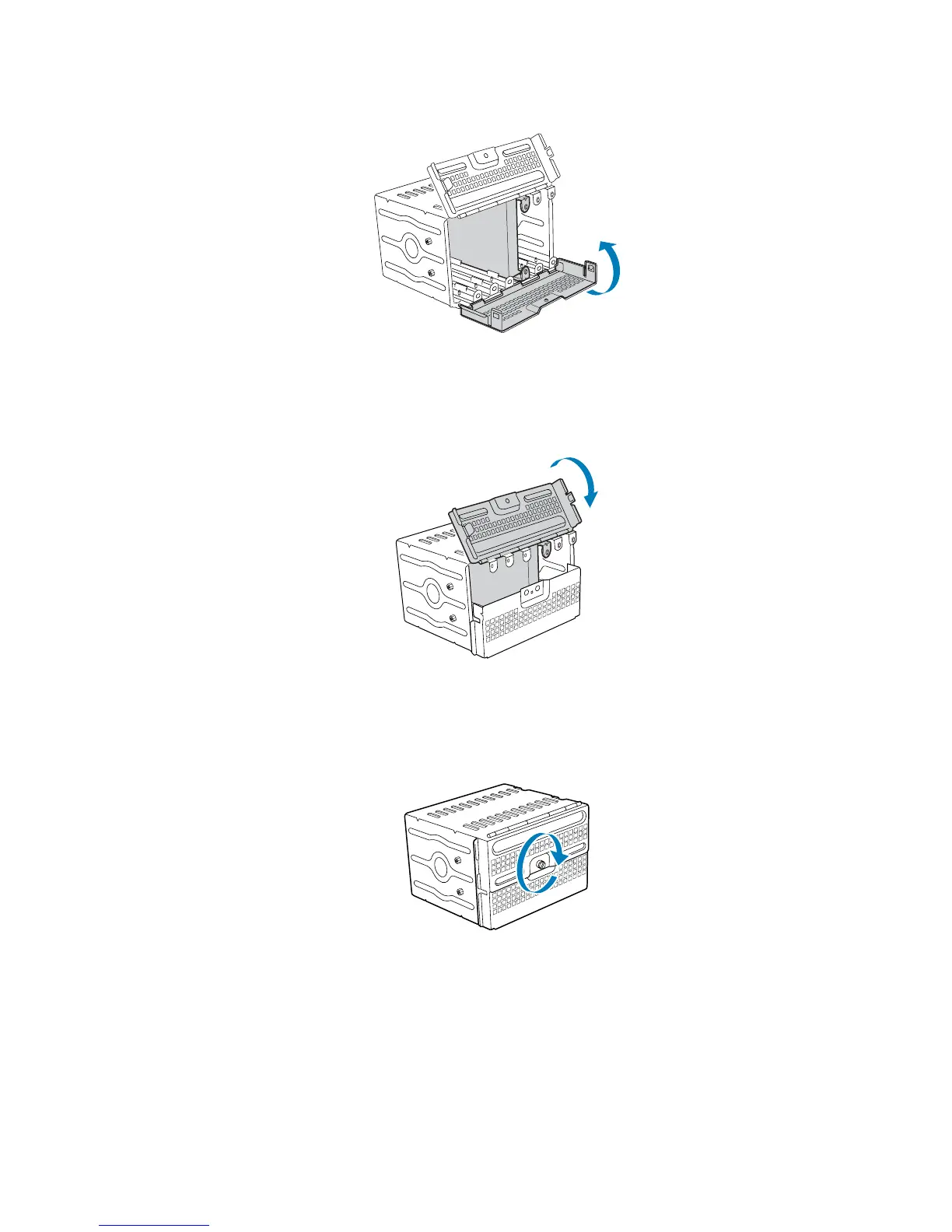

8. Close the lower door of drive cage.
TP00548
Figure 25. Closing Lower Door of Fixed Drive Cage
9. Close the upper door of drive cage.
TP00550
Figure 26. Closing Upper Door of Fixed Drive Cage
10. Tighten the thumb screw. Install power and data cables to connectors on hard drive(s).
TP00551
Figure 27. Tightening Thumb Screw
