Intel SC5300 - Replacing a Fixed Fan; Figure 47. Removing a Fixed Fan

Maintaining Your Server
Intel® Server Chassis SC5300 User Guide 39
Replacing a Fixed Fan
1. Remove Primary Access Cover (see “Remove Primary Access Cover” in Chapter 2 for step-by-
step instructions).
2. Disconnect fan power cable from server board.
3. Remove the 92-mm (letter “A”) or 120-mm (letter “B”) Fixed Fan from its snap-in bracket.
TP00991
B
A
120-mm
Fixed Fan
92-mm
Fixed Fan

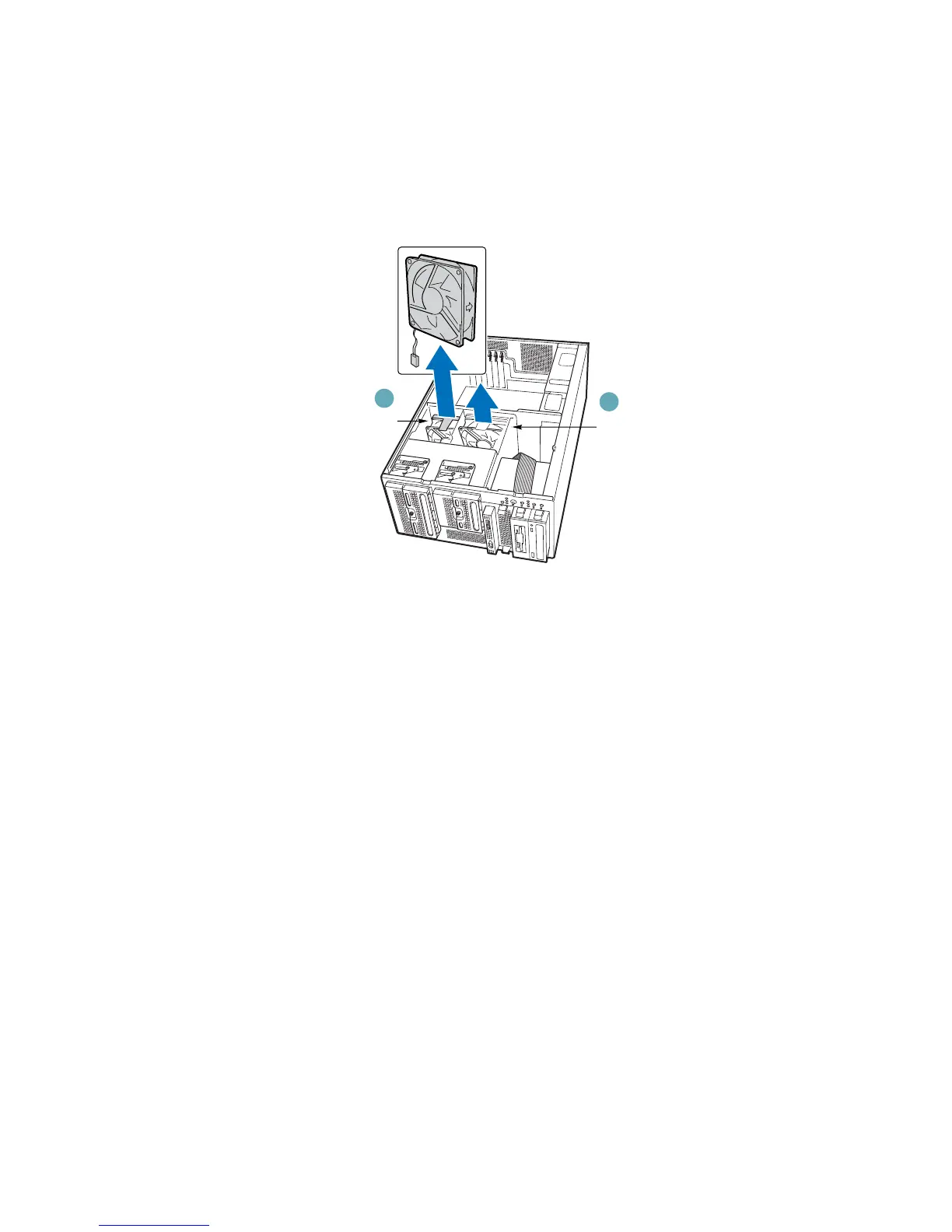

Figure 47. Removing a Fixed Fan
4. Install new 92-mm or 120-mm Fixed Fan.
5. Reconnect fan cable to server board.
6. Replace Primary Access Cover (see “Install Primary Access Cover” in Chapter 2 for step-by-
step instructions).
