Setting Up the Chassis
Intel® Server Chassis SC5300 User Guide 17
2. Attach floppy drive to floppy drive tray with screws, using holes marked “FDD.”
3. Install plastic floppy cosmetic panel to face of floppy drive (letter “A”). Remove slides from
hard drive position and attach slides to floppy drive tray by pressing the slides firmly into the
side dimples of the tray.
TP00538
A

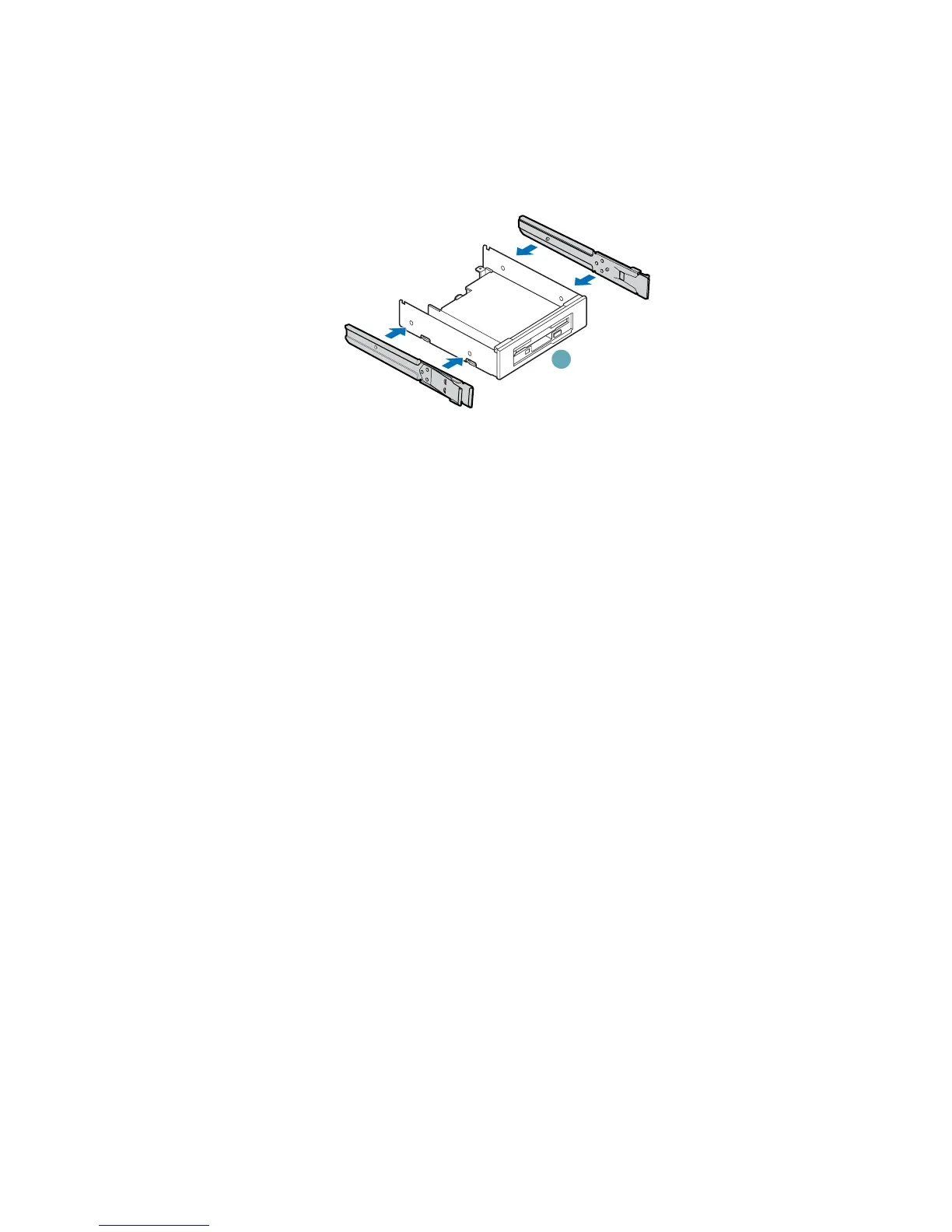

Figure 16. Installing Slides on 3.5-in Floppy Drive
4. Insert the floppy drive/slide assembly partially into the upper device bay. Connect power and
data cables.
5. Finish inserting the floppy drive/slide assembly into the chassis until the slides lock into place.
