Chassis Description
Intel® Server Chassis SC5300 User Guide 5
Amber BLINK
Non-critical failure: Redundant fan failure, redundant power
failure, non-critical power and voltage
OFF
System not ready: Post error/NMI event/PCI or terminator
missing
Green BLINK Hard drive activity
Amber ON Fault
Hard drive activity
OFF No activity
Green ON Linked
Green BLINK LAN activity
NIC1 activity
OFF Idle
Green ON Linked
Green BLINK LAN activity
NIC2 activity
OFF Idle
Blue BLINK Server identification; Toggled by ID button or software
ID LED* (rack only)
OFF Server identification; Toggled by ID button or software
* Not supported by all server boards.

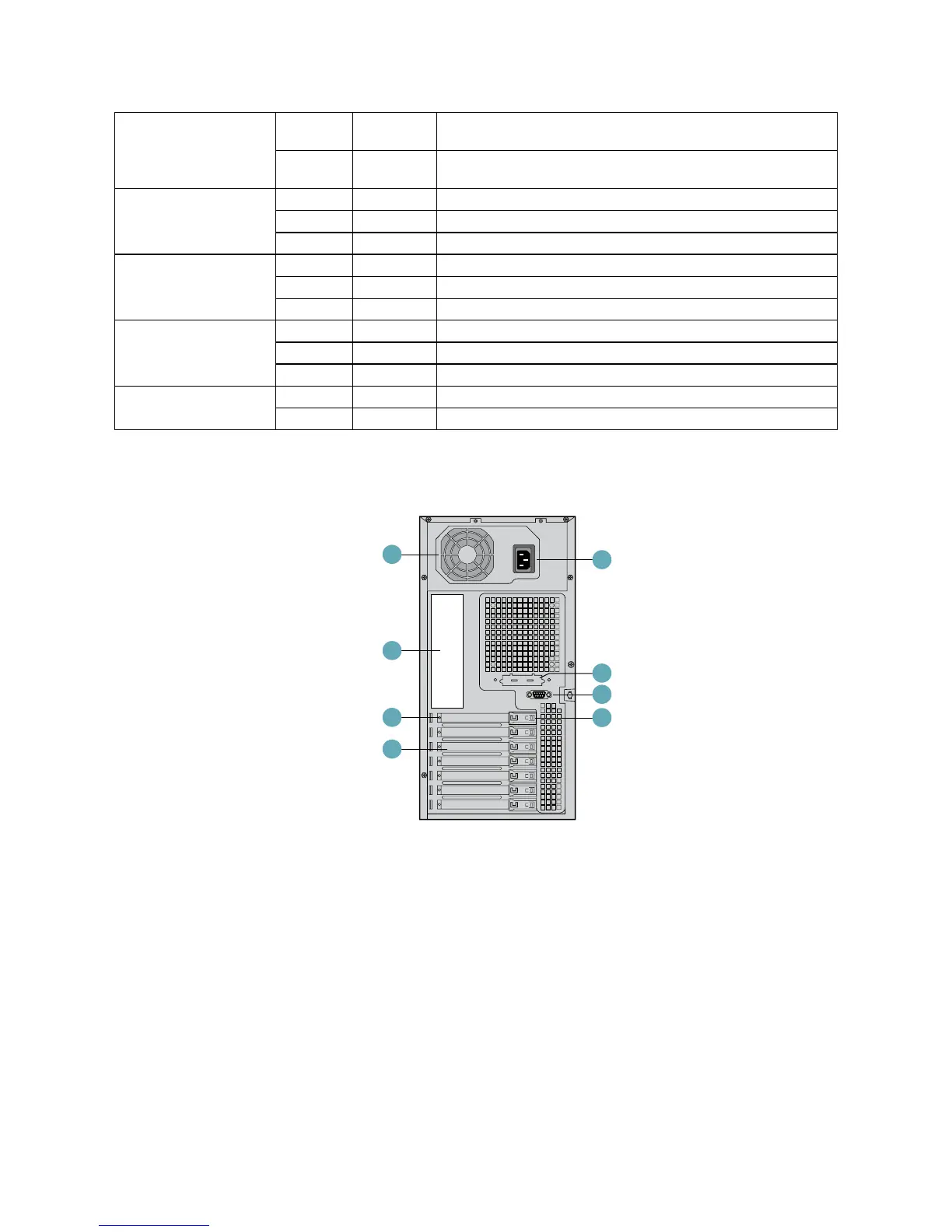

Base Chassis Rear View
TP00526
A
B
C
D
E
F
H
G
A. Removable Power Supply
B. I/O Ports
C. Expansion Slot Covers
D. PCI Add-in Card Panel
E. PCI Card Latch
F. Rear Serial B Connector*
G. ICBM or SCSI Knockout
H. AC Power Connector
Figure 5. Intel® Server Chassis SC5300 Base Chassis Rear View
