Intel SC5300 - Install an Additional Hot Swap Power Supply Module; Figure 43. Removing Power Supply Filler Panel; Figure 44. Installing Additional Hot Swap Power Supply Module

Setting Up the Chassis
Intel® Server Chassis SC5300 User Guide 33
Install an Additional Hot Swap Power Supply Module
✏
NOTE
This step only applies to chassis with redundant power supply capability. Do not perform this step
if your chassis has a fixed power supply.
1. Loosen screw (letter “A”) and remove power supply filler pane (letter “B”).
TP00543
A
B

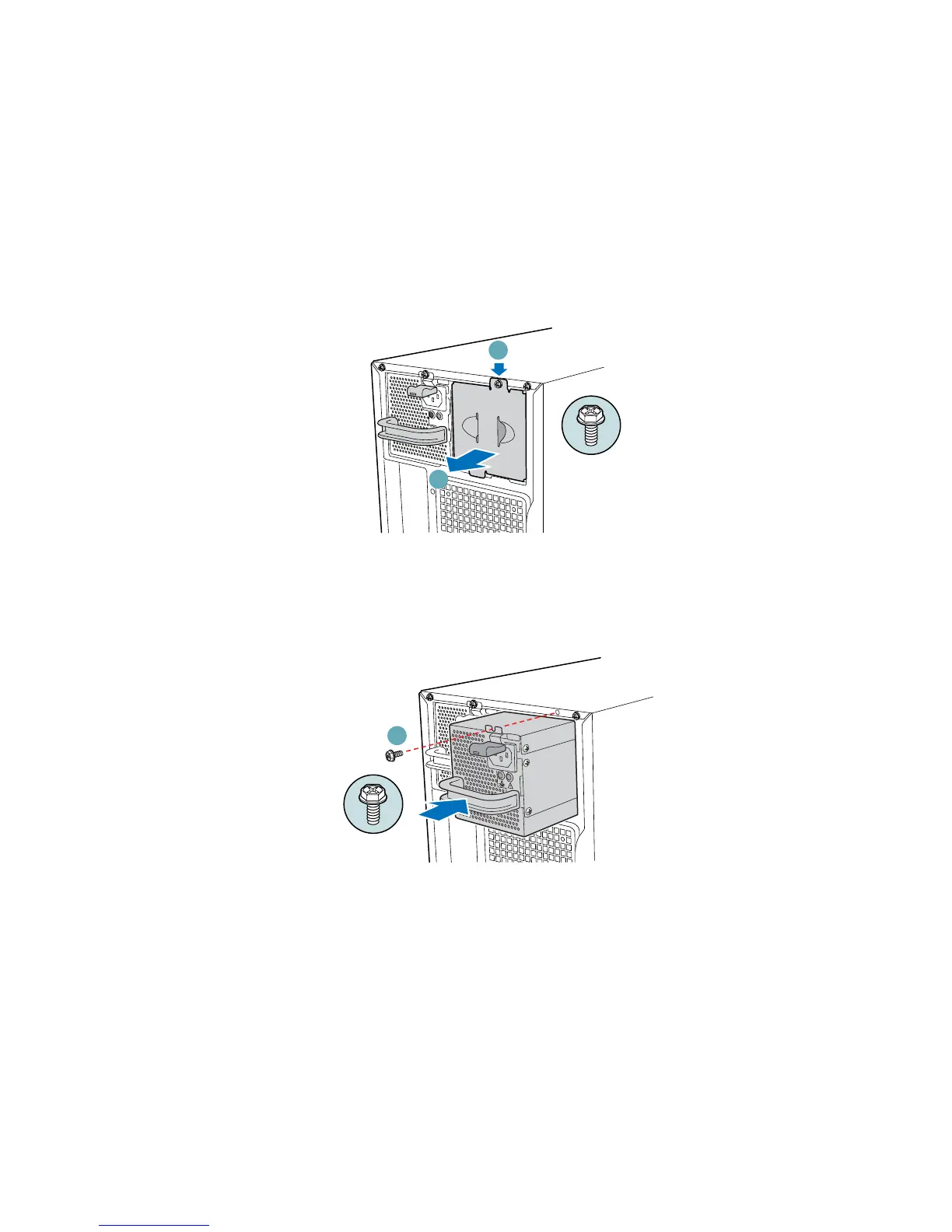

Figure 43. Removing Power Supply Filler Panel
2. Insert power supply module until it clicks into place. Secure with screw (letter “A”) if shipping
chassis to another location
TP00544
A
Figure 44. Installing Additional Hot Swap Power Supply Module
