Setting Up the Chassis
34 Intel® Server Chassis SC5300 User Guide
Install Bezel Assembly
TP00541
A
B
A
D
D
C
40
˚
Max

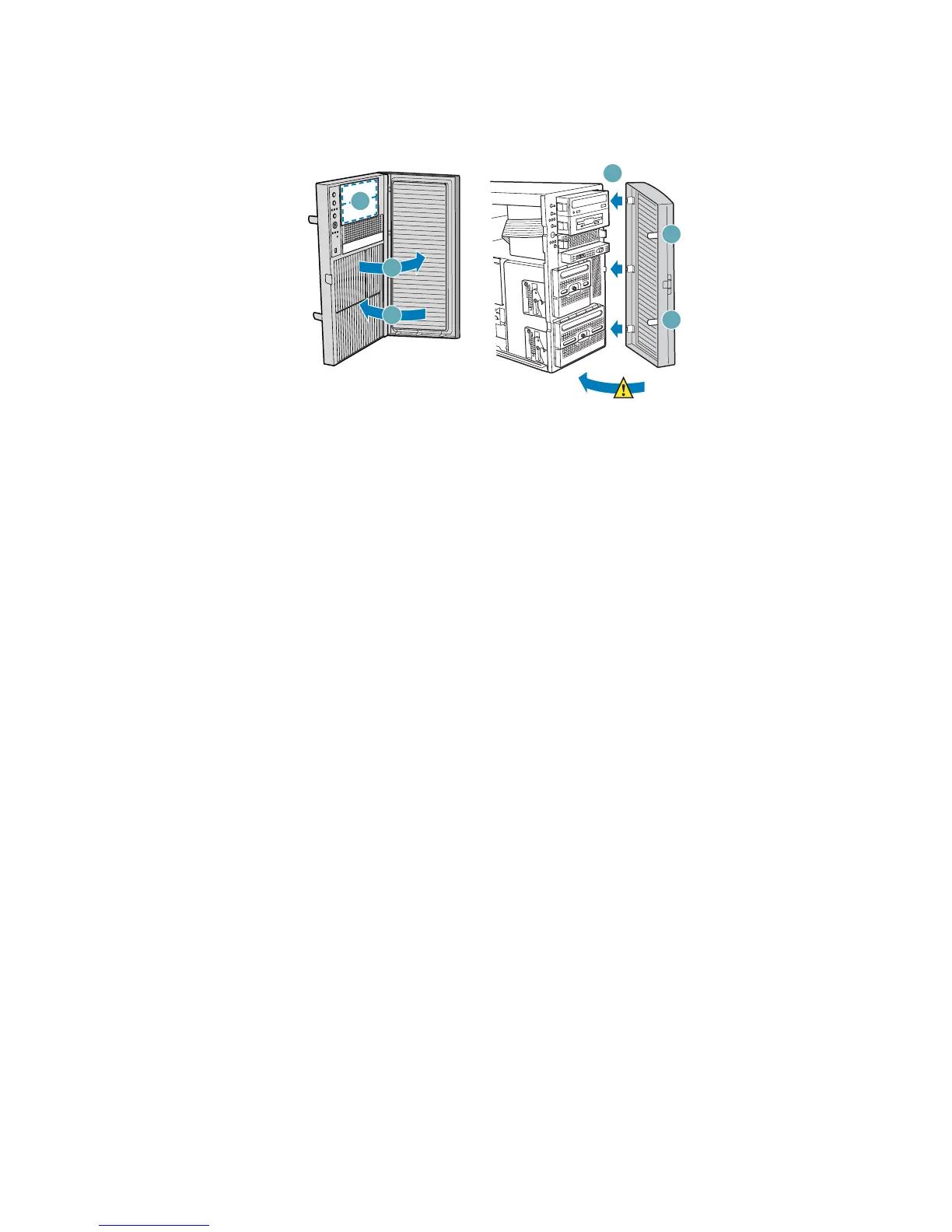

Figure 45. Installing Bezel Assembly
1. Open the Outer Bezel Door of the Bezel Assembly (letter “A”) and remove filler panels that
correspond to installed devices.
2. Close the Outer Bezel Door (letter “B”).
3. Fit the right edge of the Bezel Assembly against the right side of chassis and engage plastic
bezel hooks (letter “C”) into raised metal slots at chassis edge.
4. Rotate Bezel Assembly toward chassis and latch the two plastic tabs (letter “D”) on left side of
Bezel Assembly to chassis.
