Replacing a Hot Swap Power Supply
WARNINGS
Hazardous conditions, power supply: Hazardous voltage, current,
and energy levels are present inside the power supply. There are no
user-serviceable parts inside it; servicing should be done by technically
qualified personnel.
1. Remove power cable from defective power supply.
2. Remove shipping screw (letter “A”) securing Hot Swap Power Supply to chassis, if necessary.
Press on green latch (letter “A”) while pulling on handle to remove Hot Swap Power Supply
from chassis.
TP00558
A
B

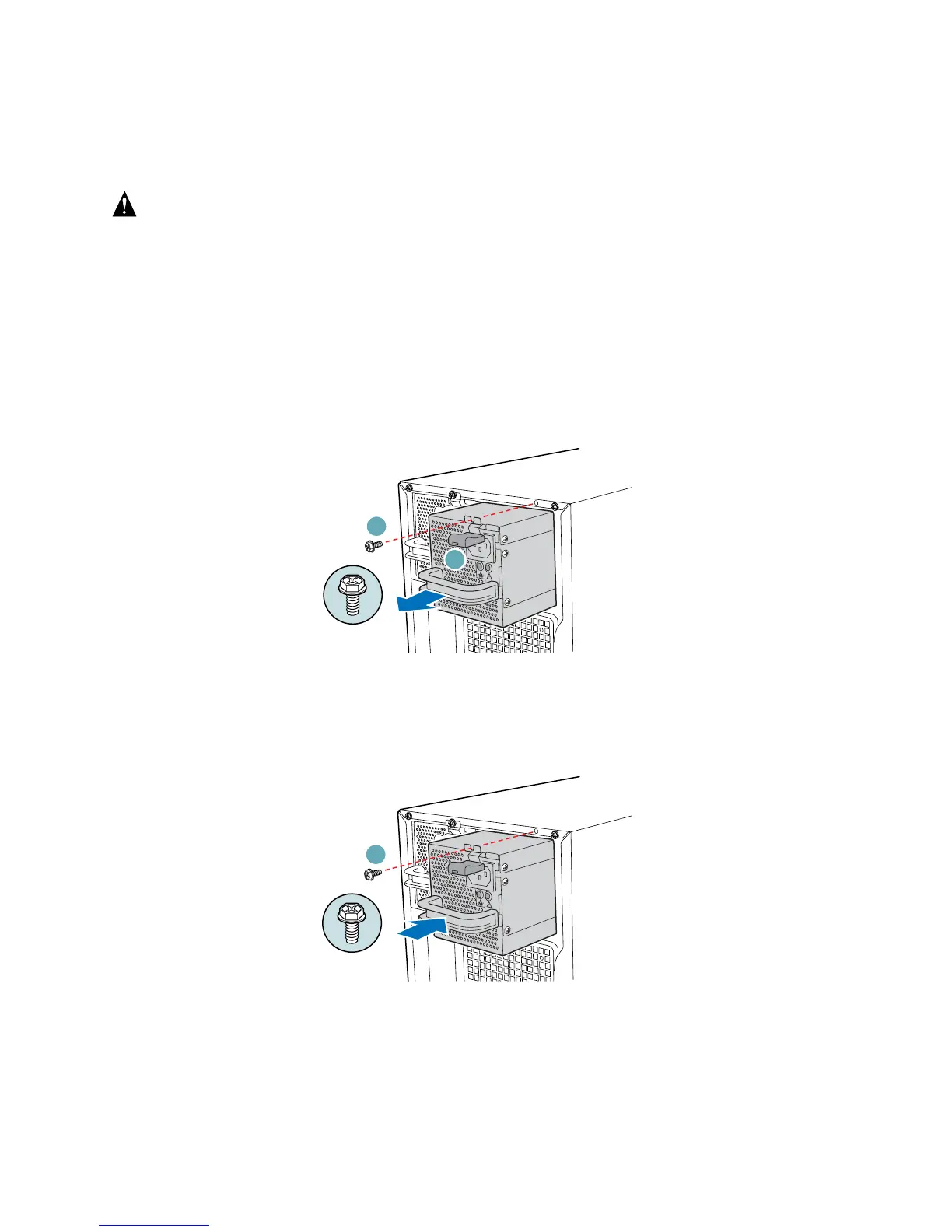

Figure 53. Removing a Hot Swap Power Supply
3. Insert new Hot Swap Power Supply. Replace shipping screw (letter “A”) if shipping chassis to
another location.
TP00544
A
Figure 54. Installing a Hot Swap Power Supply
4. Connect power cable to replaced power supply.
