Intel SC5300 - Figure 42. Installing Air Ducts

Setting Up the Chassis
32 Intel® Server Chassis SC5300 User Guide
3. Install Processor Air Duct into chassis (letter “A”). Install PCI Air Duct (letter “B”) and latch
(letter “C”) into place.
✏
NOTE
The Processor Air Duct interlocks with the PCI Air Duct in two places before
latching into place.
TP00562
B
A
C

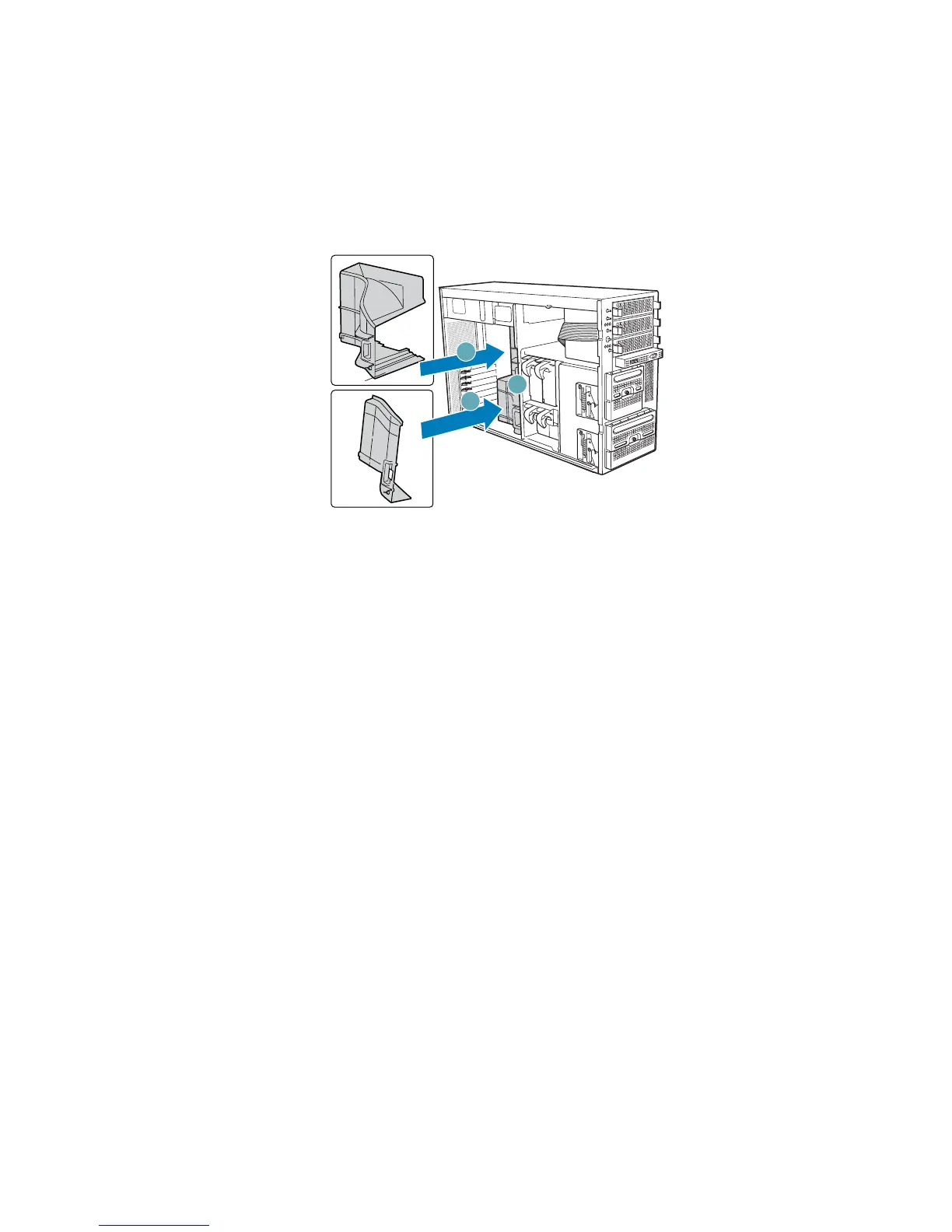

Figure 42. Installing Air Ducts
