Chassis Description
4 Intel® Server Chassis SC5300 User Guide
Front Panel Controls and Indicators
TP00534
A
B
C
E
F
G
H
I
J
K
D
A. ID Toggle Switch
B. Reset Button
C. NIC1 Activity LED (green)
D. Sleep Button
E. Power Button
F. Hard Drive Activity LED (bi-color)
G. Power/Sleep LED (green)
H. NIC2 Activity LED (green)
I. ID LED (blue)
J. Status LED (bi-color)
K. NMI Button

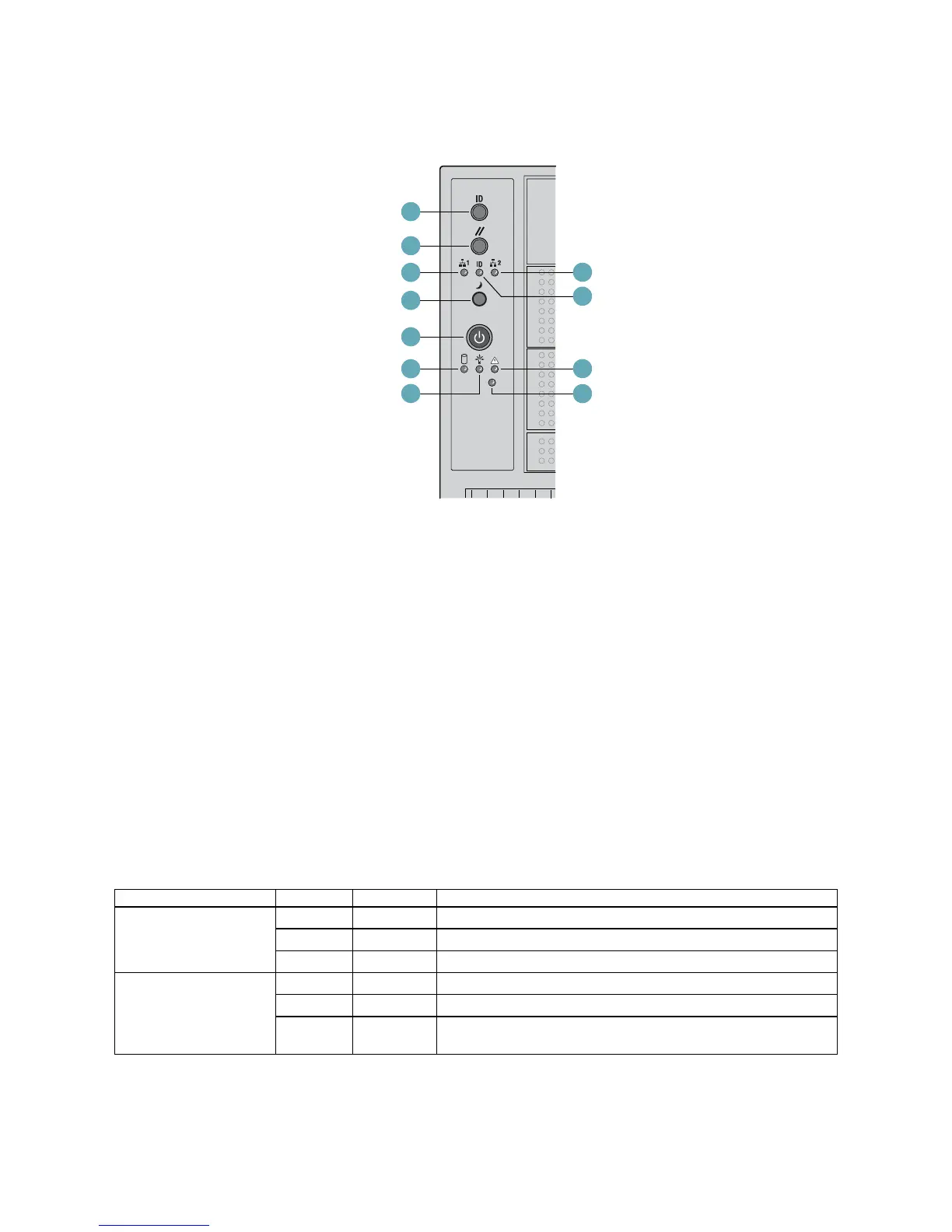

Figure 4. Pedestal Controls and Indicators
Descriptions of the front panel LEDs are listed in the following table. Refer to your server
documentation for functionality of buttons.
Table 2. Front Panel LED Descriptions
LED Name Color Condition Description
Green ON Power on
Green BLINK Standby/Sleep (S1)
Power/Sleep LED
OFF Off (also Sleep S4)
Green ON System ready
Green BLINK System ready, but degraded: some CPU fault, DIMM killed
Status
Amber ON
Critical alarm: Critical power module failure, critical fan failure,
voltage (power supply), voltage and thermal fault
