Setting Up the Chassis
20 IntelĀ® Server Chassis SC5300 User Guide
3. Open the lower door.
TP00920

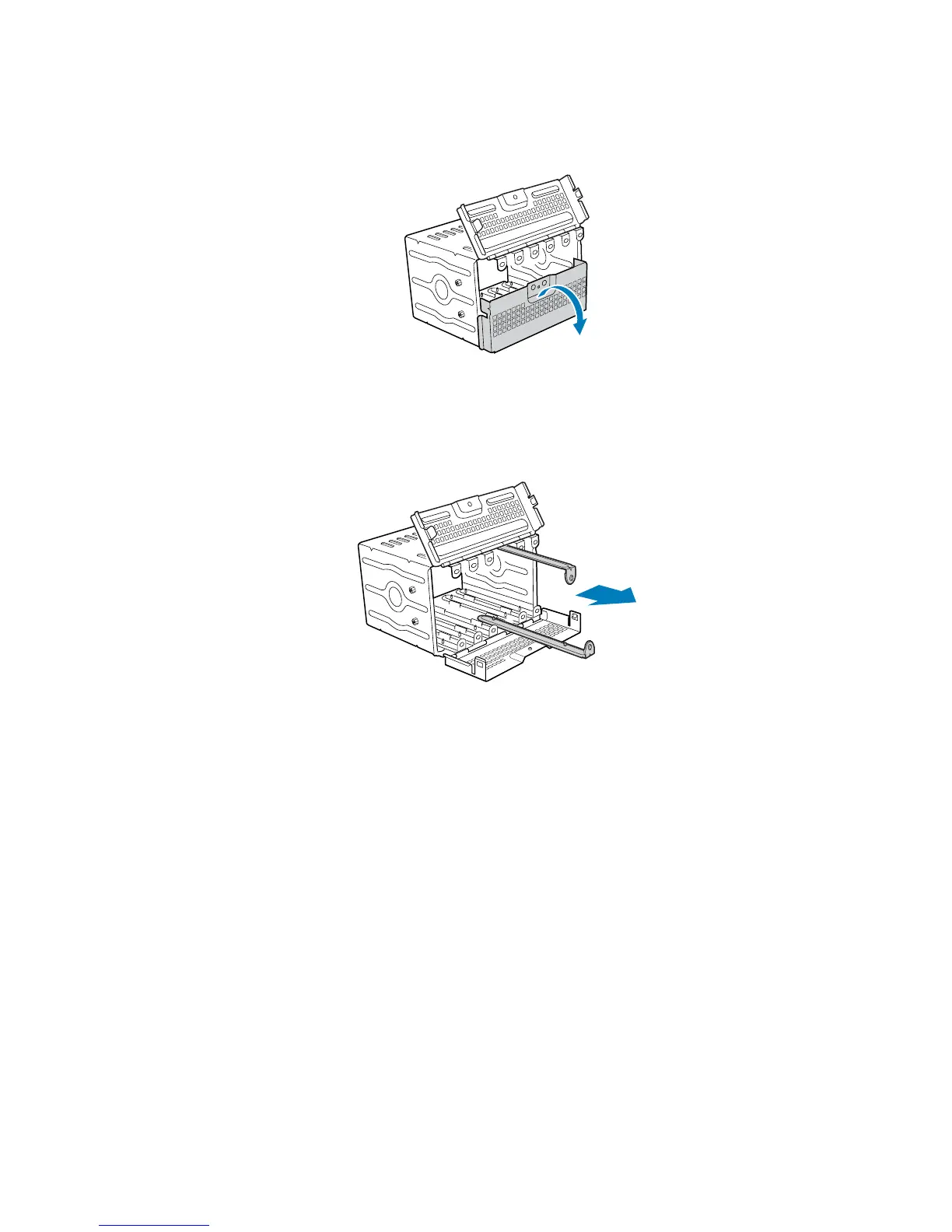

Figure 21. Opening Lower Drive Cage Door
4. Remove a pair of device slides from the drive cage.
TP00563
Figure 22. Remove Slides from Drive Cage Door
