Installing Above Deck Unit (ADU)
5.5 Connecting RF Cable to Antenna
1. Terminate N(M) connector on the end of the RF Cable. Intellian recommends using a genuine cable
connector and tools. Refer to the cable termination instructions provided by the manufacturer to terminate
the N connector.

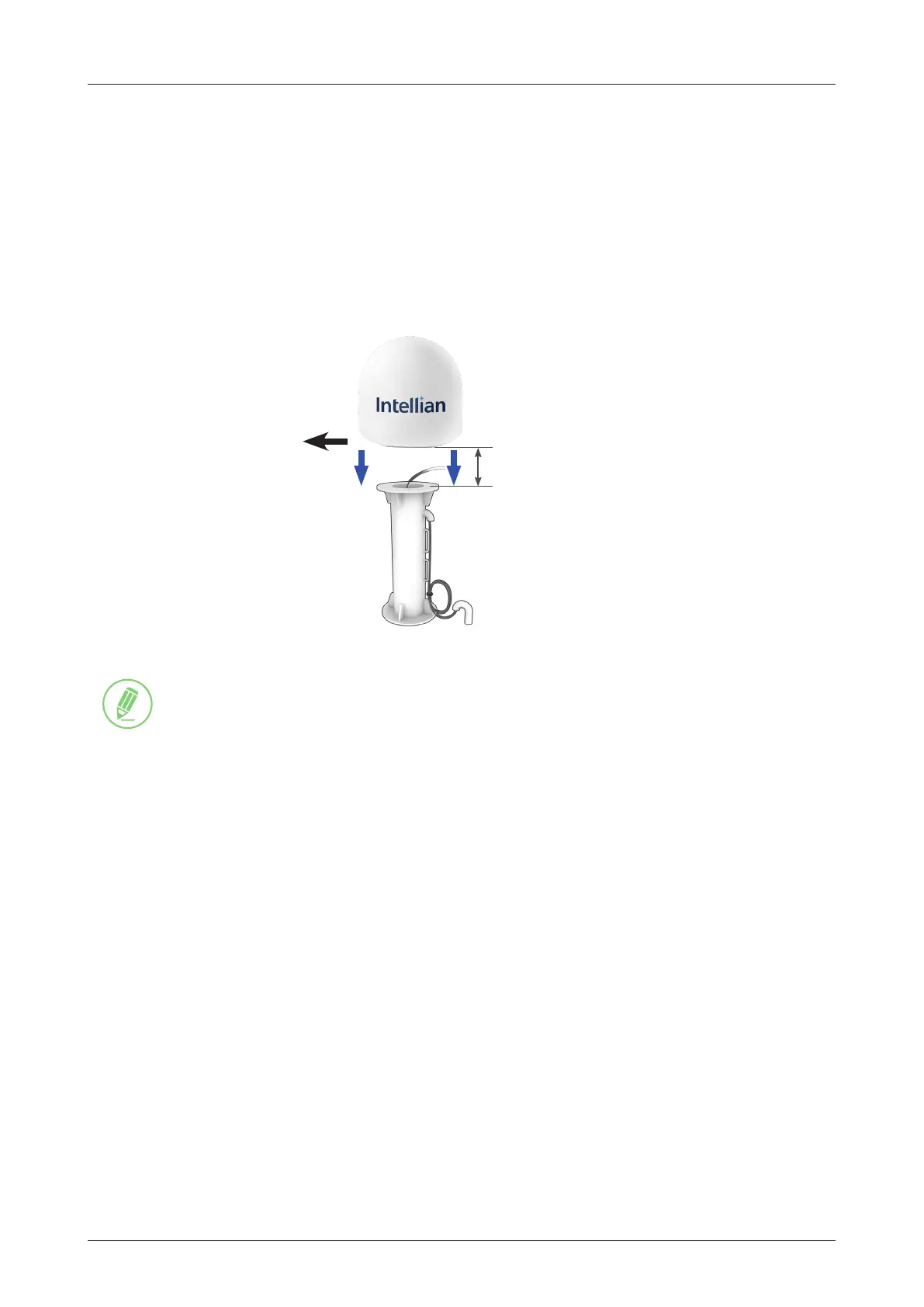

2. Lift the antenna above the mast using hands and carefully lower down the antenna toward the mast.
Maintain sufcient space (at least 150 mm) between the bottom of radome and the mast for cabling
work.
NOTE
NOTE
Position the antenna with the BOW direction parallel to the center line of the ship.
Sufcient Space
(at least 150 mm)
BOW
