Operating ACU
Chapter 8. Operating ACU
The following table shows status indicators on the ACU.
LED Indicator Color Description
POWER
Steady Green The ACU is powered on.
Off The ACU is powered off.
INT/SEARCH
Steady Green The antenna is searching a satellite.
Blinking The antenna is initializing.
TRACKING Steady Green The antenna is in tracking mode.
INT/SEARCH &
TRACKING
Blinking
Simultaneously
The antenna is in unwrap mode. The antenna is controlling
the adjustment of the AZ angle within the limits of movement
of the AZ control means to avoid the risk of cable twist.
LOCK Steady Green The satellite is locked.
SETUP/TEST
Steady Green The antenna is in Setup mode.
Blinking The antenna is in Test mode.
ERROR Steady Red The antenna is in error.
8.1 ACU Front Panel View
The following gure shows the ACU's front panel.

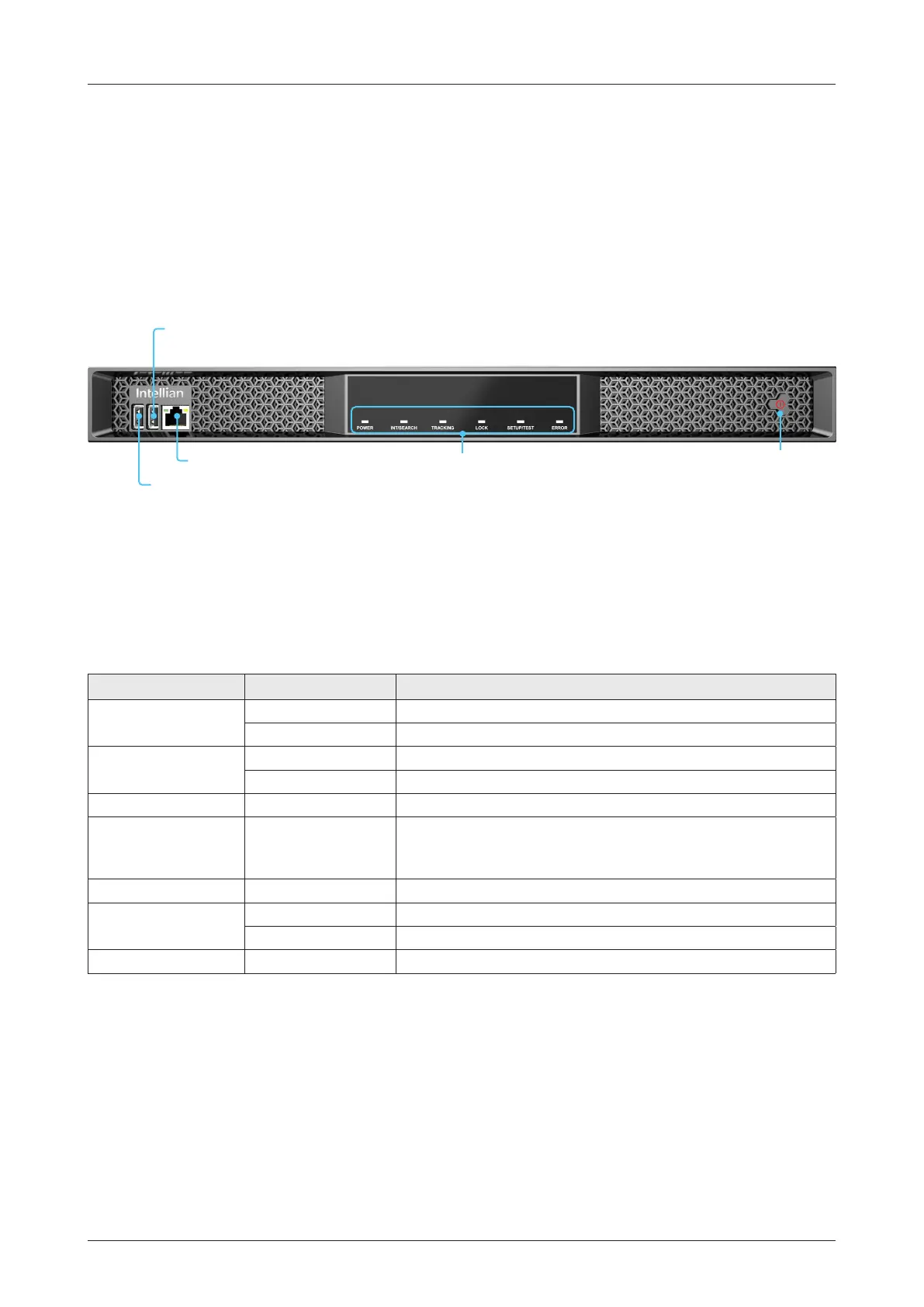

Figure 28: ACU Front Panel View
LED Indicators Power ButtonManagement Port
Right Side USB Port:
No Function
Left Side USB (Serial) Port:
For M&C by PC
