Installing Below Deck Unit (BDU)
6.3 Mounting ACU on 19-inch Rack
The ACU can installed to 19" rack using the two rack mount brackets which can be found from the ACU
box. Attach the rack mount brackets to the sides of the ACU using at head screws. Connect cables to the
back side of the ACU.
WARNING
WARNING
Ensure that the cables connected to the ACU are long enough to prevent damage when the ACU
is pulled out from the rack.

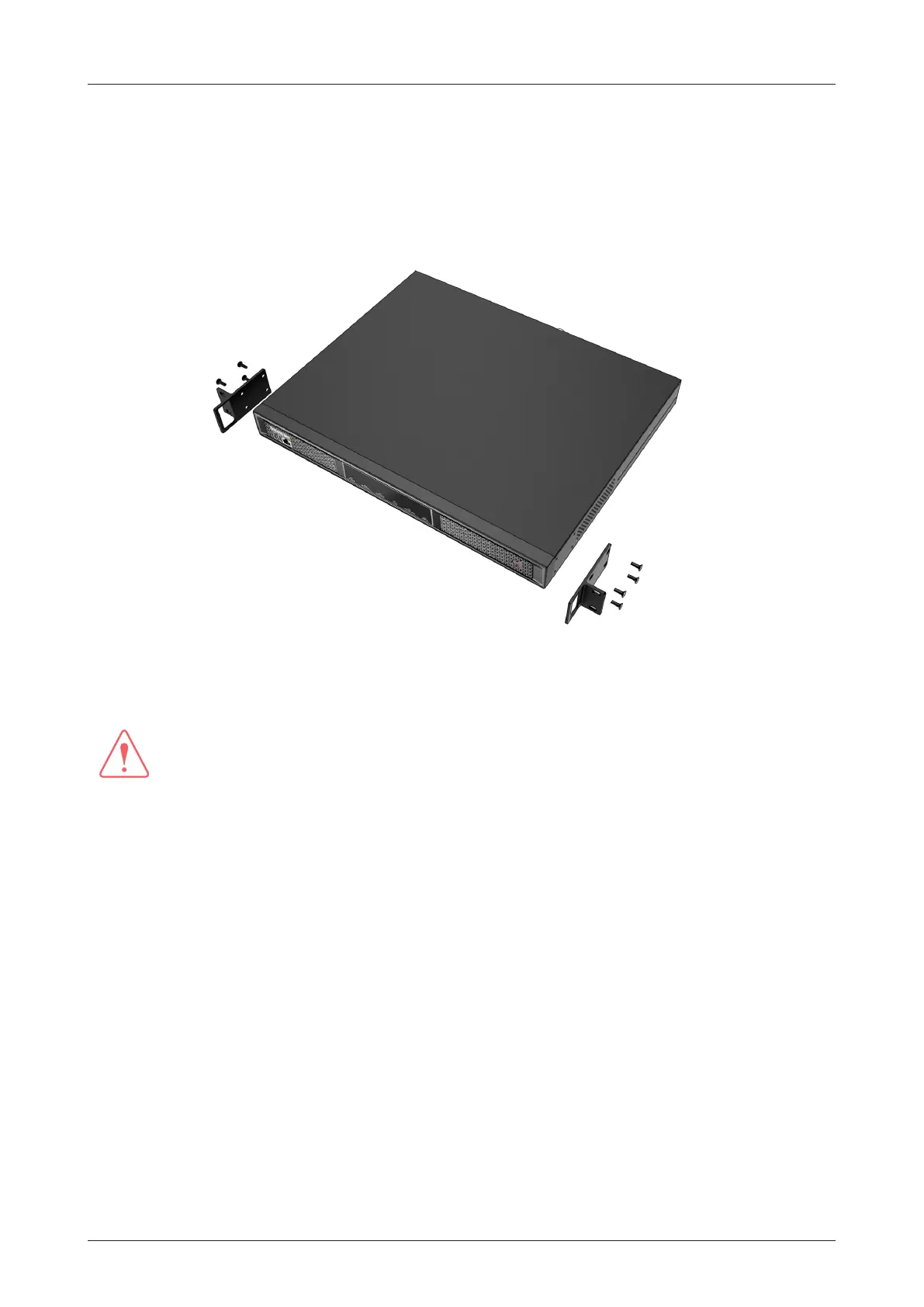

Figure 17: 19-inch Rack Mount ACU
