Intellian v45C - 9.10.2 Antenna Setting

78
v45C - Maritime VSAT Antenna System

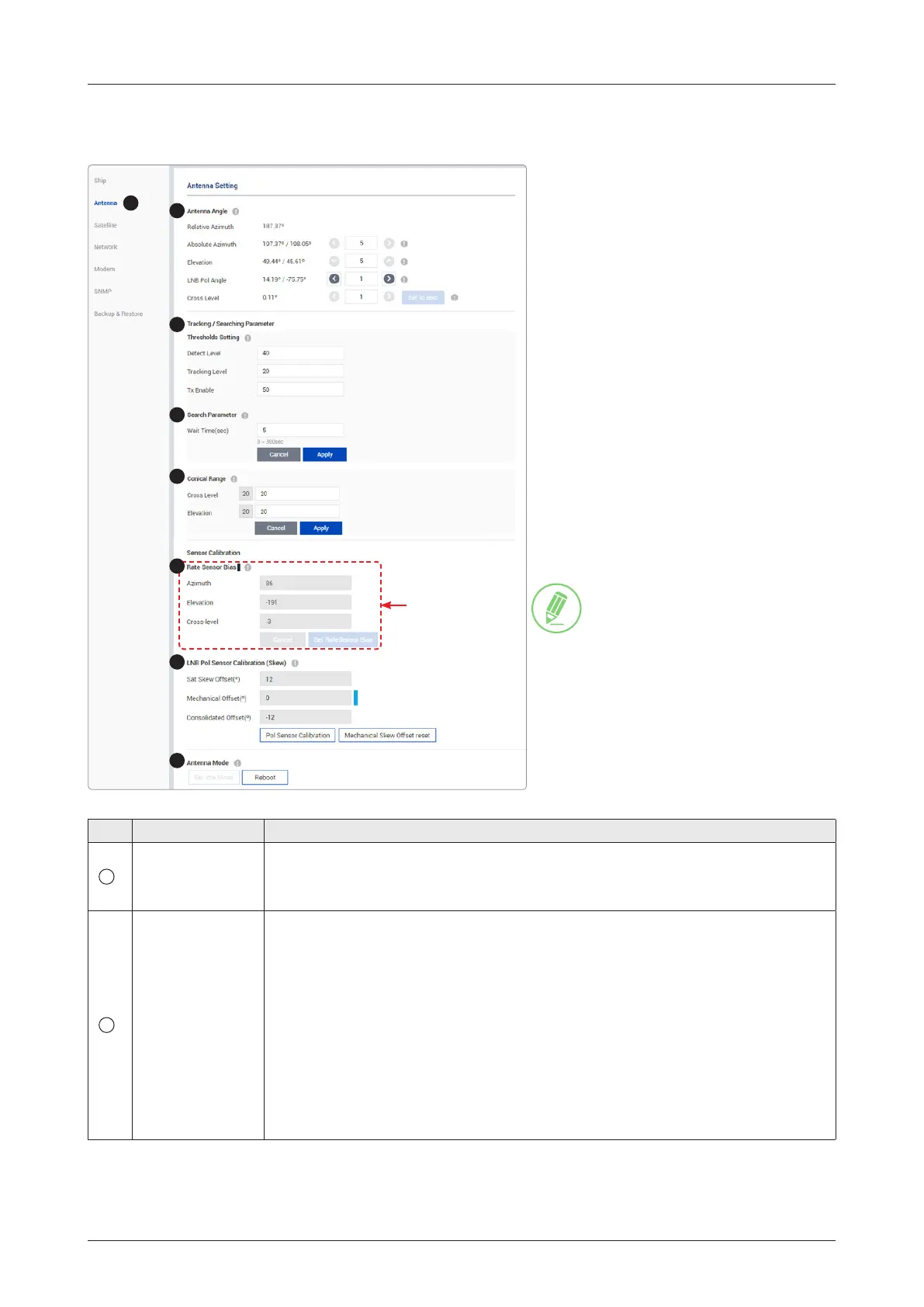

9.10.2 Antenna Setting
No. Item Description
1
Antenna Setting
Sets current antenna position and search parameters.
These parameters should only be changed by an authorized service technician.
Improper setting of these parameters will render your system inoperable.
2
Antenna Angle
Enter Setup Mode to modify settings.
Sets current antenna position and LNB pol angle. You can move the antenna's
azimuth, elevation, and cross level position and LNB pol angle by using the
arrows or inputting a value to nd the desired satellite manually.
• Relative Azimuth: Displays the antenna relative azimuth angle.
• Absolute Azimuth: sets the antenna absolute azimuth angle.
• Elevation: sets the elevation angle.
• LNB Pol Angle: sets the LNB pol angle.
• Cross Level: sets the cross level angle. Click the Set to zero button to set a
zero angle automatically.
NOTE
NOTE
This function must be used by
experienced engineers only.
1
2
3
4
5
7
8
NOTE
6
