v45C - Maritime VSAT Antenna System

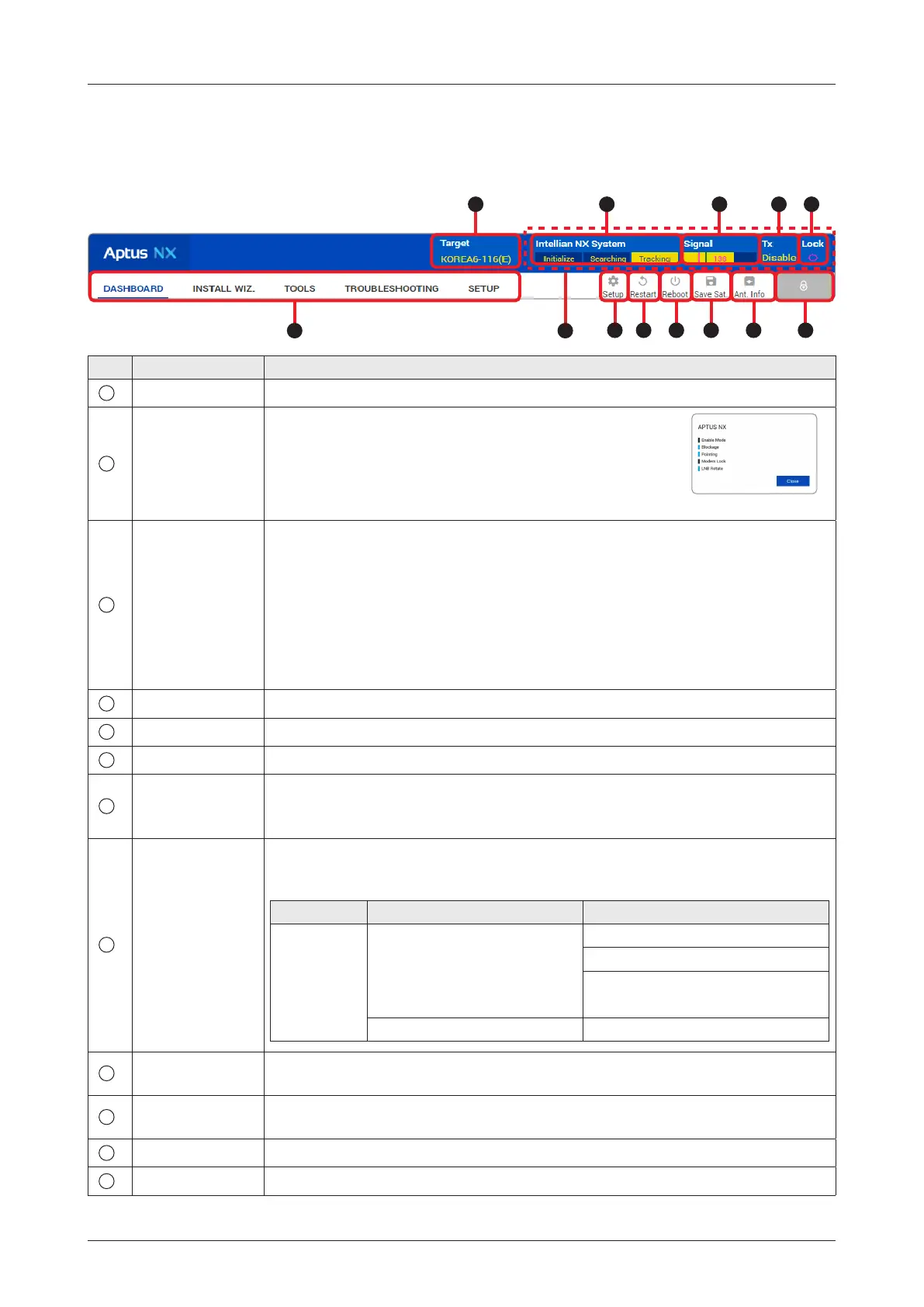

9.4 Top Menus
Once you log in, the following information and menus are displayed.
No. Item Description
1
Target Satellite Displays the name of the targeted satellite.
2
Quick Status
Screen Area
When clicking this top menu area (marked as red dots),
the Quick Status Screen appears. You can quickly
monitor each status of the ve items through the screen
(Blue: enable, Black: disable).
<Quick Status Screen>
3
Antenna Status
Info
Displays the antenna status through a yellow indicator in the SETUP mode.
• Initialize: the antenna system is initialized.
• Searching: the antenna is searching the target satellite.
• Tracking/Unwrap
- Tracking: the antenna is tracking the target satellite.
- Unwrap: in the tracking mode, antenna automatically controls adjustment
of the AZ angle within the limits of movement of the AZ control means to
avoid the risk of cable twist.
4
Signal Level Displays the current signal level.
5
Tx Status Displays whether the antenna is able to transmit data or not.
6
Lock Displays whether the satellite is locked or not.
7
Main Menu
Selects the Main Menu (DASHBOARD, INSTALL WIZ, TOOLS,
TROUBLESHOOTING, SETUP). Each main menu offers side menus on the left of
the screen.
8
Setup
Enters the setup mode to modify settings. The following functions are available
only in setup mode.
Main Menu Side Menu Function
SETUP Antenna Antenna Angle
Conical Scan Range Check
Antenna Mode
• Sets Idle Mode
Backup & Restore Setting Antenna Restore
9
Restart
The antenna system exits the Setup mode and switches to the normal mode
(Searching/Tracking mode).
10
Reboot
The antenna system powers off and restarts. After system initialization, the
antenna switches to normal mode (Searching/Tracking mode).
11
Save Sat. Saves bow offset.
12
Ant. Info Obtains current antenna information.
1 3
2
5 6
7
8 9 1110 12 13
4
