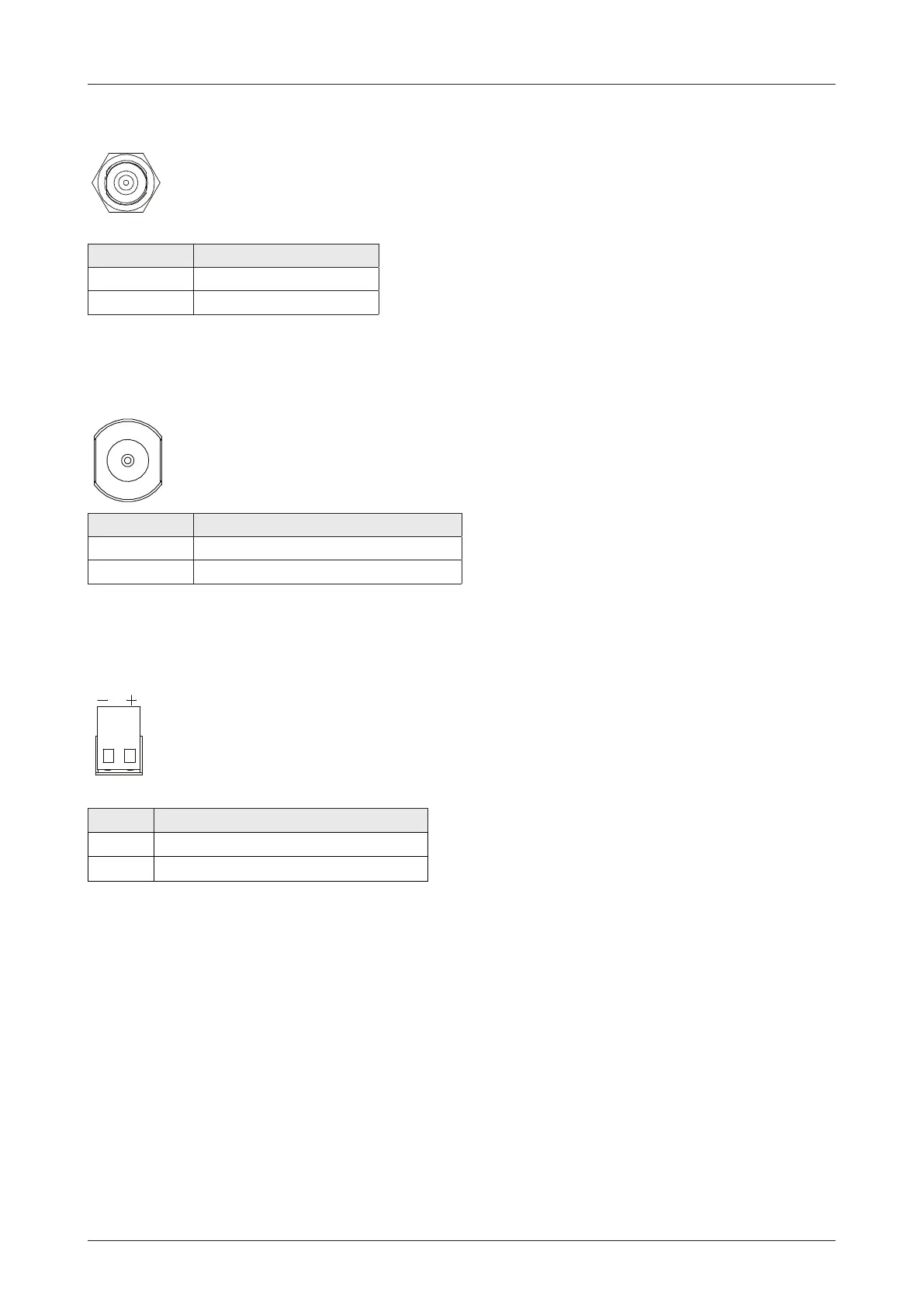

v45C - Maritime VSAT Antenna System
• Modem Rx and Tx Connectors
RF F Type Female
Conductor Function
Inner DATA
Outer GND
• Antenna Connector
RF N Type Female
Conductor Function
Inner RX, TX, FSK, REFERENCE, POWER
Outer GND
• NMEA 0183 Input
2-Pin Terminal Block
Pin Signal
- HEADING GND
+ HEADING IN
