47
Operating Install Wizard
ü

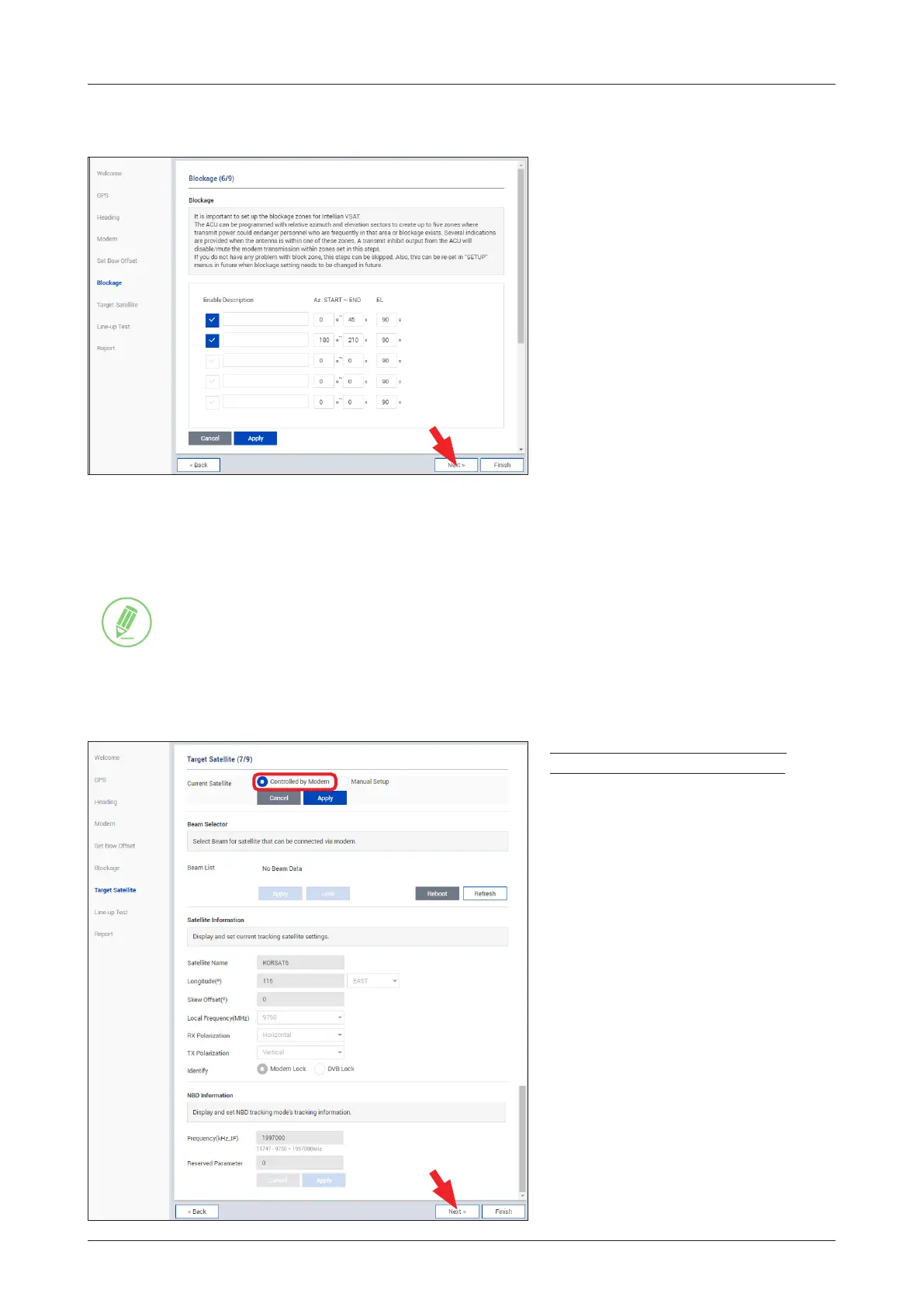

Step 5: Blockage
It is important to set up the blockage
zones for Intellian VSAT. The VSAT system
can be programmed with relative azimuth
and elevation sectors to create up to ve
zones for the transmission mute.
The AZ START is the relative azimuth
angle where the blockage starts, and
the AZ END is the relative azimuth angle
where the blockage ends (Range: 0 ~ 360).
The EL is the elevation angle where the
blockage is set (Range: 0 ~ 90). The
blockage is activated below the elevation
angle.
Click the Next button to go to the next
step.
* This function is not supported
depending on the modem type.
This method is generally recommended.
Select the Controlled by Modem for
the Current Satellite. Then, the current
satellite and NBD information will be
displayed automatically.
Click the Next button to go to the next
step.
ü
Step 6: Target Satellite
Set the target satellite to track. There are two methods for selecting a target satellite.
NOTE
The following images in this step show when the Open AMIP modem is used.
(Option 1: Using Satellite Controlled by Modem)
To Next Page
