Planning Installation
Antenna Dimensions
Conrm the height and diameter of the bottom surface of the antenna unit before installing it. The mounting
surface and overall space occupied by the antenna must be sufcient for the height and diameter of the
fully constructed radome on top of its base frame. The height and the diameter of the bottom surface of the
antenna are as shown in the following drawing. It is strongly suggested that the installation is conducted using
a crane.

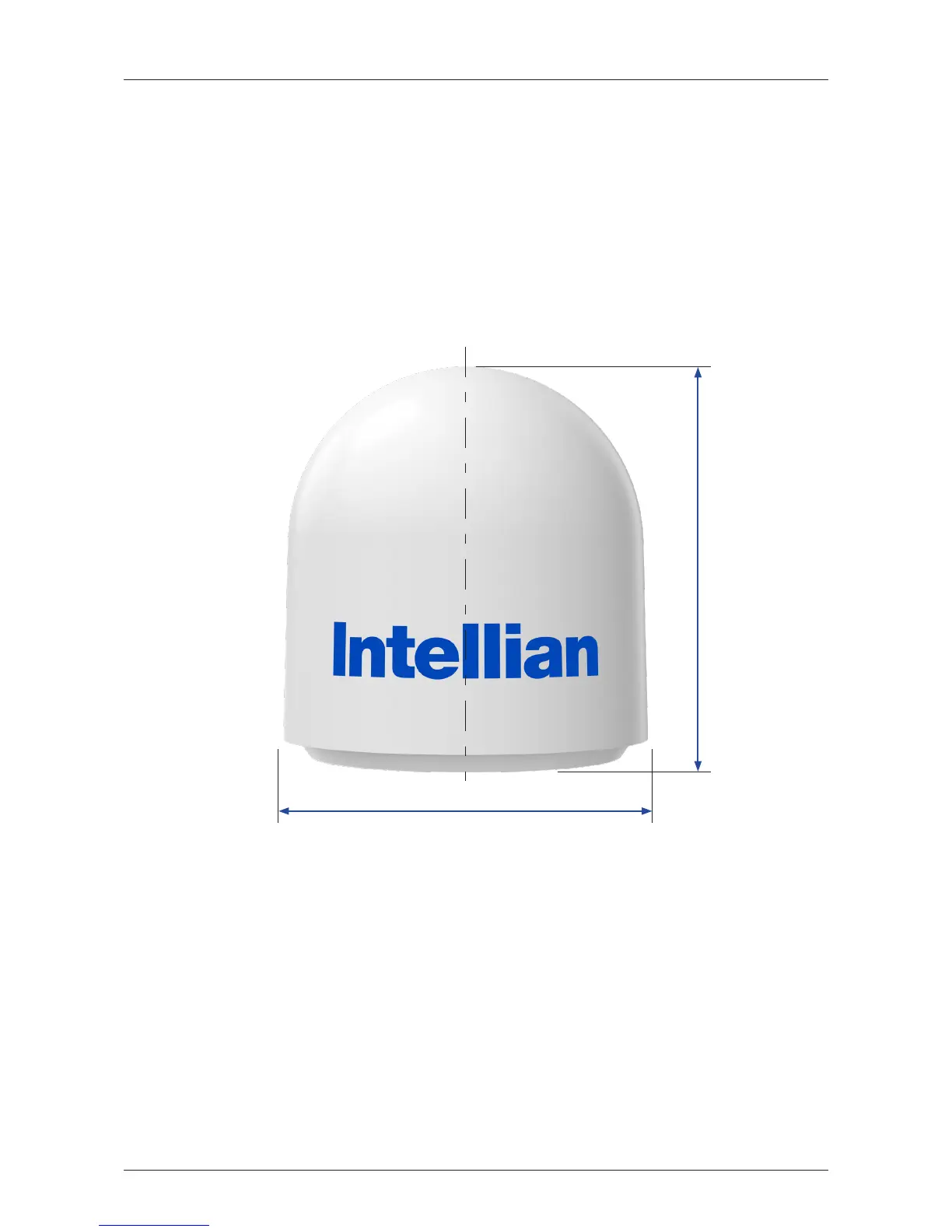

Figure: Antenna Dimensions
Antenna Specication
1229mm (48.38")
Ø1131mm (44.52")
