17
Planning Installation
1000mm (39.37")
840mm (33.07")
200mm (7.87")
Min. 10mm (0.4")
Max. 20mm (0.8")
ø22mm (0.86")
ø200mm (7.87")
4- ø13mm (0.51")
247.5mm (9.74")
247.5mm (9.74")
80mm (3.14")
BOW
BOW
Option2. When Placing Cable Outside Mast

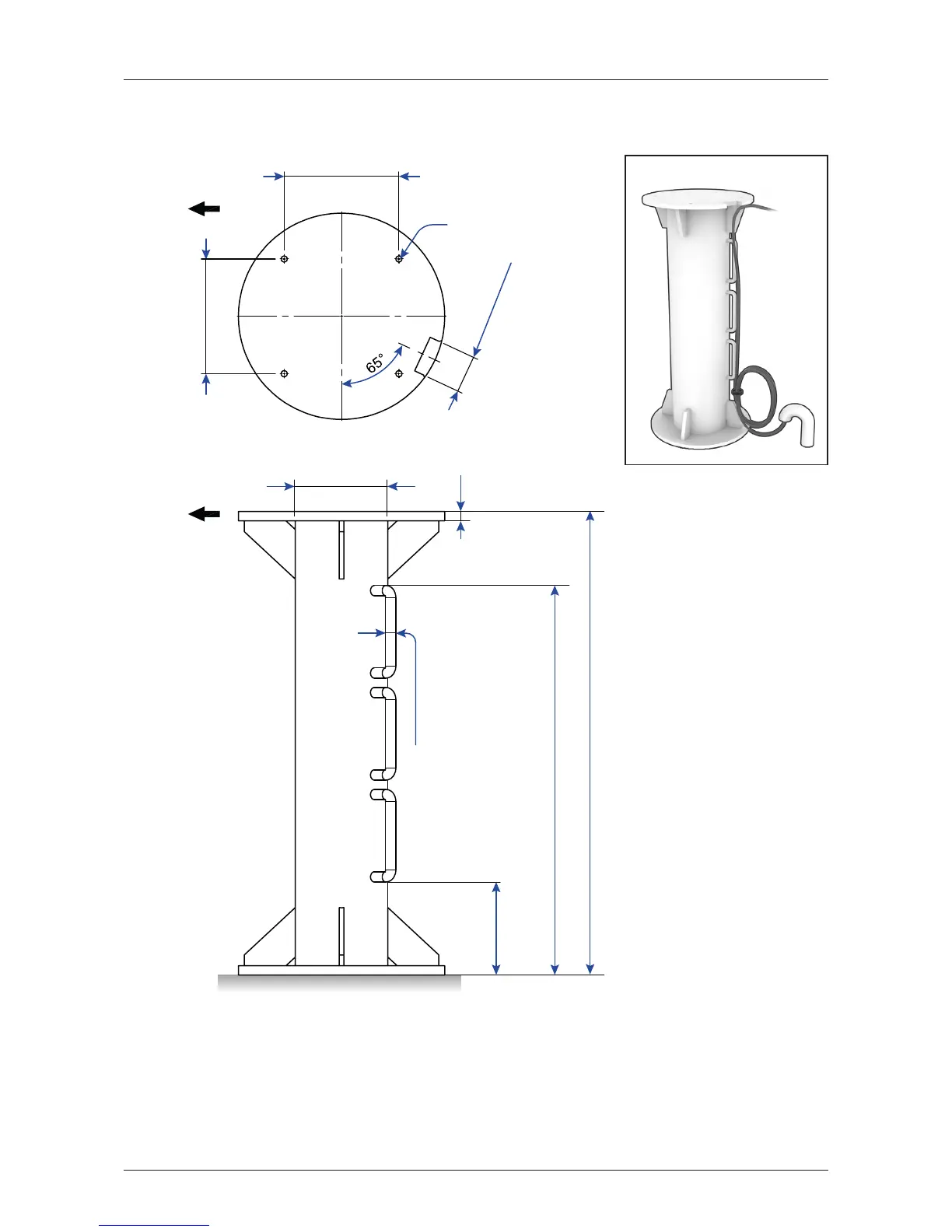

Figure: Recommended Size of Mast (Option2)
