DIAGNOSIS
DIAG ALL
USB Function
SNR F:12.490/11.300 RX:H TX:V
TRACKING 062.2 E
HDG:120.4
GPS:
P
To use this function, a USB Memory Stick is connected to the USB port (located on the right USB Port of front
of ACU). The USB Function supports the four menus (LOG DOWNLOAD, FIRMWARE UPLOAD, BACKUP TO
USB, RESTORE FROM USB). For detailed information about each function, refer to the next page.
INTERFACE
MODEM: IDIRECT-AMIP
HEADING: NONE NETWORK: 1-3-
USB FUNCTION
USB SEL
PRODUCT : xx
ANT: V0918070001 VER 1.00/1.00
ACU: V0918070001 VER 1.00/1.00

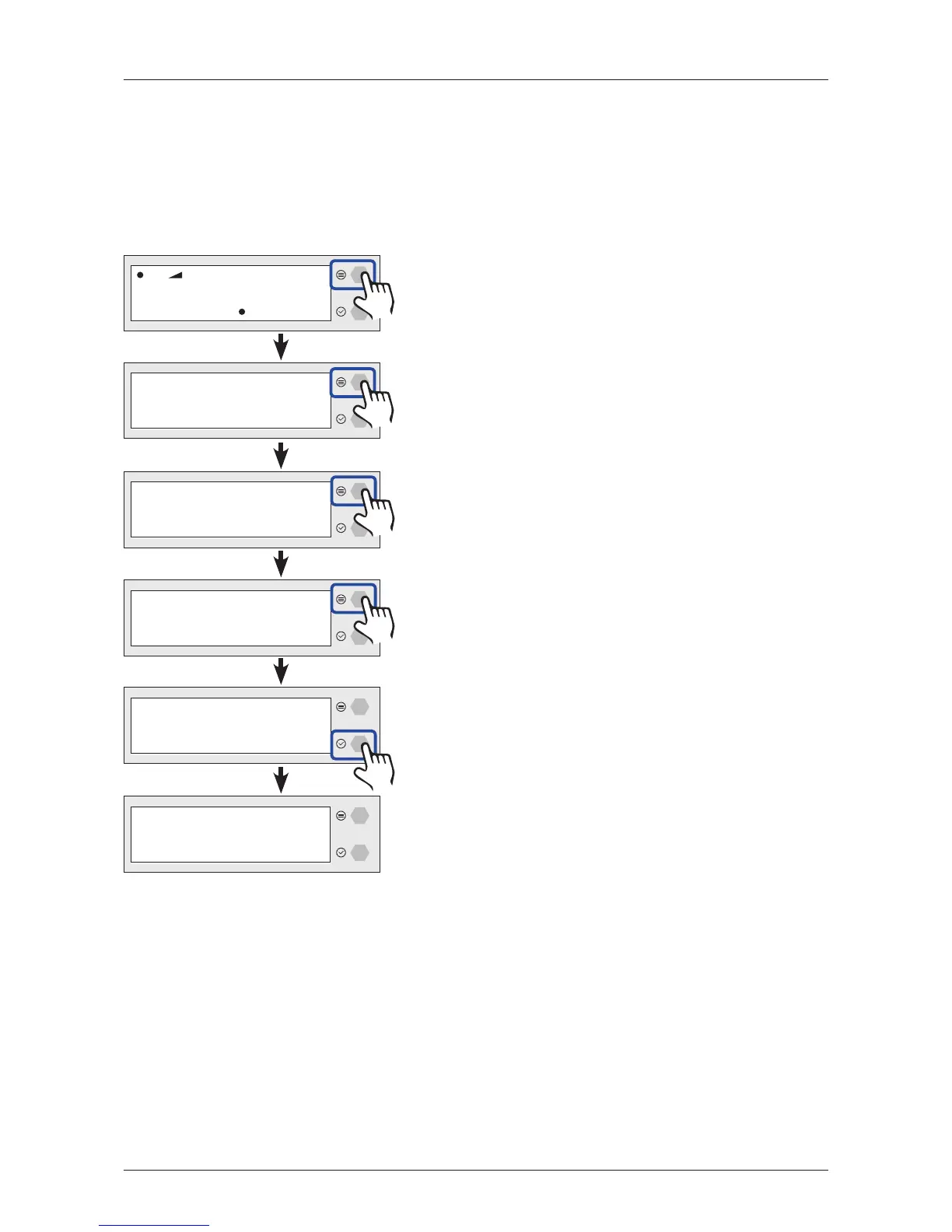

Press
Move Key
Press
Move Key
Press
Move Key
Press
Move Key
Press
Select Key
ü
Main Display
ü
Diagnosis Display
ü
Antenna Information Display
ü
Interface Information Display
ü
USB Function Display
ü
USB Function Menu Display
USB FUNCTION
BACK
LOG DOWNLOAD FIRMWARE UPLOAD
BACKUP TO USB RESTORE FROM USB
To Next Page
