Intellian v85NX User Manual

33
Installing ACU
System Congurations
For your satellite communication system to work properly, the system will have to be connected with all of the
provided components as shown in the gure below. Separate purchase of a satellite modem, switch router
and ship's gyrocompass may be required.
Single Antenna System Conguration (Basic Antenna System)
The Basic system conguration consists of one VSAT antenna and one ACU. The conguration is as shown
below.

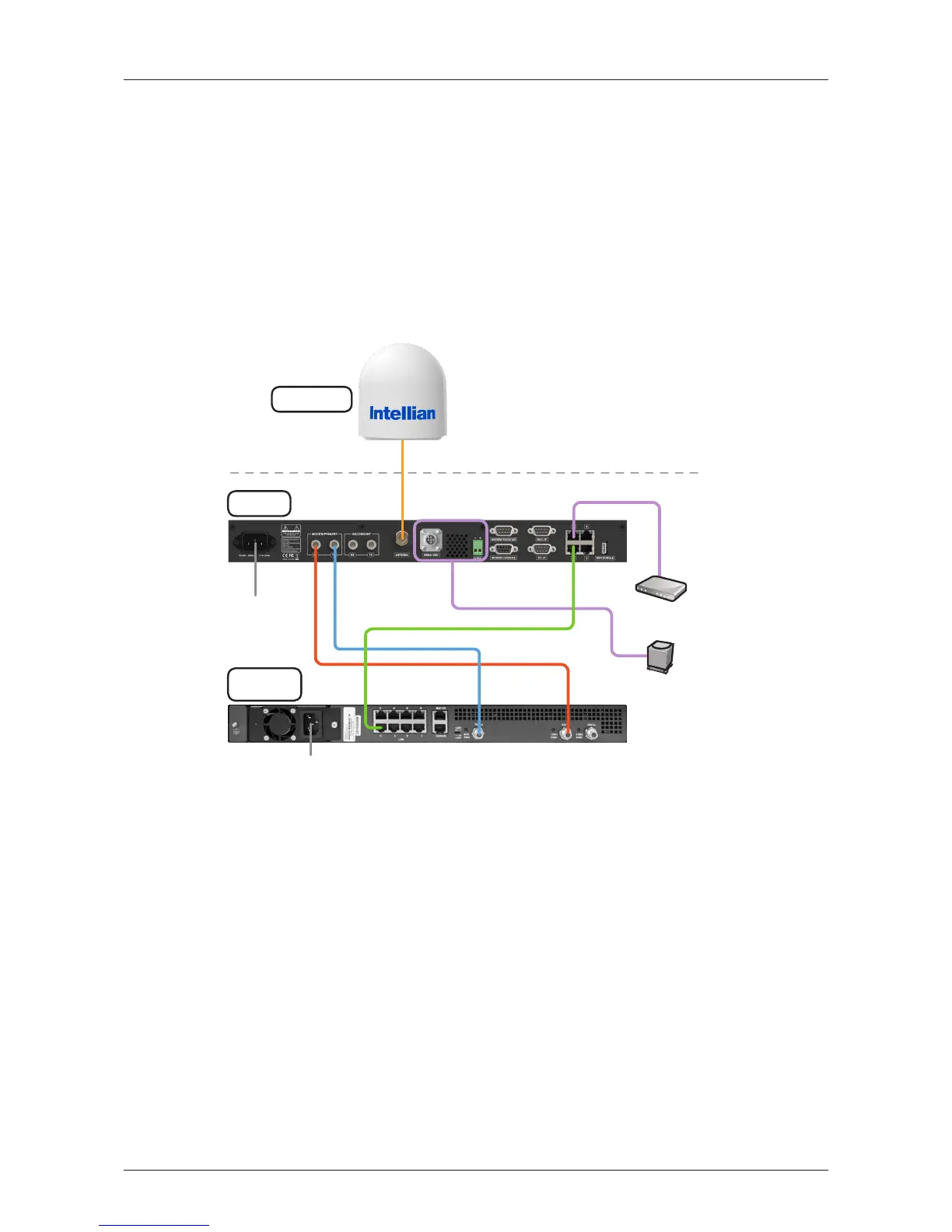

Figure: Single Antenna System Configuration (Basic Antenna System)
Above Decks
Below Decks
ACU
Antenna
Modem
(Not supplied)
TX RX
Antenna
TX, RX, 48V DC Power
OpenAMIP
AC 100~240V
AC 100~240V
Switch Router
(Not supplied)
Ship's Gyro
(Not supplied)
LAN 1
LAN 2
NMEA Input
2000/0183(GYRO)
Modem
Tx
Modem
Rx
