Intellian v85NX User Manual

58
Operating ACU
SNR F:12.490/11.300 RX:H TX:V
TRACKING 062.2 E
HDG:120.4
GPS:
P

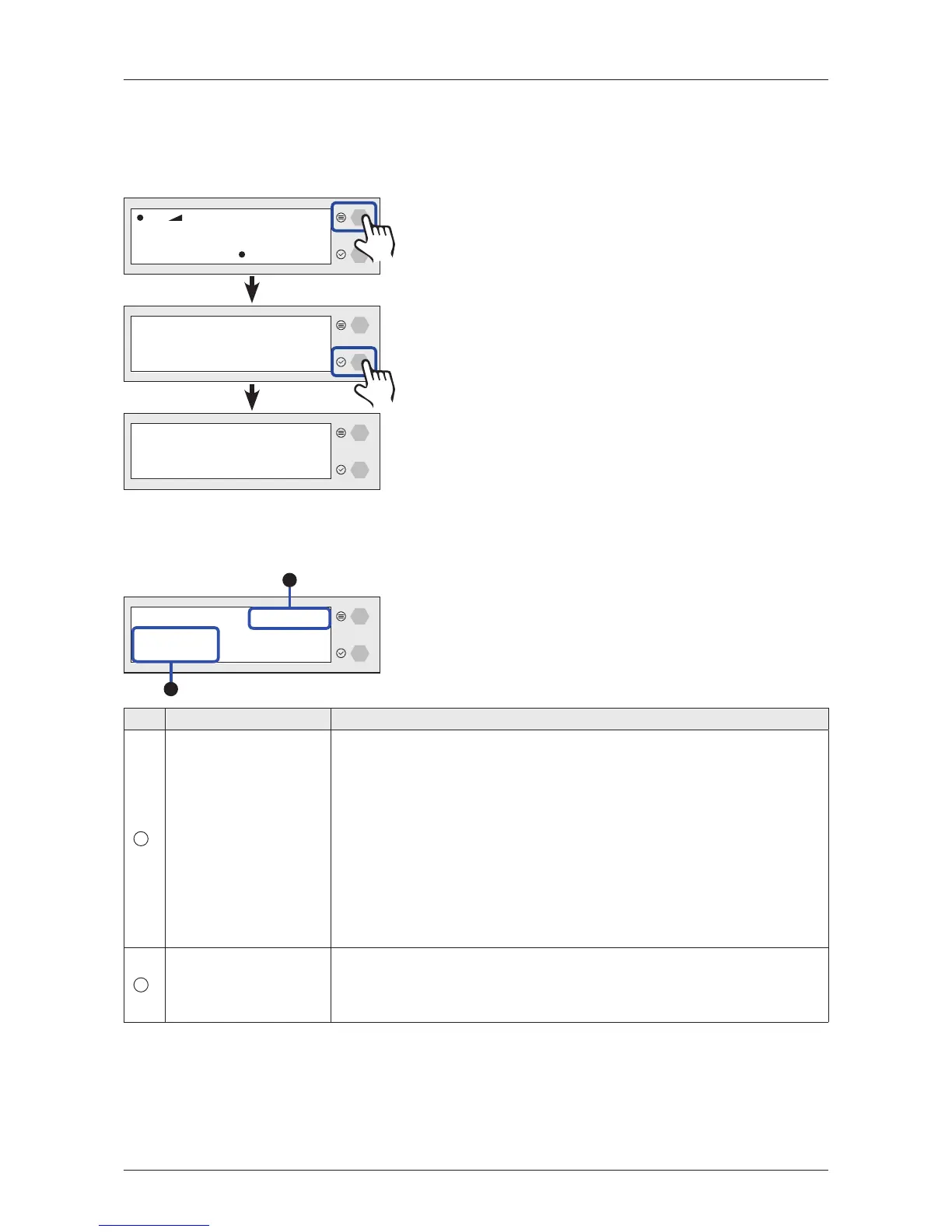

Executes antenna Diagnosis test and shows the real-time diagnosis result.
Diagnosis
DIAGNOSIS
DIAG ALL
DIAG : CODE 101
1 - - - 5 O O O O O
O O O O O O
Press
Move Key
Press
Select Key
Refer to the diagnosis codes for the test results.
DIAG : CODE 101
1 - - - 5 O O O O O
O O O O O O
2
1
ü Main Display
ü Diagnosis Display
ü Diagnosis Result Display
No. Item Description
1
Diagnosis Code
Displays the diagnosis code.
• CODE 101: the data communication between the antenna and the ACU
is tested.
• CODE 102: the azimuth axis is tested.
• CODE 103: the elevation axis is tested.
• CODE 104: the cross-level axis is tested.
• CODE 107: the rate sensor is tested.
• CODE 110: the LNB / NBD is tested.
• CODE 111: the LNB pol motor is tested.
• CODE 113: the antenna power is tested.
• CODE 114: the ACU power is tested.
• CODE 116: the home sensor is tested.
2
Diagnosis Result
• An example of test result: 1 - - - 5 O O O O O
- ' - ' : the test has passed.
- ' # ' : the test has failed (CODE102).
- ' O ' : the test is not performed.
