Installing ACU

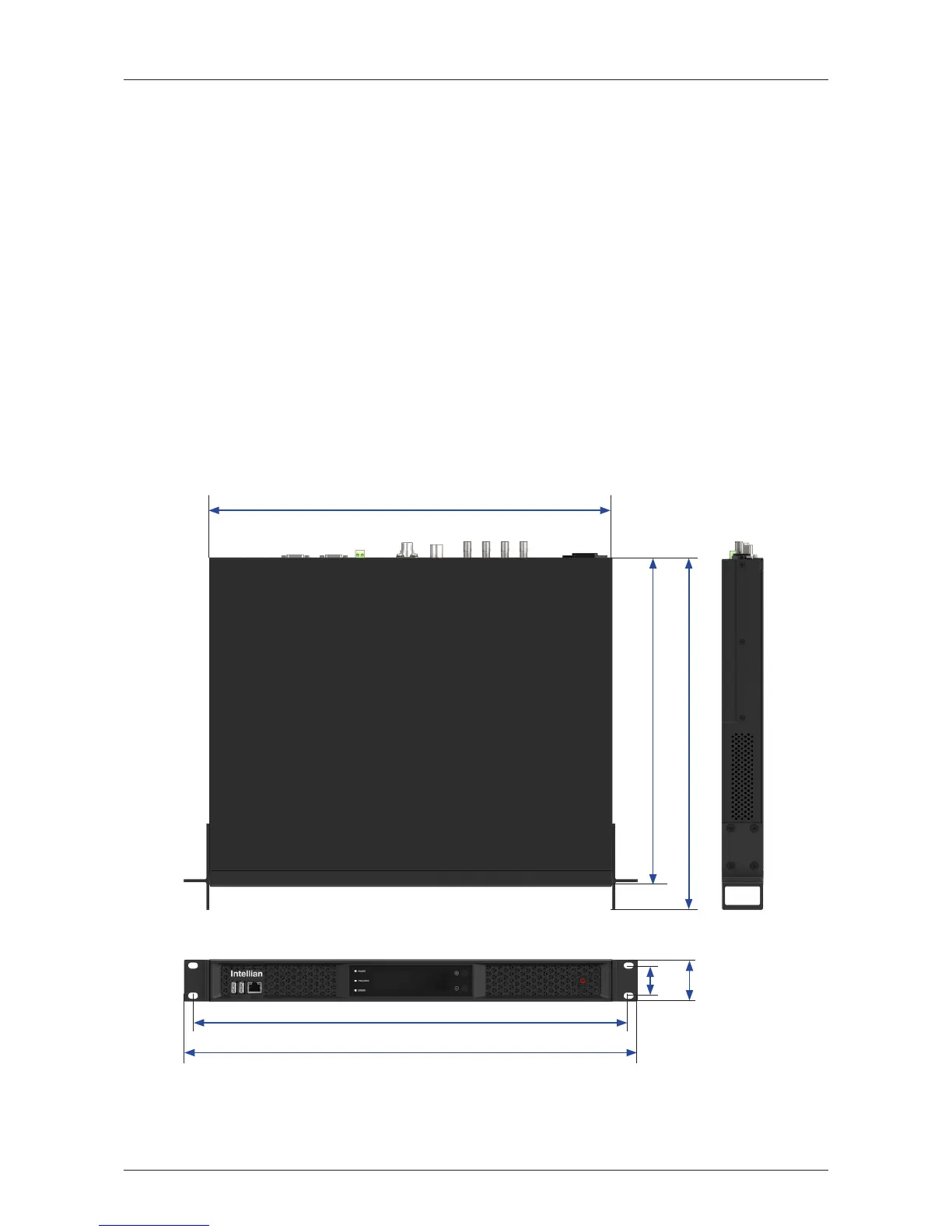

Figure: ACU Dimensions
350mm (13.77") 376mm (14.80")
32mm (1.25")
44.3mm (1.74")
466mm (18.34")
431mm (16.96")
485mm (19.09")
ACU Dimensions
Conrm the dimension of the ACU before installing it.
Installing ACU
Selection of ACU Installation Site
The ACU should be installed below deck, in a location that is:
• Dry, cool and ventilated.
• The front panel should be easily accessible to users.
