Operating ACU
Startup

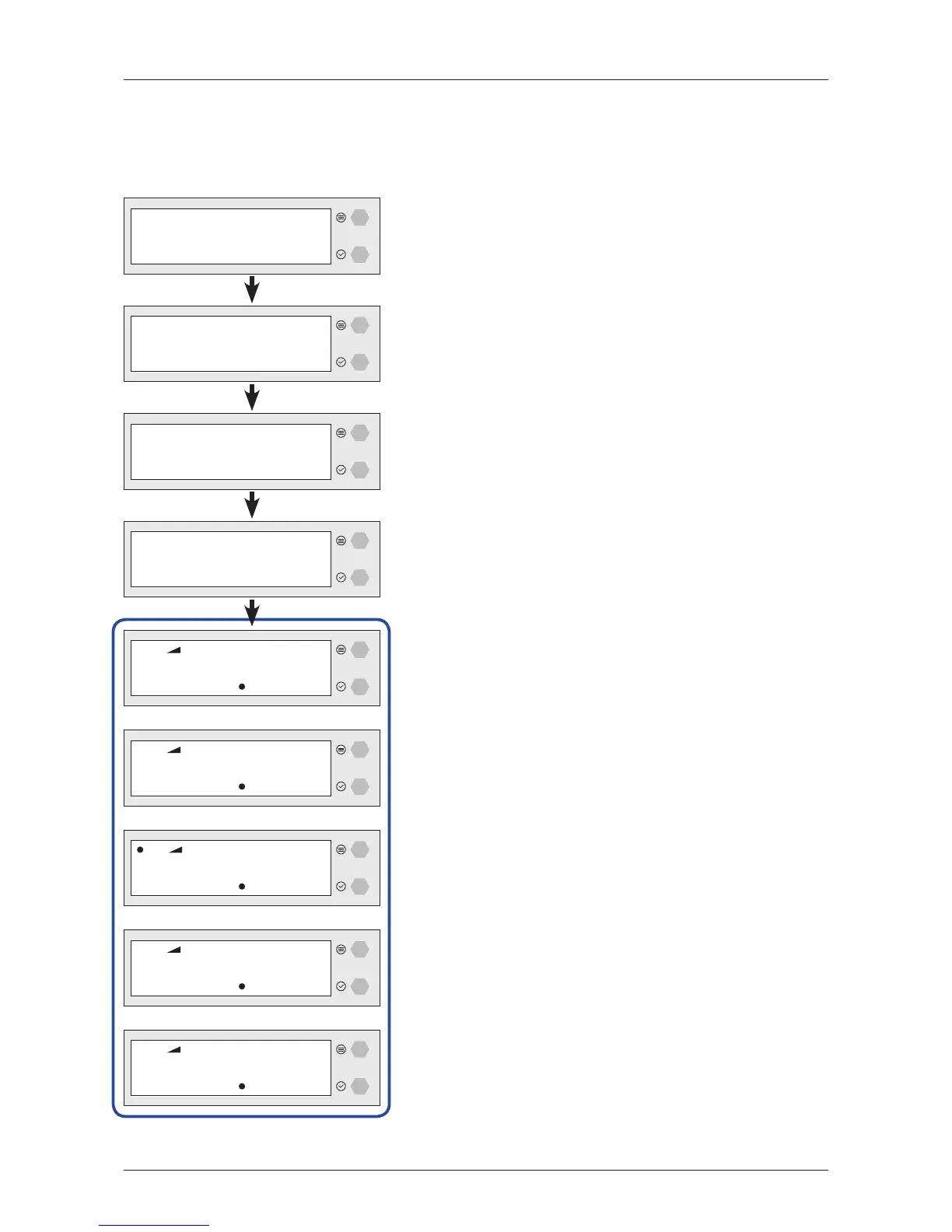

With the system installed and power applied, the ACU display will show the following sequence.
Intellian
EL INITIALIZE
ANTENNA INFO
AZ INITIALIZE
ü Startup
ü
Initialize Antenna Information
("Intellian XXXX" will appear. The "XXXX" is the model name.)
ü Initialize Elevation Angle
ü Initialize Azimuth Angle
ü Antenna's Status
(in Search 1 (Global Search), Search 3 (Local Search),
Tracking, Beam Switching, Blocking)
SNR F:12.490/11.300 RX:H TX:V
SEARCH 1 062.2 E
HDG:120.4
GPS:
P
SNR F:12.490/11.300 RX:H TX:V
TRACKING 062.2 E
HDG:120.4
GPS:
P
SNR F:12.490/11.300 RX:H TX:V
BEAM S/W 062.2 E
HDG:120.4
GPS:
P
SNR F:12.490/11.300 RX:H TX:V
SEARCH 3 062.2 E
HDG:120.4
GPS:
P
SNR F:12.490/11.300 RX:H TX:V
BLOCKING 062.2 E
HDG:120.4
GPS:
P
