Item Description
Native VLAN ID See previous trunk port section.
VLAN TAG VLAN ID that is added to any untagged packet arriving at the port. Note: Though the
web interface may say otherwise, you cannot enter multiple IDs or ranges of IDs.
Allowed VLAN IDS Enter the IDs of all VLANs that you wish the hybrid port to forward. All other tagged
packets will be dropped.
Port Description The name of the port as dened in HOME section of this manual
Add TAG VLAN VLAN ID that is added to untagged VLAN packets.
Allowed TAG VLAN Tagged VLAN packets that are allowed to pass through, all other tagged packets will
be dropped.

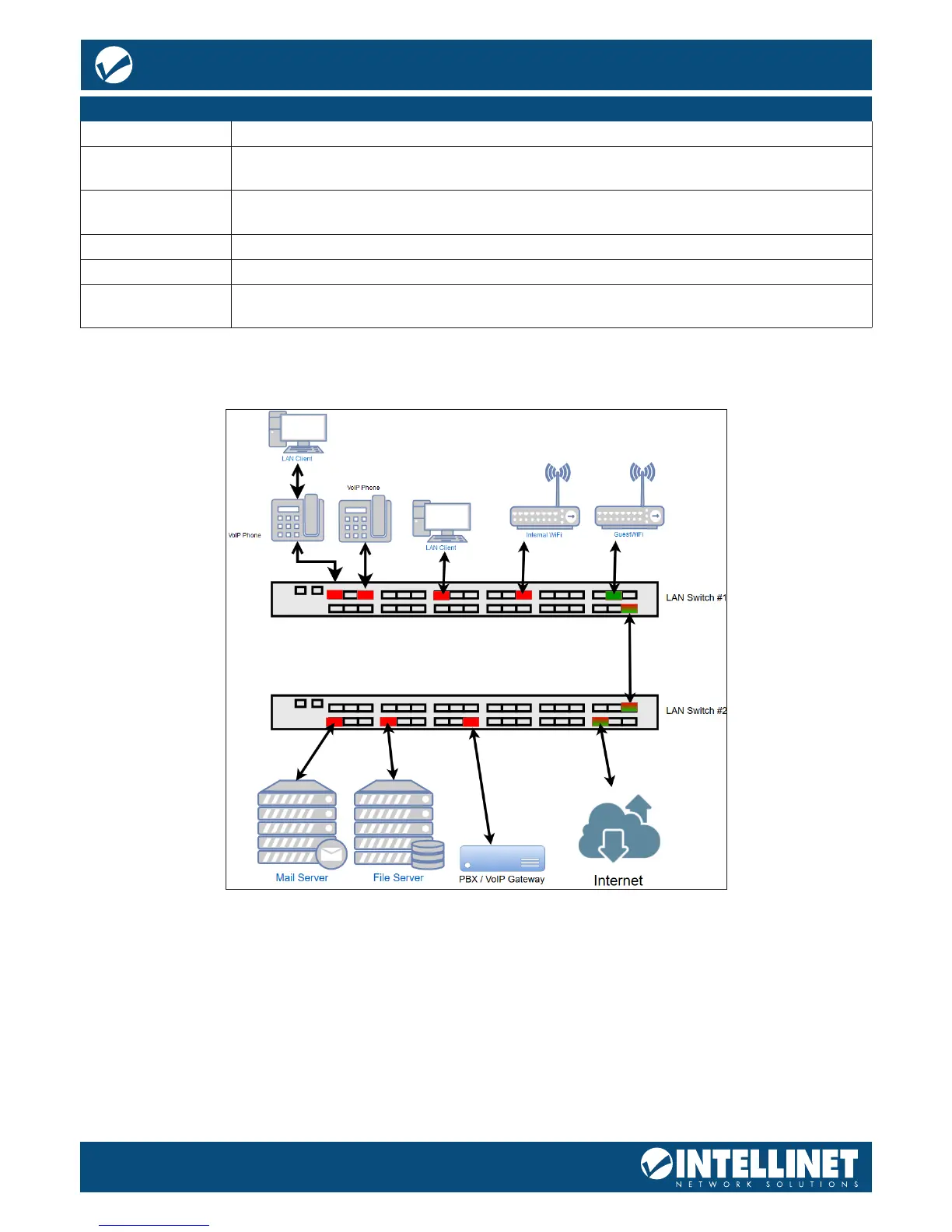

Setup Example
This section provides a real-life example and the corresponding setup of the Intellinet Network Solutions
switch, or in this case, switches.
• There are three VLANs in the network
• VLAN ID 100 – Internal data network with access to Internet
• VLAN ID 200 – VoIP network
• VLAN ID 300 – Guest network provides Internet access, but nothing else
• LAN Switch #1:
• Port 2: VoIP phone using VLAN ID 200, PC connected to back of phone
• Port 6: VoIP phone using VLAN ID 200
• Port 8: PC
• Port 10: Wireless access point for internal network and access to Internet
• Port 12: Guest wireless access point provides Internet access only
• Port 16: Connection to LAN switch #2
