Connector

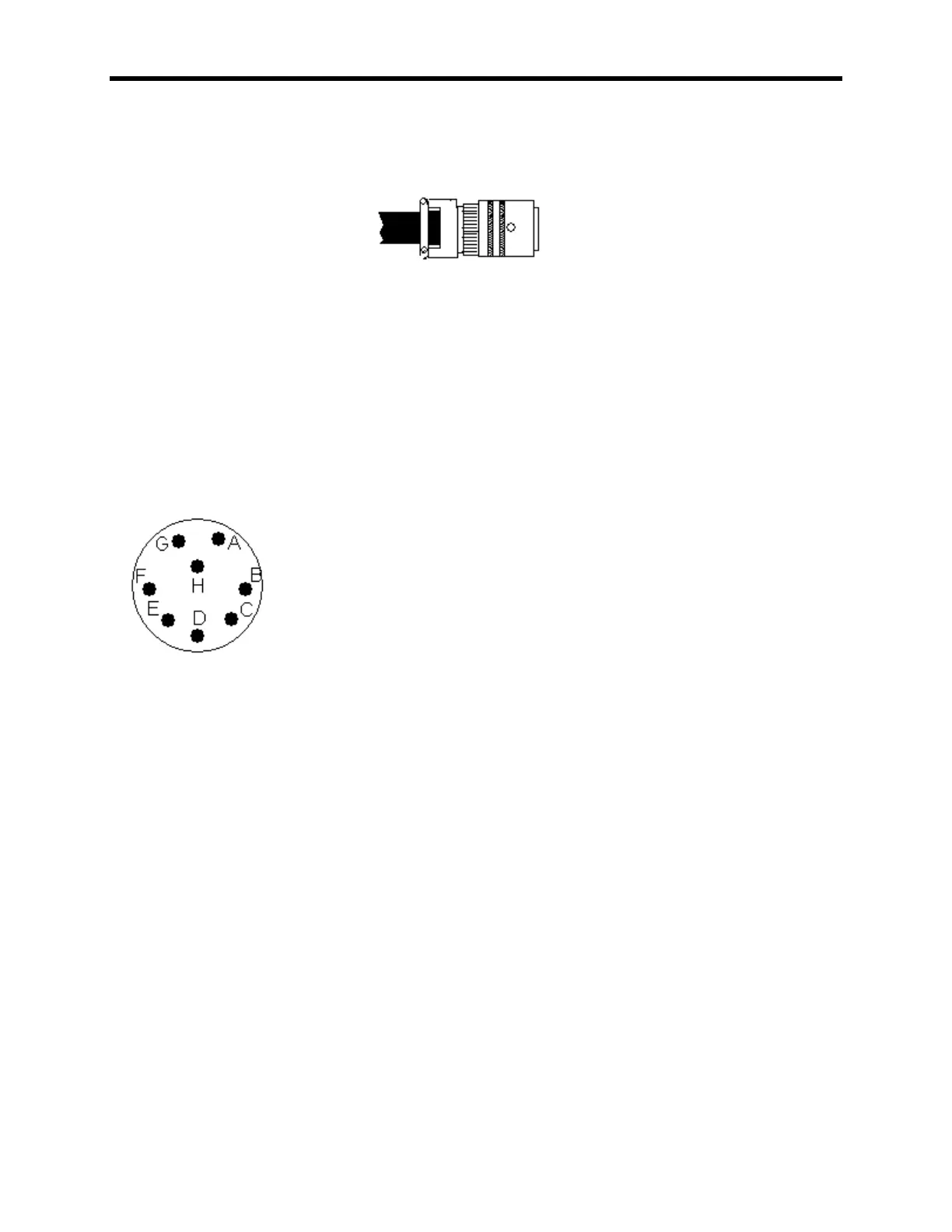

The diagram below shows the pin-out for the PT connector on the side of the LP600:
PT connector
A: RS-485 A
B: TXD (RS232)
C: - Charging Voltage
D: none
E: +Charging Voltage
F: Ground
G: RS485 B
H: none
