Inside the enclosure there are several 2-holed
insertion points. These allows for either vertical or
horizontal placement of legacy NX modules. Each
insertion point has a larger hole and a smaller hole.

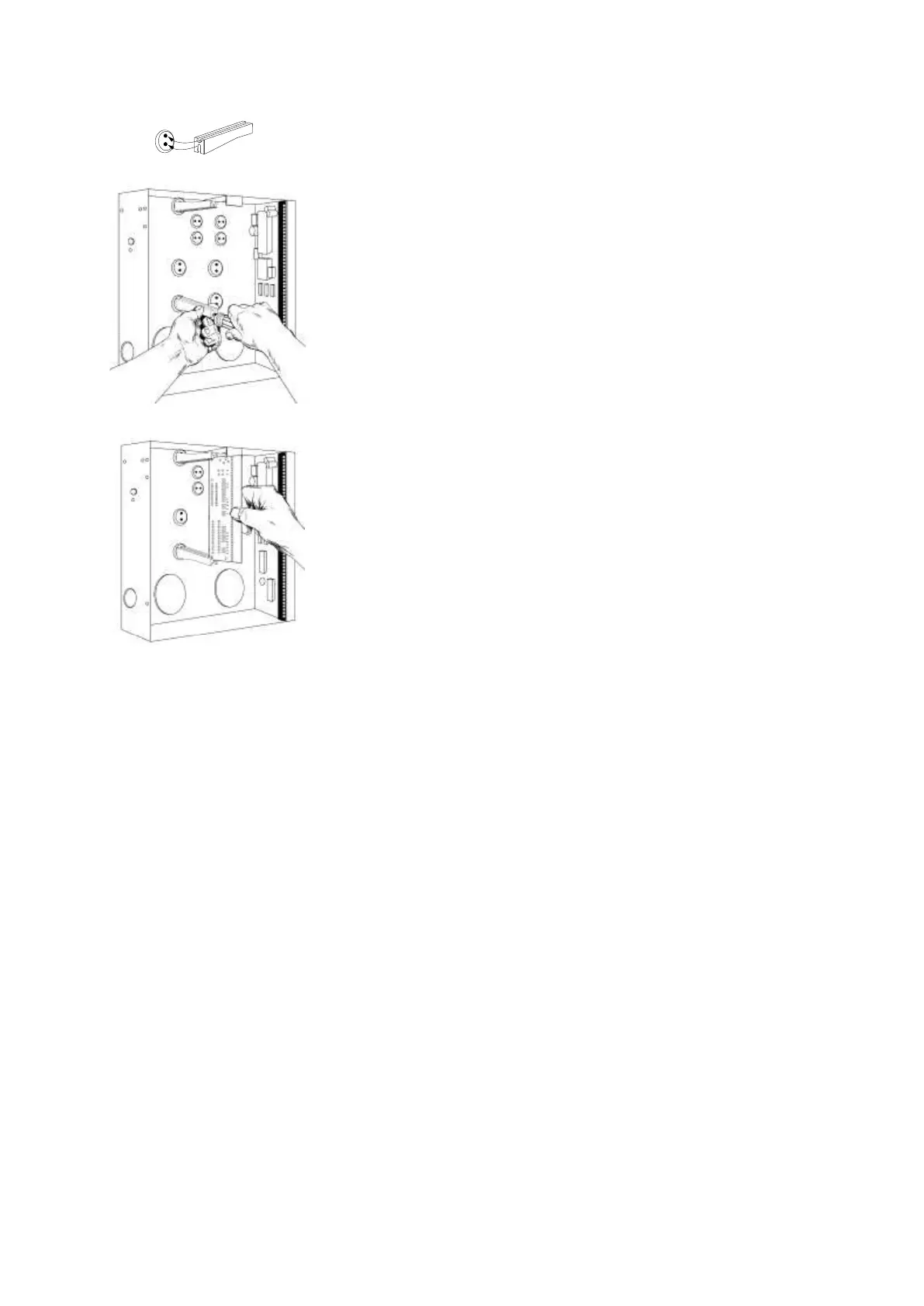

1. The black plastic PCB guides feature a groove to
hold an expansion module. The end with the half-
moon protrusion fits into the larger hole. The
smaller hole is for the screw.
2. Place the first black plastic PCB guide in the top
insertion point, groove facing downward. The half-
moon protrusion will be in the large hole. It does
not require force to insert. Insert one of the
provided screws into the smaller hole (from inside
the enclosure) to secure it in place. A screwdriver
should reach through the groove that runs the
length of the guide to tighten the screw. The
second PCB guide should be positioned opposite
the first (groove facing up) and placed in the lower
insertion point, using the same procedures
described above. Once mounted, screw it in
securely.
3. The NX module should slide freely in the grooves
of both guides.
Installing Antennas
A number of antennas may be provided depending on the model purchased.
These include:
• Multi-antennas for legacy 433 63-bit, LoNa 80plus (NXG-4 only) and Z-Wave
• 4G antennas for Wi-Fi/cellular module
• Wi-Fi antennas for Wi-Fi/cellular module
