Connecting Inputs
ZeroWire has two general purpose inputs located on the rear of the unit. These can be
connected to up to 4 devices when Zone Doubling is enabled. Use the supplied header
cable.
To disable the inputs:
• Set System Menu -> General Options -> Disable Hardwired Sensors = ON
To enable 2 inputs:
• Set System Menu -> General Options -> Disable Hardwire zones = OFF
• Set System Menu -> General Options -> Panel Zone Doubling = OFF
• Set System Menu -> General Options -> Double EOL = ON for tamper monitoring,
or OFF for no tamper
To enable 4 inputs without tamper monitoring:
• Set System Menu -> General Options -> Disable Hardwire Sensors = OFF
• Set System Menu -> General Options -> Panel Zone Doubling = ON
• Set System Menu -> General Options -> Double EOL = OFF
IMPORTANT NOTES:
• If hard wired inputs are programmed as sensor 1, 2, 3, and/or 4, then these will take
priority over the wireless sensors.
• System Double EOL will take priority over Sensor EOL setting. If Sensor EOL is OFF
and Double EOL is on, Double EOL tamper monitoring will be active.
• Normally Open or Normally Closed state can be set in Zone Options -> Options.
Input/Output
Connector

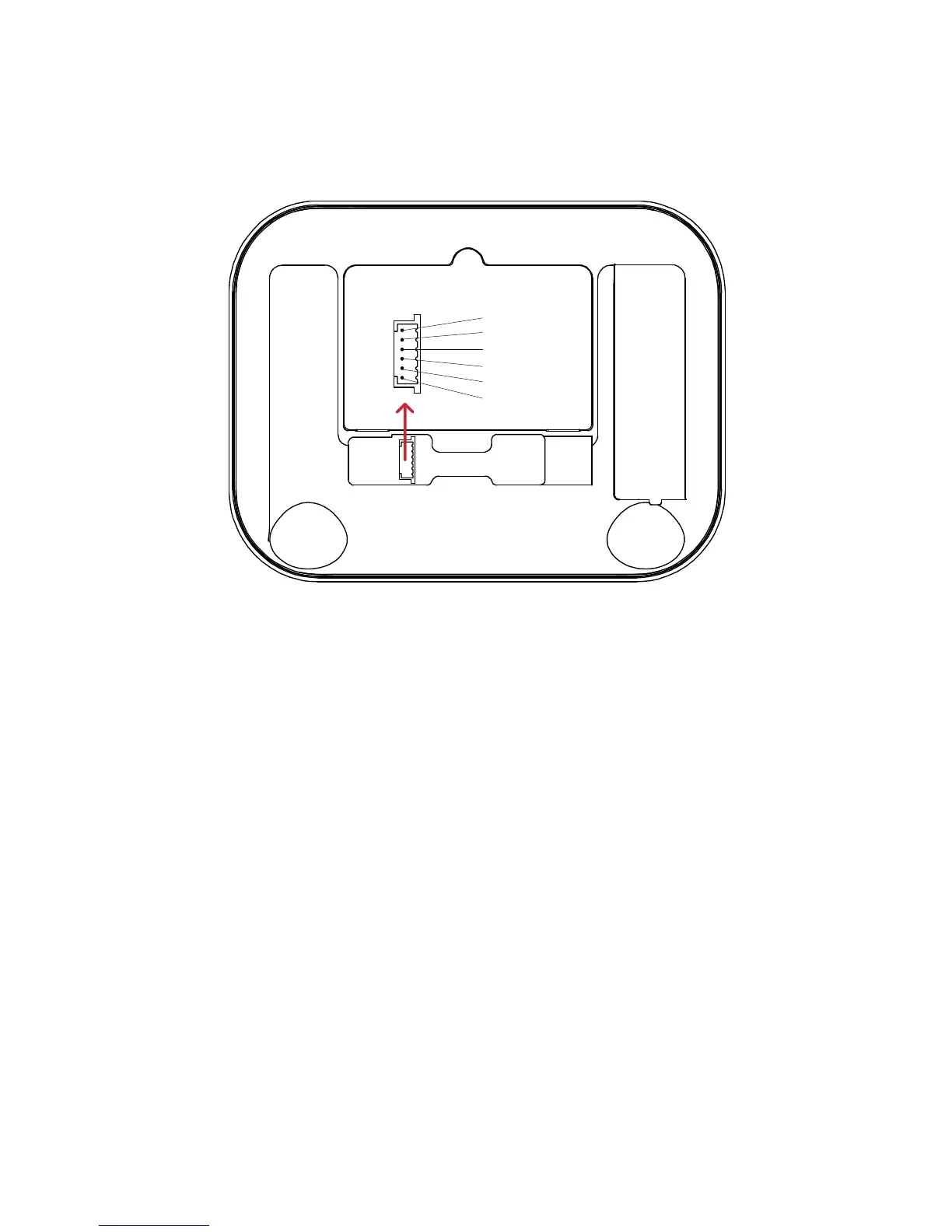

1. Ground
2. Input 1
3. Input 2
4. Output 1
5. Output 2
6. 8.5V+
Pin Outs
To Next Page
