34 Intermec EasyCoder PC4—Service Manual

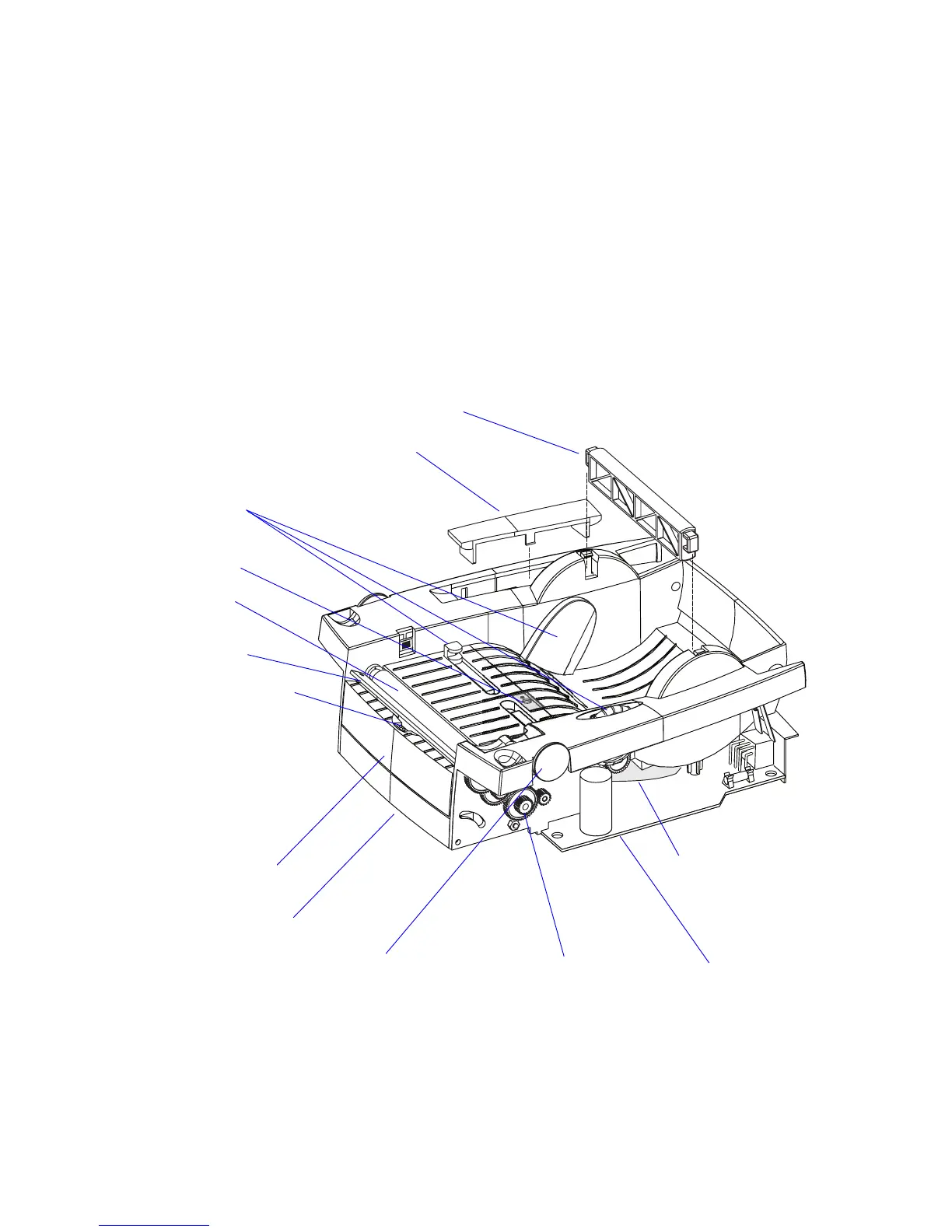

Chapter 5—Base Frame
Platen roller
Peel-off mechanism
(or Paper cutter)
Main board
Memory cartridge blind plate
Peel-off bar
Motor assy
Media guide assy
Base lock assy
5.1 Main Parts
e base frame consists of a plastic moulding to which a number of assem-
blies are fitted. e same base frame is used for both the DT and the TTR
models of the EasyCoder PC4.
Note that the 203.2 dpi (8 dots/mm) and the 300 dpi (11.81 dots/mm)
printers not only have different firmware versions and printheads, but also
different types of stepper motors. us, modifications of printing density
are not intended.
e optional paper cutter is normally factory-fitted, but could be field-
installed by an authorized service technician (see EasyCoder PC4 Cutter,
Installation Instructions). It replaces the standard peel-off mechanism.
Media spindle
Black mark/
Label gap sensor
Label taken sensor
Base frame moulding
Dust protection
sheet

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
