Chapter 3—Top Cover
e top cover is made up of the following parts:
• Top cover plastic moulding
• Clear plastic window (permanently glued to the moulding)
• Two media load instruction labels
• Tear-off plate (snap-locked to the moulding)
• Name plate (glued to the moulding)
3.2 Tear-Off Plate
e only part that can be replaced easily is the tear-off plate. It is provided
with two snap-lock tabs that engage bars at the inside of the top cover. Two
L-shaped rails hold the plate. If you need to remove the tear-off plate with
-
out discarding it, be careful not to break the tabs, which are quite delicate.

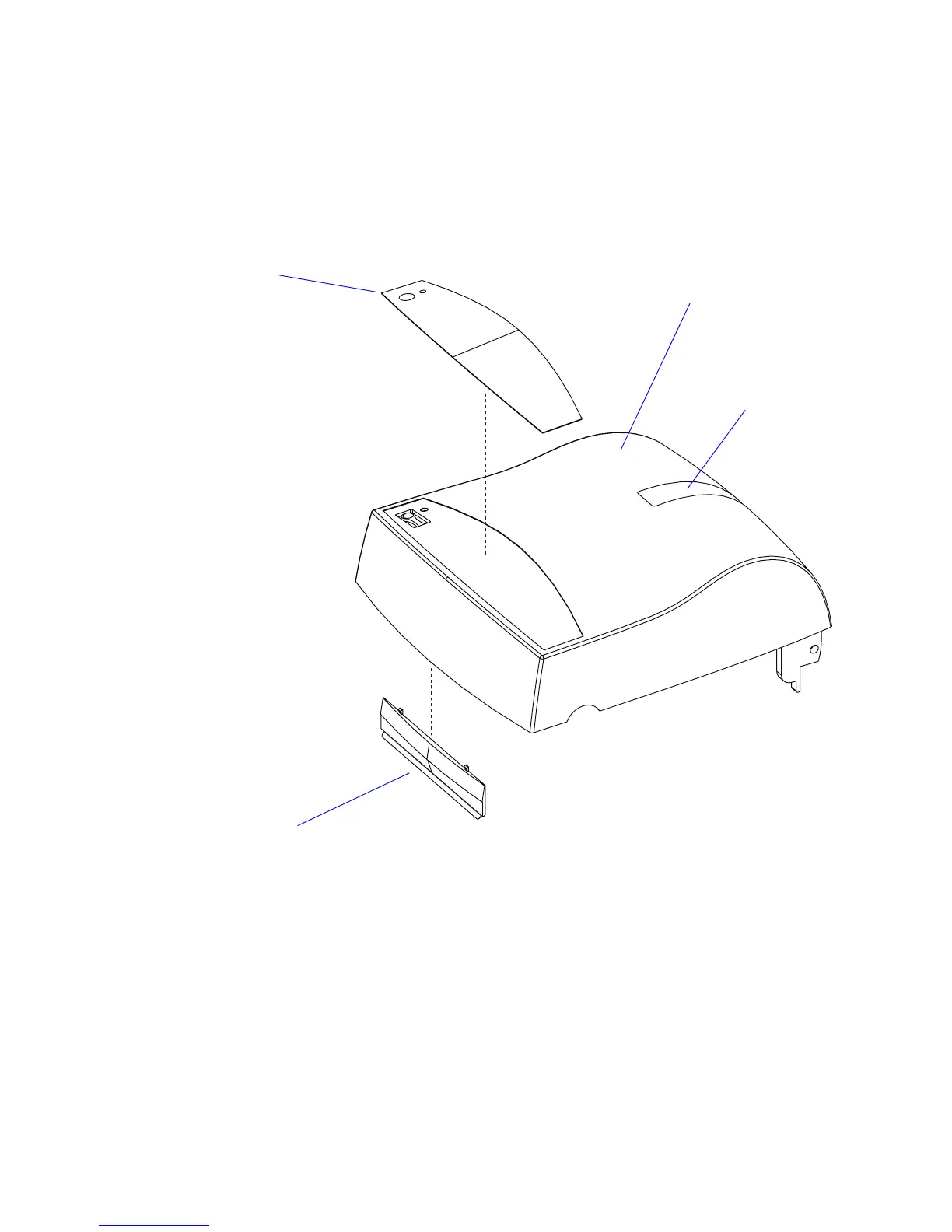

Top cover moulding
Clear window
Tear-off plate
Name plate

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
