Intermec EasyCoder PC4 Service Manual

18 Intermec EasyCoder PC4—Service Manual
Chapter 4—Print Frame
4.1 Description
e print frame comes in two versions; one for the DT model and another
for the TTR model. Both are based on the same plastic moulding. ey
both have either a 203.2 dpi (8 dots/mm) printhead or a 300 dpi (11.81
dots/mm) printhead.

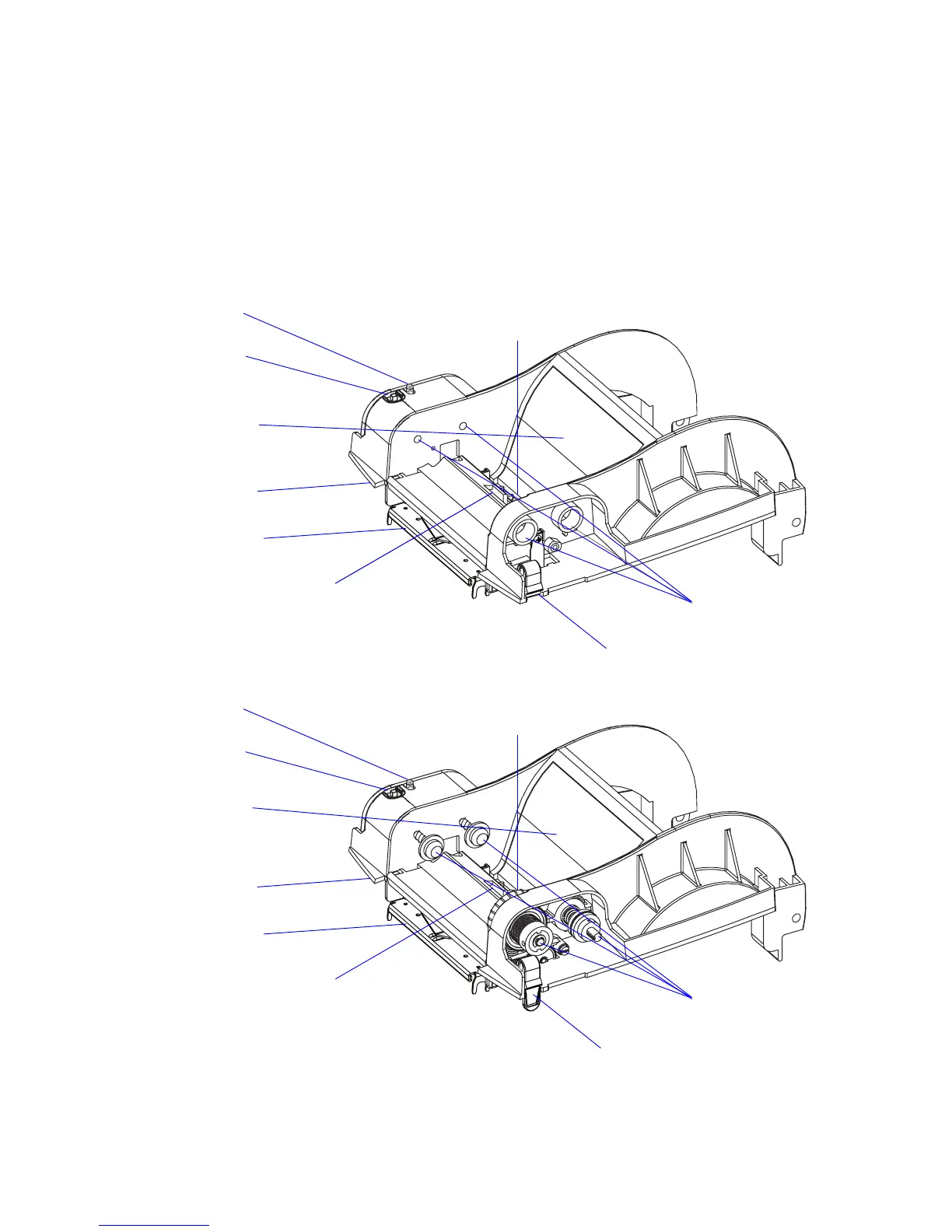

Direct Thermal (DT) Model
Thermal Transfer (TTR) Model
Print frame moulding
LED control lamp
Feed switch
(No ribbon load label)
(No transfer
ribbon mechanism)
(No ribbon end sensor)
Short top cover locks
Print frame moulding
LED control lamp
Feed switch
Ribbon load label
Transfer
ribbon mechanism
Ribbon end sensor
Long top cover locks
Printhead
Printhead
Label gap sensor
(Emitter)
Label gap sensor
(Emitter)

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
