Intermec EasyCoder PC4 Service Manual

2 Intermec EasyCoder PC4—Service Manual
Chapter 1—Models and Options
1.1 Models
ere are two main models of the EasyCoder PC4; one dedicated direct
thermal (DT) model and one dual-capable direct thermal/thermal transfer
(TTR) model. Both models are based on a common double clam-shell
mechanical platform and have the same type of electronics, so except from
the fact that the direct thermal model has no transfer ribbon mechanism,
there are very few differences.
Both models are available with two different printheads; one with a density
of 203.2 dots per inch (8 dots per mm) and a maximum print width of 4.1
inches (104 mm), and another with a density of 300 dots per inch (11.81
dots per mm) and a maximum print width of 4.02 inches (102.2 mm).
Since there is no need to open the top cover in the DT model, the top
cover locks are cut off in flush with the bottom of the print frame.
e machine label, which provides information on model, part number,
serial number, etc. is attached to the bottom of the base frame.
e EasyCoder PC4 has a separate power supply unit that delivers 24
VDC to the printer's main board, where it is transformed to the various
voltages required by the printhead, motor, and logics (see Chapter 8.1).

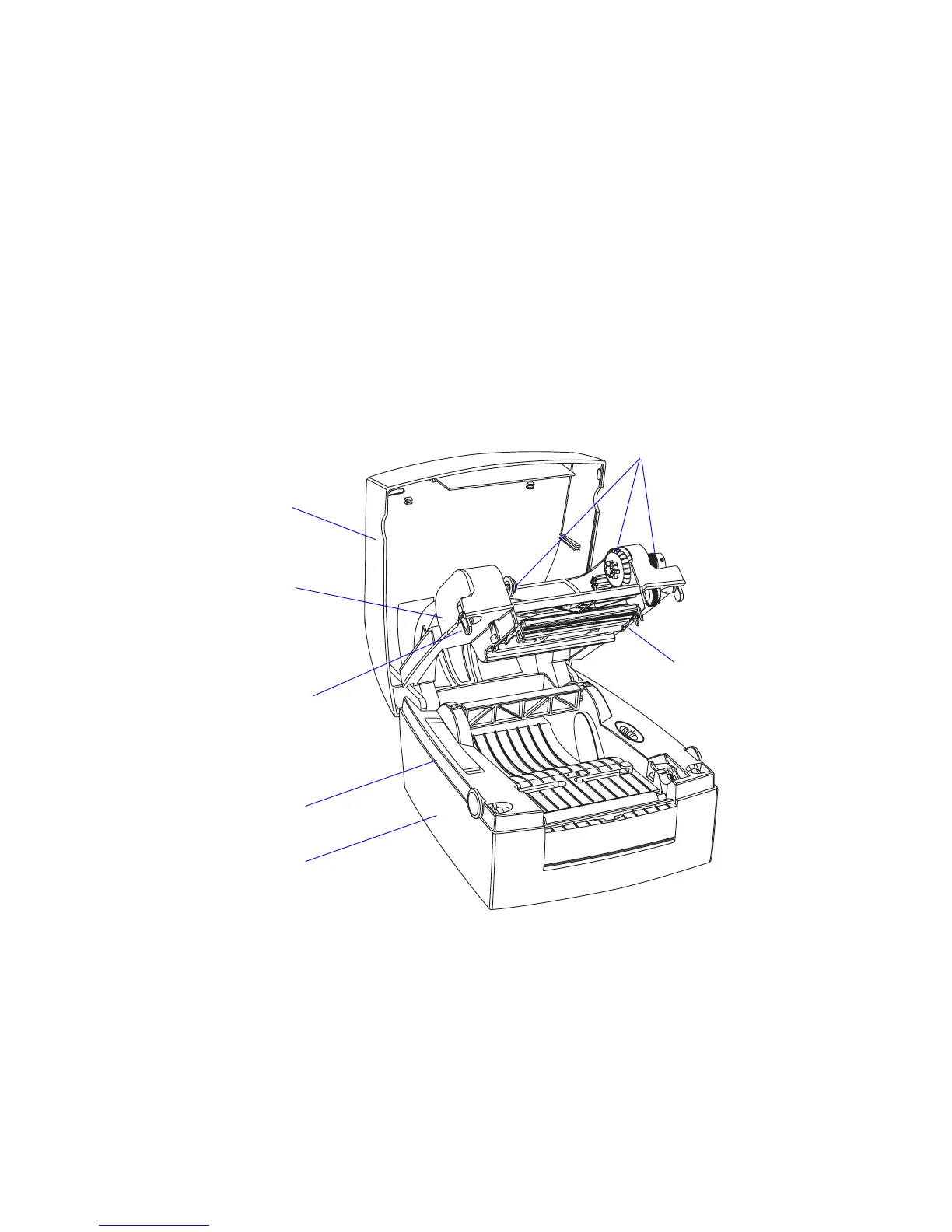

Thermal transfer
mechanism
(omitted in DT model)
Printhead
Top cover locks
(differ in DT and
TTR models)
Print frame
Top cover
Base Frame
Bottom Cover

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
