Chapter 3—Top Cover
3.1 Description
e top cover encloses the print frame. It is attached to the base frame
using the same pair of bolts and E-rings as the print frame. e top cover
and the print frame opens together when the base locks on either side of
the printer are pressed. en the top cover can be released from the print
frame by pressing the two green locks at either side of the print frame, as
shown below. Note that in case of a PC4 DT printer, the locks are cut off
and you will need to insert a flat screwdriver or similar to release the locks.

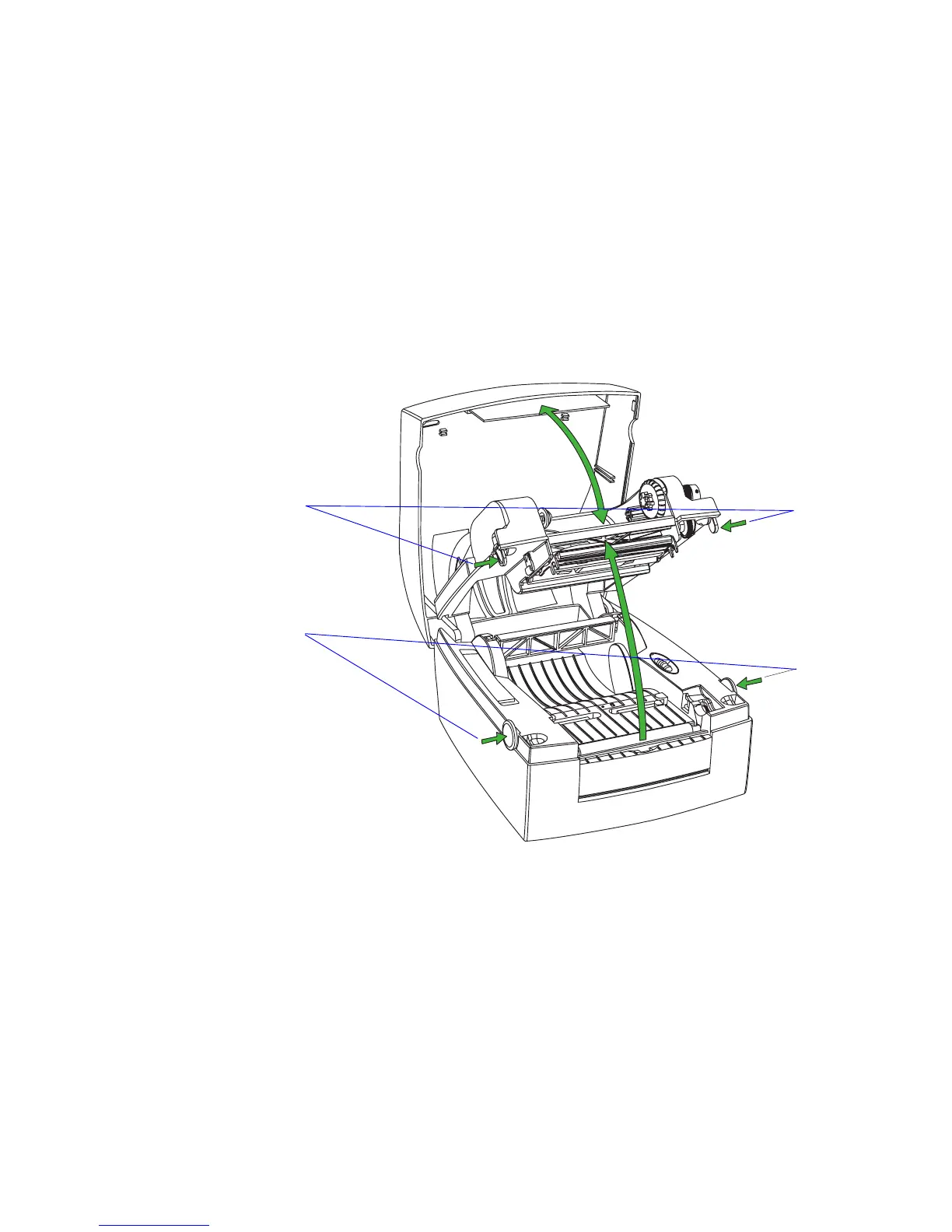

Base locks
Top cover locks
