Intermec EasyCoder PC4 Service Manual

Intermec EasyCoder PC4—Service Manual 45
Chapter 5—Base Frame
1 inch
25.4 mm
!
5.9 Media Spindle
Description

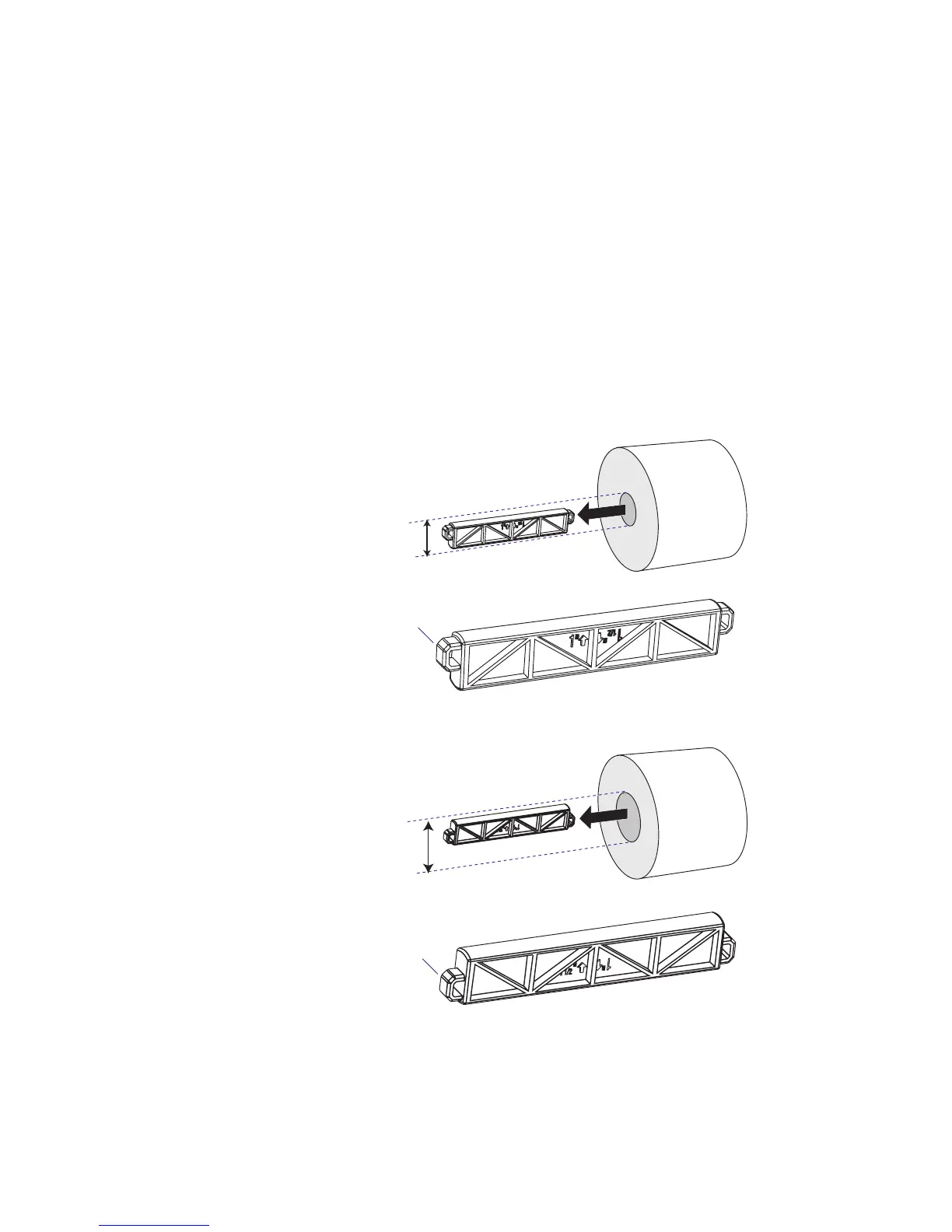

e media spindle holds the media roll during printing. It is snap-locked
between the two crescent-shaped extensions on the base frame moulding
on either side of the media supply cavity.
e media spindle can be rotated to fit media cores with an inner diam
-
eter of either 25.4 mm (1 inch) or 38.1 mm (1.5 inches). Text and arrows
moulded into the spindle indicate core size in millimeters on one side and
inches on the other.
As an alternative to using a media supply roll on the spindle, fan-folds or
similar can be routed from an external supply behind the printer and into
the media cavity through a slot in above the printer's rear plate.
1.5 inch
38.1 mm
!

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
