Chapter 14—Troubleshooting
14.1 Error Handling
When an error occurs, the Error LED goes solid or fl ashing red and the

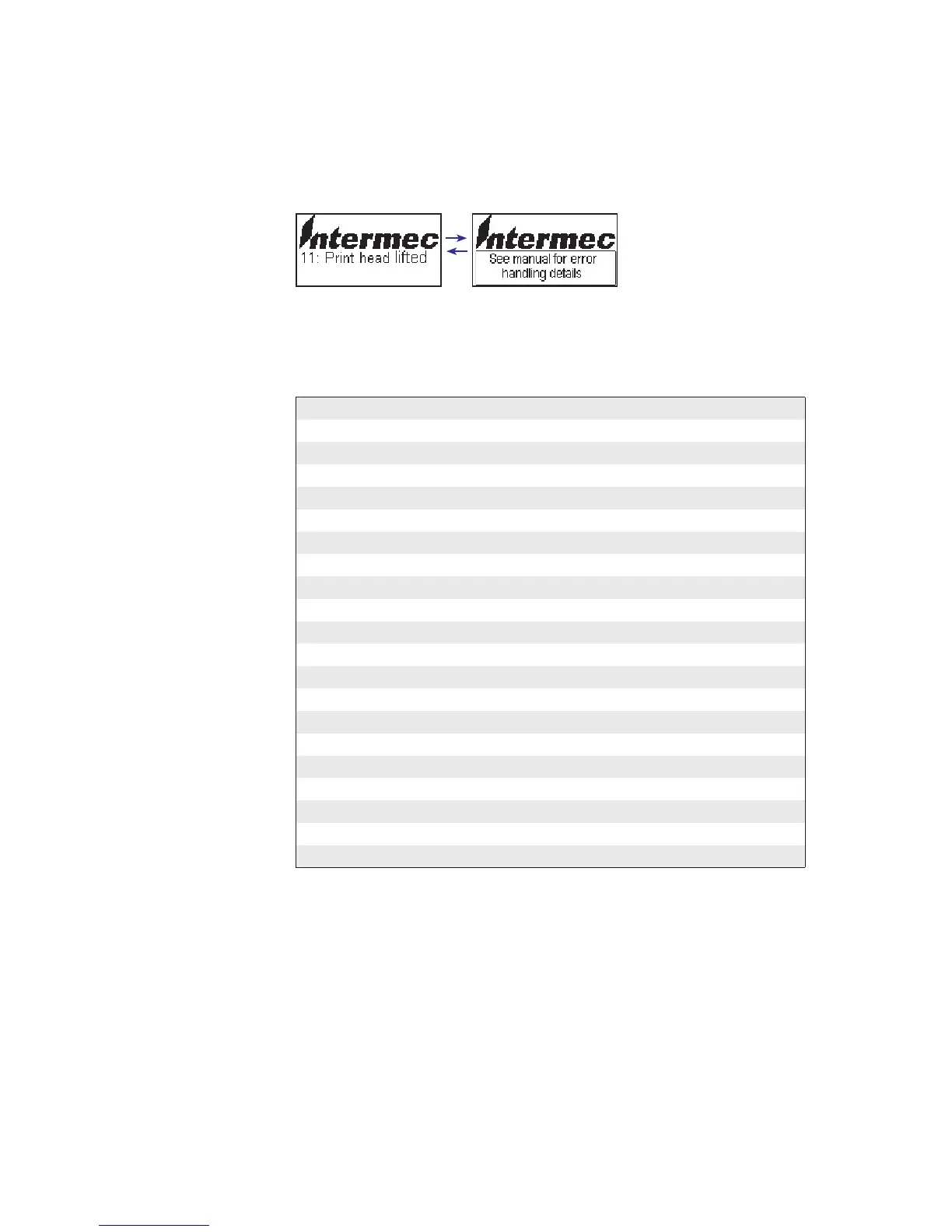

beeper emits two beeps. Provided the printer is fi tted with a display, two
error message are displayed alternatingly, for example:
When all errors have been cleared, the Error LED goes off, the beeper
emits a single beep, and the printer returns to the same mode as when the
error occurred, which is indicated in the display window.
The printer’s error-handler can manage the following errors:
Description/Display Message Action
01: Syntax error Press the Feed key
02: Object exceeds image buffer border Press the Feed key
03: Data length error Press the Feed key
04: Insuffi cient memory to store data Press the Feed key
05: Memory confi guration error Press the Feed key
07: Out of media Load new supply of media
08: Form or image name duplicate Press the Feed key
09: Form or image not found Press the Feed key
11: Print head lifted Close the printhead
13: Label taken sensor waiting Remove label
15: Rewinder is full Remove wound-up liner
16: No form was retrieved before ‘?’ Press the Feed key
17: Out of ribbon Load new supply of ribbon
50: Does not fi t in area specifi ed Press the Feed key
51: Data length too long Press the Feed key
62: High print head temperature (WAIT) Wait for printhead to cool off
71: Default Setup retrieved (RESET) Switch power off/on or send ^@ cmd
72: Flashing not completed (RESET) Switch power off/on or send ^@ cmd
73: Download error (RESET) Switch power off/on or send ^@ cmd
81: Cutter jammed or not installed Clear media from cutter or disable cutter
