Intermec EasyCoder PD4—Service Manual 11
Chapter 2—Front Panels
2.4 Bottom Right-Hand Panel

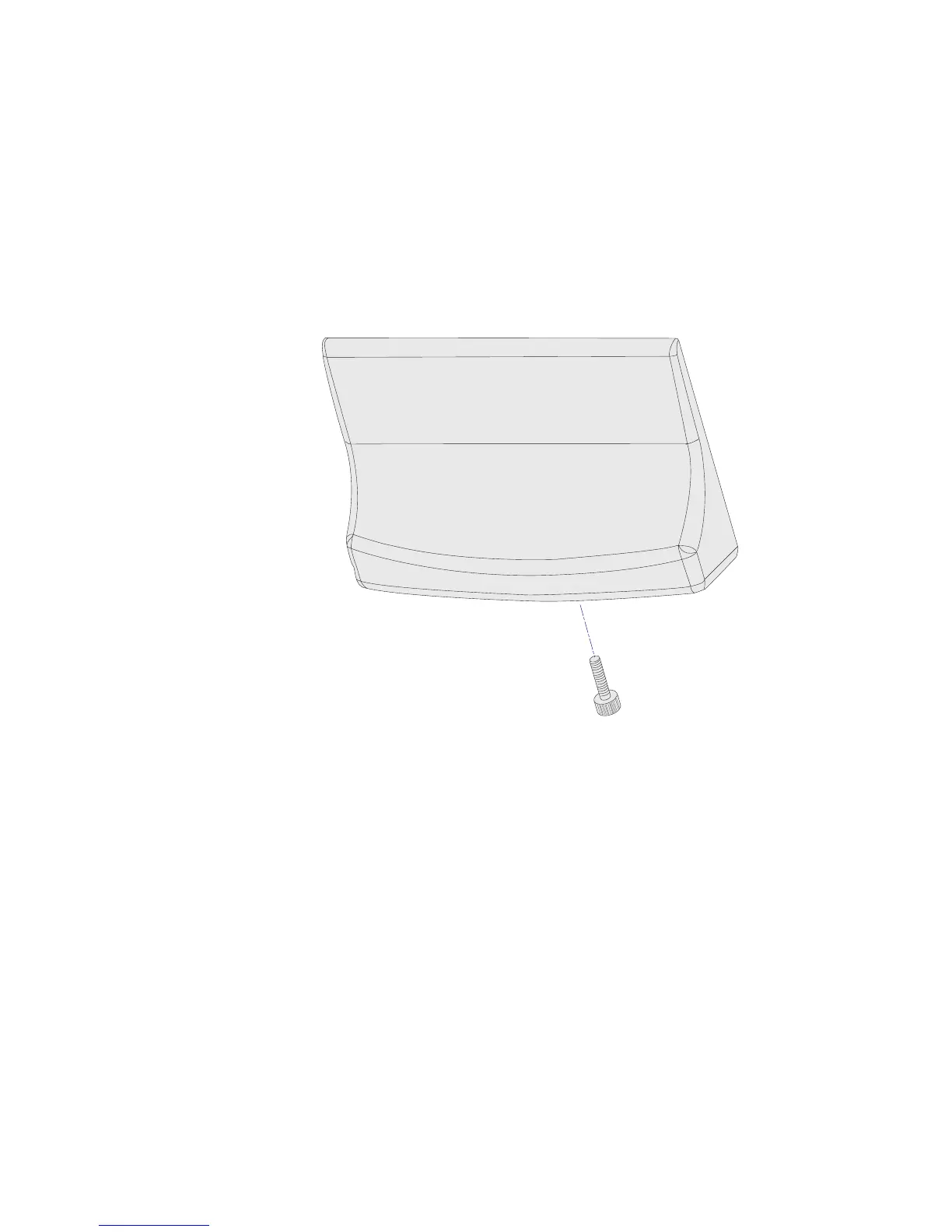

Description
All models have a panel fi tted to the bottom plate in front of the print
mechanism. This panel is temporarily removed when loading media for
peel-off (self-strip) operation in connection with an optional rewinder (see
Chapter 8). It must be permanently removed before installing an optional
cutter, see Chapter 10. The panel is held by a knurled screw inserted from
beneath the bottom plate.
